Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Locking Feature | None |
|---|---|
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size | M20 mm (0 in) |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | M20X2.5 mm |
| Bolt Length | 70 mm (2.756 in) |

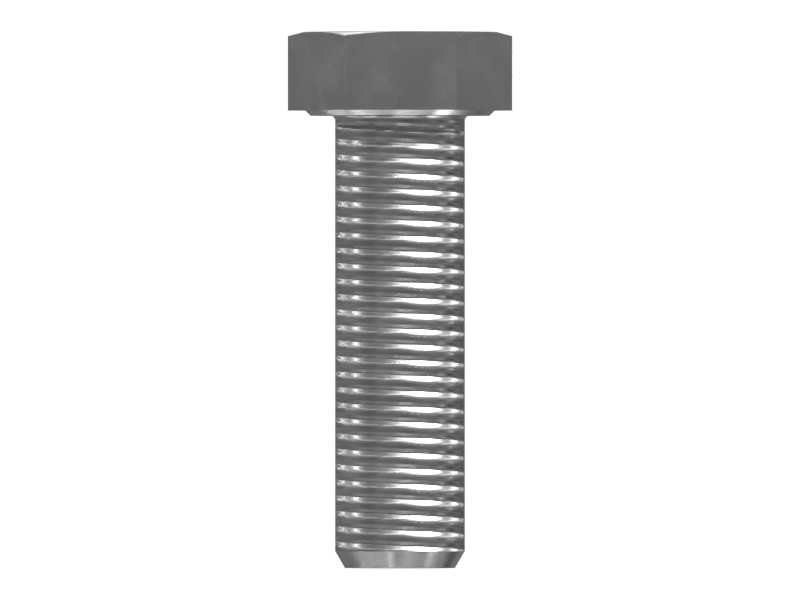

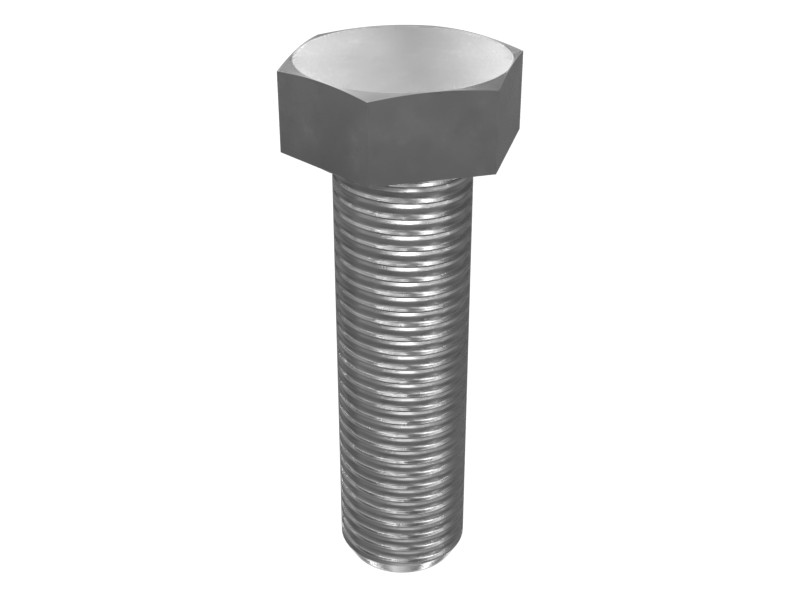

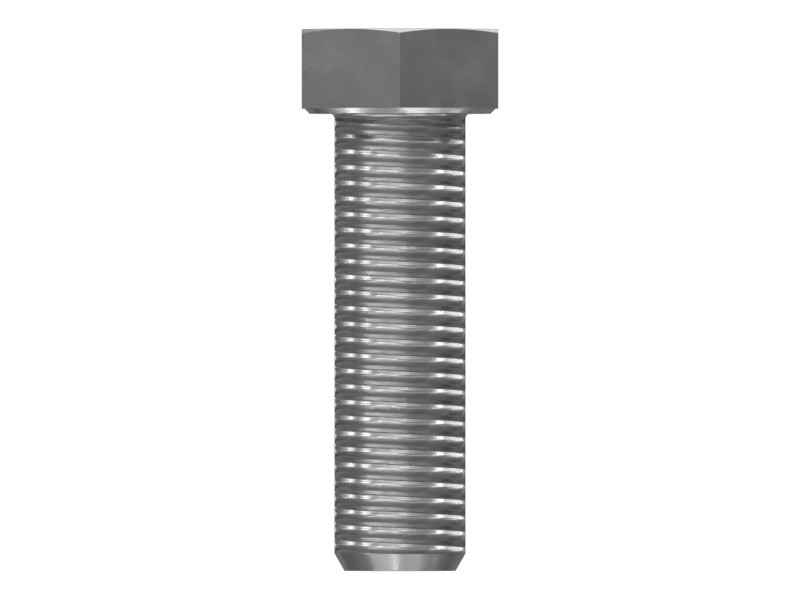

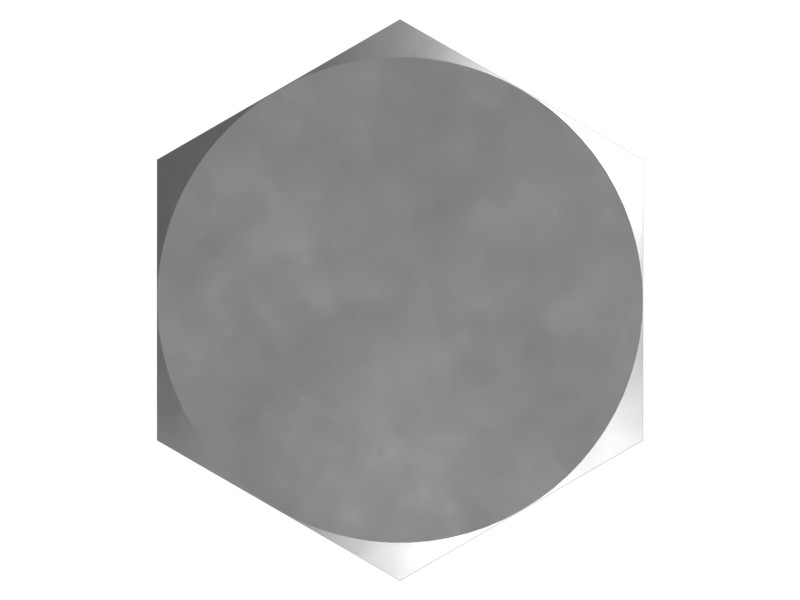

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 8 mm (0.295 in) |
Compatible Equipment
- Motor Graders: 349 GC
- Excavators: 349F L, 374, 328D LCR, 326GC, 336 GC, 323, 374F L, 345D L, 390F, 345C, 349D L, 349, 349E L, 349E L VG, 365C L, 352F, 365C, 352, 345C L, 390D, 335, 340, 345 GC, 395, 336, 326, 350, 355, 333, 330 GC, 320, 335F LCR, 330GC, 349E, 3101, 325, 325B L, 345D, 330, 390F L, 374D L, 349D2, 390D L, 374F, 349D2 L, 349D
Additional information
| Machine Model | 3101, 320, 323, 325, 325B L, 326, 326GC, 328D LCR, 330, 330 GC, 330GC, 333, 335, 335F LCR, 336, 336 GC, 340, 345 GC, 345C, 345C L, 345D, 345D L, 349, 349 GC, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 350, 352, 352F, 355, 365C, 365C L, 374, 374D L, 374F, 374F L, 390D, 390D L, 390F, 390F L, 395 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
