Description

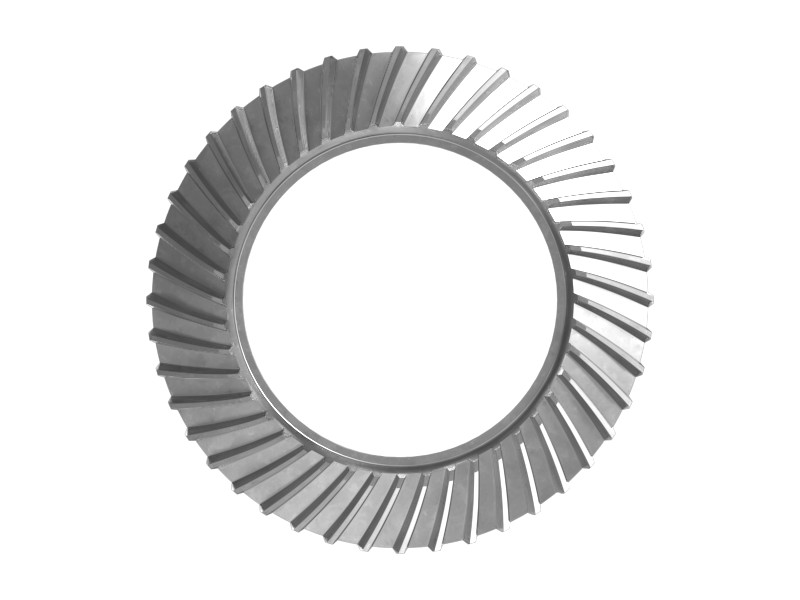

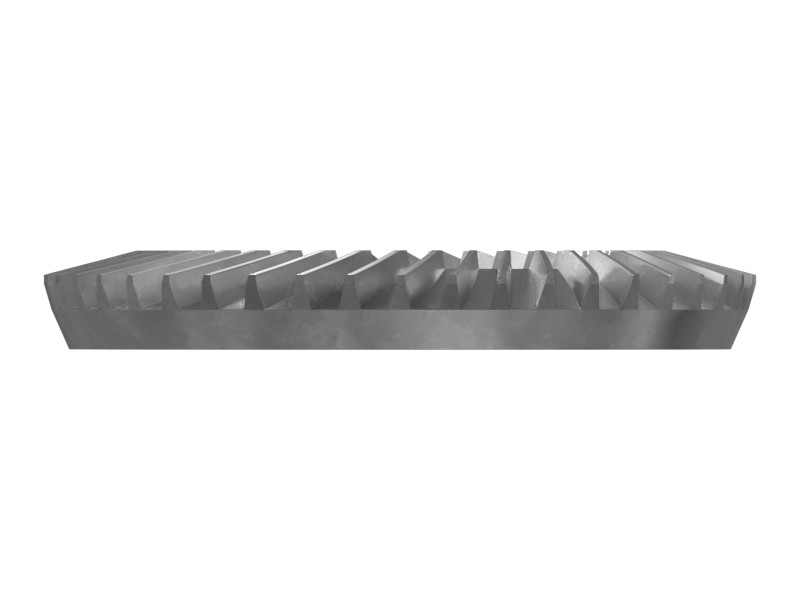

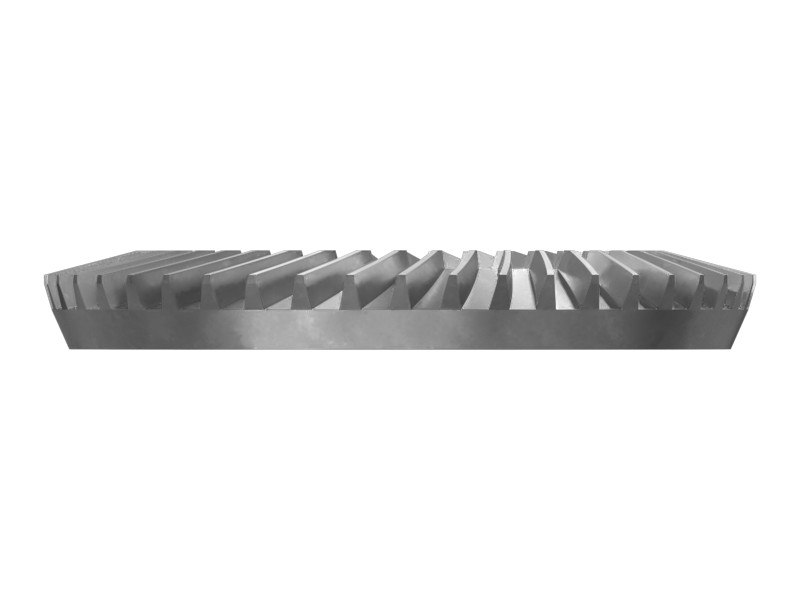

Bevel gear used in the differential system to transmit power from the drive shaft to the axle shafts.
Features
- Material: Steel
- Spiral Bevel Gear Teeth: 44
- Helix Direction: Right
- Cat® final drive gears are designed to maximize system performance and extend balanced system life. Cat final drive gears are produced through metallurgy, heat treatment, tooth profile, and surface finishing processes that maximize the life of mating gears and ensure the final drive maintains optimal performance
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Steel |
|---|---|
| Number of Teeth | 44 |
| Outside Diameter | 480 mm (18.897 in) |
| Inside Diameter | 298.425 mm (11.749 in) |
| Height | 66.28 mm (2.609 in) |
Compatible Equipment
- Track Loaders: 826G
- Wheel Loaders: 980G, 980H, R1700G
- Asphalt Pavers: AD30
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
