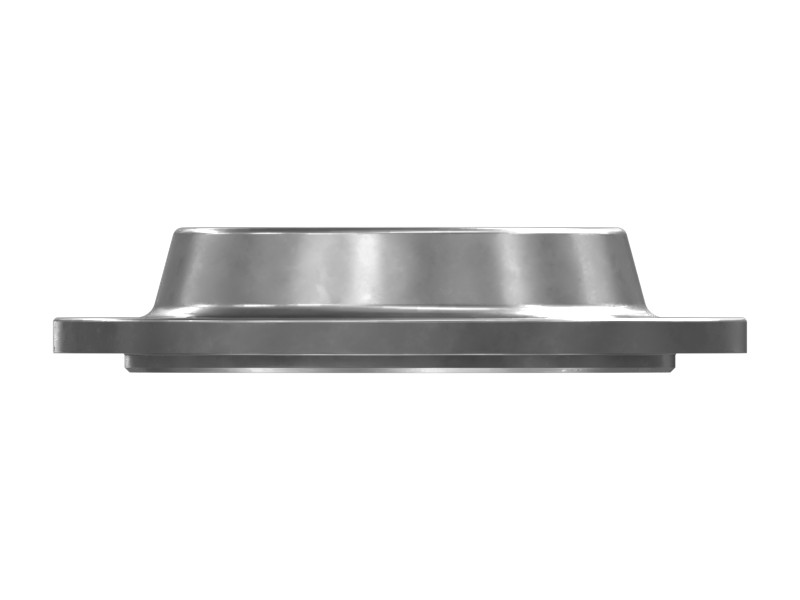

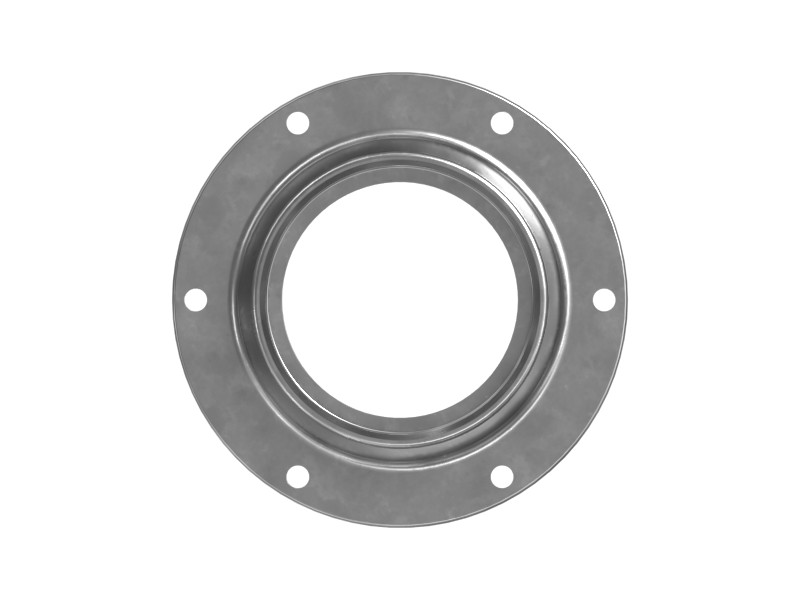

Description
The retainer is used to hold the component in the correct application position. The strong, durable construction and material ensure a long service life.
Features
Cat parts are built to exact specifications for durability, reliable performance, efficiency and environmental friendliness, and are reusable.
- Material: Die-Cast Aluminum
Applications
- Retainers are used, among other purposes, to position and secure the reaction hub on the spindle in the final drive assembly, and to position and secure the bearing on the wheel spindle in the wheel and brake assembly.
- Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Aluminum |
|---|---|
| Coating | Not Specified |
| Outside Diameter | 216 mm (8.504 in) |
| Inside Diameter | 112 mm (4.409 in) |
| Overall Length | 45 mm (1.772 in) |
| Hole Size | 11 mm (0.433 in) |
| Fits Bolt Size | M10 X 1.5 mm (3/8-16 in) |
Compatible Equipment
- Track Loaders: 826K, 824C, 826G, 824G, 826H, 982
- Compactors: 825K, 824K
- Wheel Loaders: 982M, 980M
- Asphalt Pavers: AD30
