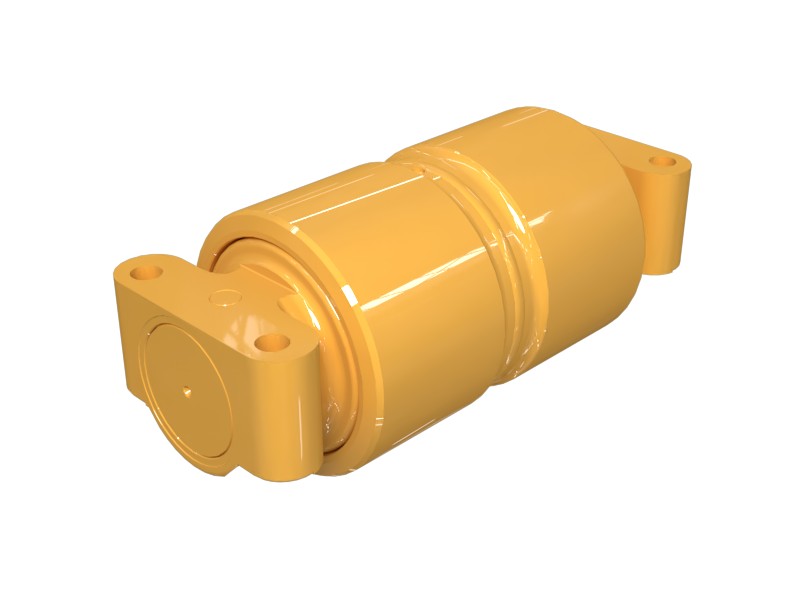

3T-4618 Carrier Roller Assembly
Carrier Roller
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Carrier rollers support and guide the machine on the track and provide track tension support.
Specifications
| Material | Oil Fluid |
|---|---|
| Mounting Type | Cantilever |
| Undercarriage System | HD |
| Application | Standard Application |
| UC System – Designed For | Heavy Duty |
| Shaft Outside Diameter | 52.32 mm (2.06 in) |
| Tread Outside Diameter | 133.5 mm (5.256 in) |
| Inside Spacing | 40.4 mm (1.591 in) |
| Flange Outside Diameter | 168.47 mm (6.633 in) |
| Outside Spacing | 127 mm (5 in) |
| Shaft Mounting Length | 87.65 mm (3.451 in) |
Additional information
| Part Source | Genuine OEM |
|---|
