Description

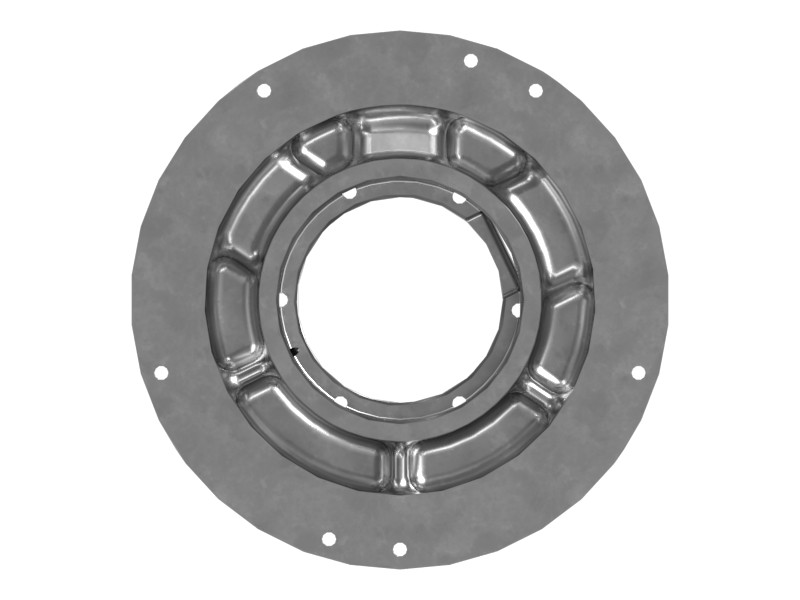

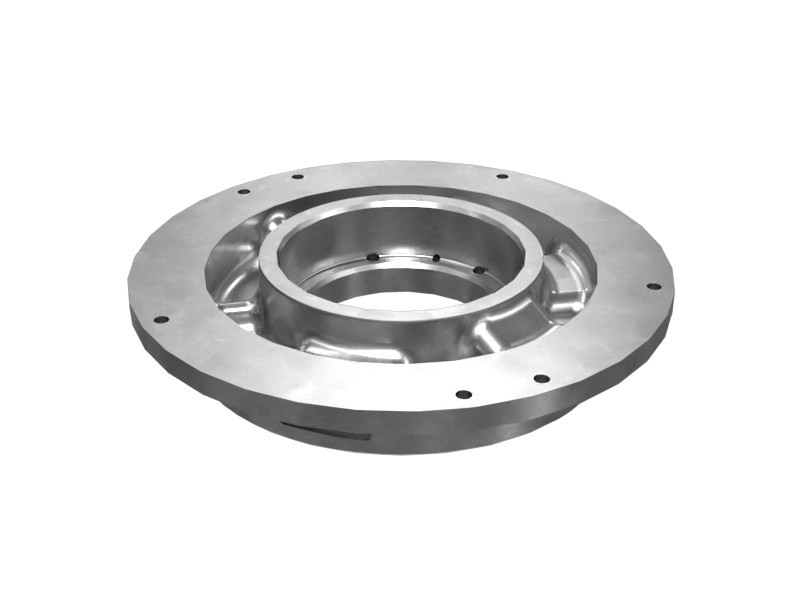

Clutch manifolds (for example 3T-3062) contain oil passages that allow hydraulic oil to flow to the clutch seal ring area to lower seal ring temperature and extend the life of the transmission planetary gears.
Powertrain components must withstand extremely high torque, high shock loads, and frequent directional shifts. Cat designs and builds transmission and final drive components with these demands in mind, ultimately improving the durability and performance of the powertrain over the life of the machine.
Features
- Cast iron clutch manifold
- Thread size: 3/8-16, 13 places
- Outside Diameter: 300 mm (11.81 in)
- Inside Diameter: 115.014 mm (4.53 in), lip seal bore
- Bearing Bore Diameter: 134.98 mm (5.31 in)
- Mounting pilot diameter: 238 mm (9.37 in)
- Width: 56 mm (2.20 in)
- Cat parts are built to exact specifications and are durable, reliable, efficient, environmentally friendly and reusable.
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Outside Diameter | 300 mm (11.81 in) |
|---|---|
| Pilot OD | 238 mm (9.37 in) |
| Inside Diameter | 115 (Lip Seal Bore) mm (4.53 (Lip Seal Bore) in) |
| Hole Diameter | 135 (Bearing Bore) mm (5.31 (Bearing Bore) in) |
| Width | 56 mm |
| Thread Size | 3/8-16 (13X) in |
Compatible Equipment
- Generator Sets: C4.4, 3512B
- Excavators: 3512C
- Off-Highway Trucks: 777D, 777E, 777
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
