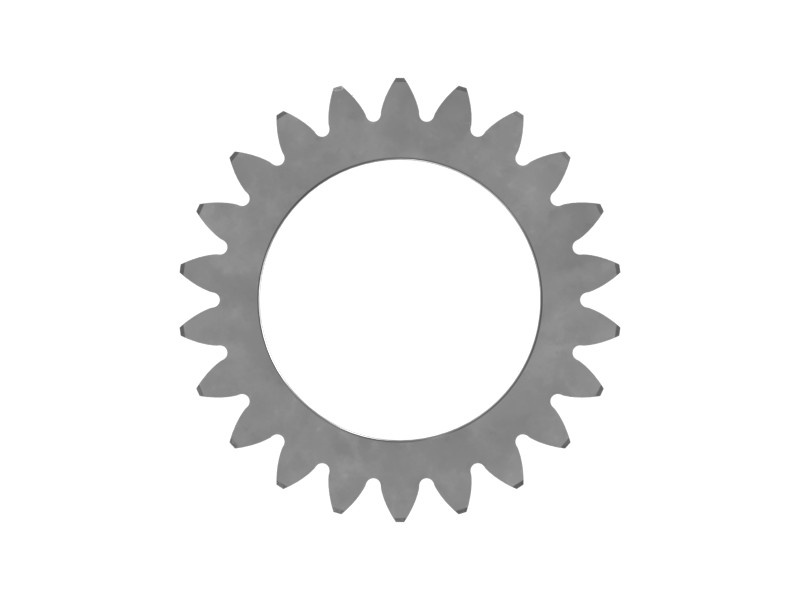

Description
Spur gears are the most common gear type, consisting of a cylinder or disc with teeth projecting straight outward. In addition, spur gears typically look the same from both sides because the gear teeth are straight from one side to the other.
Features
- Material: Steel
- Spur Gear Teeth: 22
- Cat gears are machined from premium materials to strict specifications that match the loads Cat machines carry. They are made using special (in some cases proprietary) heat treatment processes, including case carburizing, nitriding, and induction hardening. Cat gears have the highest power density in the industry (the power a gear can transmit relative to its size) and are designed with reusability in mind. As a result, they are more durable and effectively lower overall machine operating costs.
Applications
Cat gears are built for specific applications and designed to ensure all powertrain parts operate as a whole and withstand wear. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Low Alloy Steel |
|---|---|
| Material Description | Steel |
| Outside Diameter | 91.67 mm (3.609 in) |
| Inside Diameter | 58.298 mm (2.295 in) |
| Height | 38.23 mm (1.505 in) |
Compatible Equipment
- Dozers: D10R
