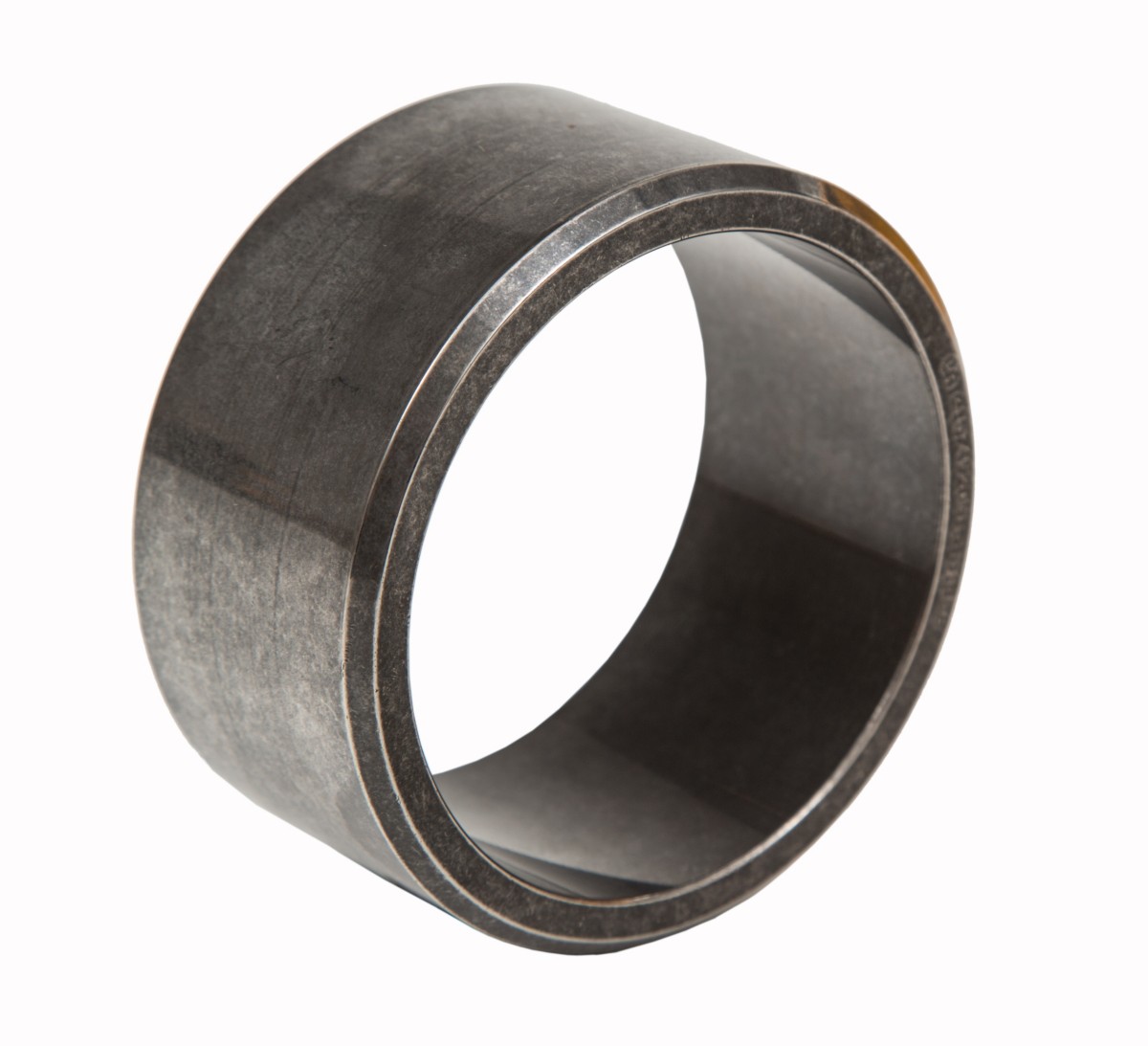

3P-8845 225.791 mm OD Sleeve Bearing
Cat® 225.791 mm OD 100 mm long sleeve bearing for track roller frames and main frames
Description
Cat® machine linkage sleeve bearings support pivoting between the frame, linkage and work tools. These components are most commonly used in machine booms and buckets. Genuine Cat pins and sleeve bearings are specially designed to work together as a system to deliver the performance you expect. Caterpillar design engineers match each part with the right combination of size, material, surface treatment and manufacturing process so it works effectively and wears in step with all other adjacent and dependent parts.
Features
Cat heavy-duty sleeve bearings are made from advanced bronze and hardened for exceptional hardness and wear life. These components work as a system on specific Cat machines and are tested and proven in the world's toughest applications. These bearings provide longer lubrication intervals and excellent friction resistance, even under high-load conditions.
Recommended Applications:
Cat sleeve bearings are designed for situations that require durability and load strength to extend bearing life. Cat sleeve bearings are the first choice for maximizing performance in demanding applications. They are designed to match mating pins.
Specifications
| Approximate Inside Diameter | 200 mm |
|---|---|
| External Groove | Yes |
| Internal Groove | None |
| Approximate Overall Length | 100 mm |
| Approximate Outside Diameter | 226 mm |
| Cross Hole | None |
| Unique Features | No |
| Ferrule Inside Diameter | 213.8 mm (8.417 in) |
| Ferrule Outside Diameter | 225.791 mm (8.889 in) |
| Inside Diameter | 200 mm (7.89 in) |
| Outside Diameter | 226 mm (8.89 in) |
| Overall Length | 100 mm (3.94 in) |
Compatible Equipment
- Dozers: D8L, D9L, D9R, D9N, D9T, D9
