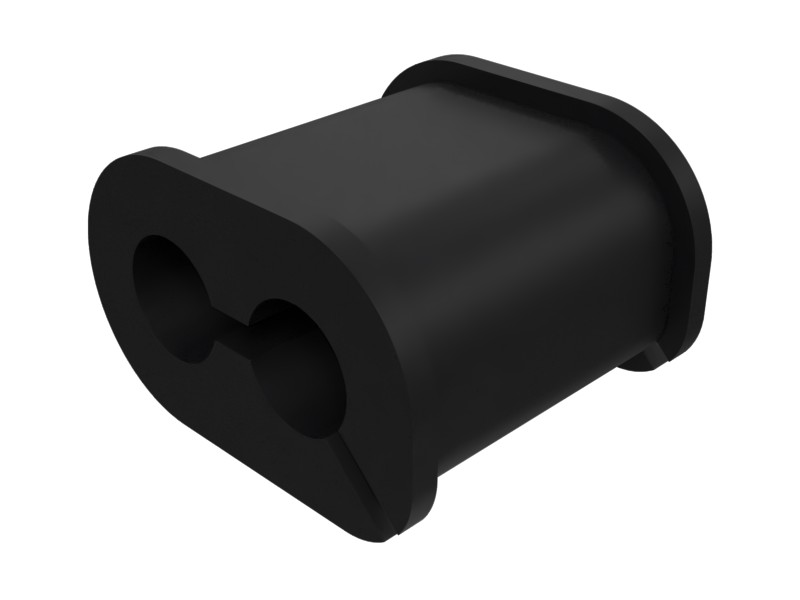

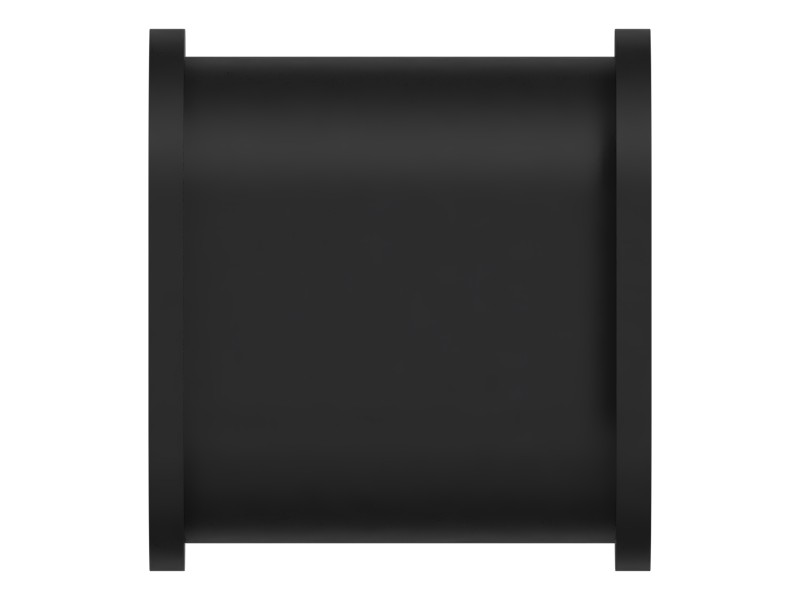

3G-8047 Hydraulic Hose Harness Rubber Double Grommet

Description

This grommet is made of high-quality rubber to protect the environment in which the equipment is located, and is used to prevent hoses and cables from contacting metal, avoiding damage to these components (vibration) and avoiding rubbing against surrounding structures (vibration, shock, noise).

Features

Has rubber flaps flaring outward on both sides of the material to hold the rubber in place.
Durable, but its service life can be affected by a number of factors.

Applications

The rubber grommet is used for the wiring harness and hydraulic hoses on the pulley pin and tilt cylinder.

Specifications

Groove Width – A	62 mm (2.44 in)
Length	72.0 mm (2.83 in)
Height	48 mm (1.88 in)
Material Description	Rubber
Material	Ethylene propylene diene terpolymer (EPDM) Rubber
Thickness	72 mm (2.83 in)
Type	Split
Width	76 mm (3.07 in)

Compatible Equipment

Generator Sets: C9, 3512B, 3516C
Track Loaders: 972, 963
Cold Planers: PL87, PL83, PL72
Engines: C27, C15, C32
Excavators: 390D L, 308D, 336D, 306E2, 308E, 313 GC, 313, 330D L, 352, 6015B, 416E, 3508B, 320C, 6015, 312C, 657G, 3516B, 621H, 621G, 6020B, 345C L, 637E, 345C, 390D, 3512C, 385B
Asphalt Pavers: AD63
Skid Steer Loaders: 24
Motor Graders: 18, 120, 16M, 16M3, 16, 316F
Wheel Excavators: M315, MD6310, MD6250, MD6200, M315GC
Dozers: D7, D8, D6T LGP, D1, D11R, D11T, D11, D10T2, D10R, D10N, D10T, D3K2 LGP, D6R, D6T, D6R II, D5H, D8R, D6R III, D6R LGP, D10, D7G, D6N, D8T, D6R XL, D7E, D5K2 XL, D7R, D9N
Mini Excavators: 305.5E2, 305.5E, 307B, 305.5 GC, 307C
Wheel Loaders: 966, 950 GC, 938K, 966K, 938M, 972H, 988K, 966H, 924K, 926M, 950
Off-Highway Trucks: 793, 777, 735, 773, 794 AC, 773F, 793D, 789, 797F, 785, 796 AC, 798 AC, 773E, 777E, 785D, 730, 740B, 740, 775G, 793F, 777D, 725, 773D, 745

Machine Model	120, 16, 16M, 16M3, 18, 24, 305.5 GC, 305.5E, 305.5E2, 306E2, 307B, 307C, 308D, 308E, 312C, 313, 313 GC, 316F, 320C, 330D L, 336D, 345C, 345C L, 3508B, 3512B, 3512C, 3516B, 3516C, 352, 385B, 390D, 390D L, 416E, 6015, 6015B, 6020B, 621G, 621H, 637E, 657G, 725, 730, 735, 740, 740B, 745, 773, 773D, 773E, 773F, 775G, 777, 777D, 777E, 785, 785D, 789, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 924K, 926M, 938K, 938M, 950, 950 GC, 963, 966, 966H, 966K, 972, 972H, 988K, AD63, C15, C27, C32, C9, D1, D10, D10N, D10R, D10T, D10T2, D11, D11R, D11T, D3K2 LGP, D5H, D5K2 XL, D6N, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7, D7E, D7G, D7R, D8, D8R, D8T, D9N, M315, M315GC, MD6200, MD6250, MD6310, PL72, PL83, PL87
Equipment Type	Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Asphalt Pavers, Cold Planers, Engines, Generator Sets
Part Source	Genuine OEM

Machine Model

120, 16, 16M, 16M3, 18, 24, 305.5 GC, 305.5E, 305.5E2, 306E2, 307B, 307C, 308D, 308E, 312C, 313, 313 GC, 316F, 320C, 330D L, 336D, 345C, 345C L, 3508B, 3512B, 3512C, 3516B, 3516C, 352, 385B, 390D, 390D L, 416E, 6015, 6015B, 6020B, 621G, 621H, 637E, 657G, 725, 730, 735, 740, 740B, 745, 773, 773D, 773E, 773F, 775G, 777, 777D, 777E, 785, 785D, 789, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 924K, 926M, 938K, 938M, 950, 950 GC, 963, 966, 966H, 966K, 972, 972H, 988K, AD63, C15, C27, C32, C9, D1, D10, D10N, D10R, D10T, D10T2, D11, D11R, D11T, D3K2 LGP, D5H, D5K2 XL, D6N, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7, D7E, D7G, D7R, D8, D8R, D8T, D9N, M315, M315GC, MD6200, MD6250, MD6310, PL72, PL83, PL87

Equipment Type

Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Asphalt Pavers, Cold Planers, Engines, Generator Sets

Part Source

Genuine OEM
