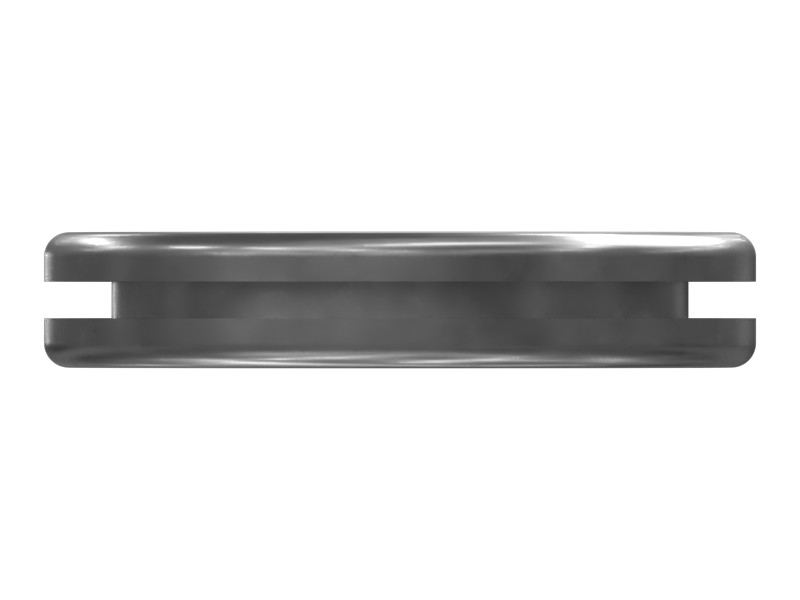

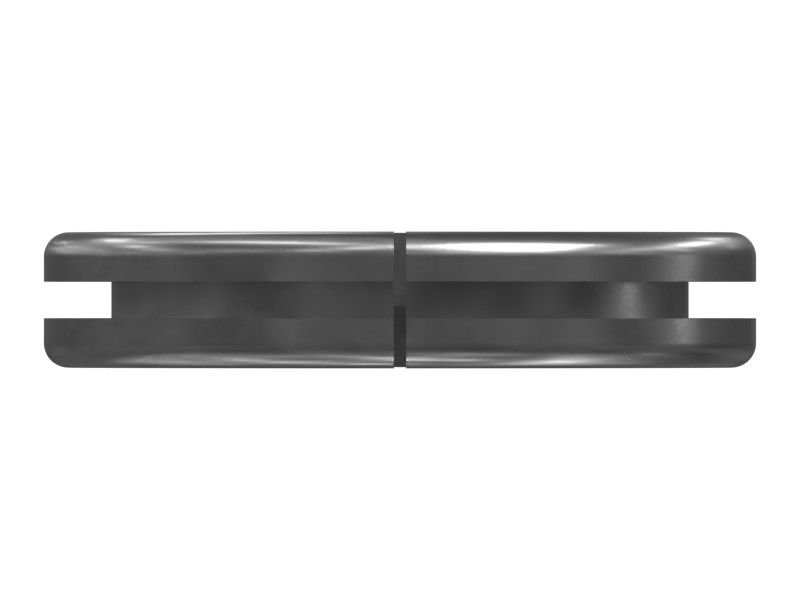

170-9360 11 mm Thick Housing Rubber Grommet
Cat® 11 mm Thick Housing Rubber Grommet
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The grommet is a ring or edging strip inserted through a thin material (typically sheet metal or carbon fiber composite) into a hole. Grommets typically have a flare or collar on each side to keep them in place and are usually made of metal, plastic, or rubber. Grommets are commonly used to cover the rough and sharp edges of metal holes. This provides protection when other materials pass through the hole.
Features
- Built to exact specifications for durability, reliable performance, and outstanding productivity.
- Designed to withstand high temperatures and pressures.
- Has rubber flaps flaring outward on both sides of the material to hold the rubber in place.
- Gap Angle: Straight Cut
Applications
The grommet is installed on the hood and is used for wiring harnesses.
Specifications
| Diameter | 47.0 (Groove) mm (1.85 (Groove) in) |
|---|---|
| Groove Diameter – B (+/- 0.001 in) | 1.85 in |
| Groove Diameter – B (+/- 0.0254 mm) | 47 mm |
| Groove Width – A | 3 mm (0.12 in) |
| Inside Diameter | 20 mm (1.06 in) |
| Material Description | Rubber |
| Length | 11 mm (0.43 in) |
| Material | Chloroprene (CR) Rubber |
| Outside Diameter | 58 mm (1.61 in) |
| Width | 3 (Groove) mm (0.11 (Groove) in) |
| Type | Split |
Compatible Equipment
- Generator Sets: 3512B
- Track Loaders: 826H
- Cold Planers: PL83, PL87, PL61
- Compactors: CW-34
- Excavators: 330, 320D2, 308D, 336D2, 336D, 329D2 L, 326D2 L, 326D2, 320D, 329D, 329D2, 313, 313 GC, 316 GC, 374, 330D L, 330 GC, 340, 352, 336, 349E L, 416E, 345 GC, 349E, 320 GC, 326, 323, 325, 333, 335, 312 GC, 326GC, 315 GC, 315, 355, 312D L, 312D, 330C, 324D L, 312D2 L, 336D L, 336E L, 320D2 L, 325C, 315C, 336 GC, 314C, 324D, 320C L, 325D, 320C, 315D L, 323D L, 340D2 L, 349E L VG, 434F2, 340D L, 320D3 GC, 312 GX, 395, 312D2, 330C L, 320D L, 330GC, 318D2 L, 325D L, 328D LCR, 336E LH, 314D LCR, 329D L, 313D2, 320, 320D3, 320D GC, 336D2 L, 329E L, 312D2 GC, 323D2 L, 312E L, 313D2 GC, 336E, 336E LN, 325C L, 312C L, 320D2 GC, 312E, 312C, 320E, 323GC, 313F LGC, 329E, 336D2 GC, 349, 336E H, 318D L, 313D2-GC, 318D2, 326D L, 336D2 XE, 320D FM, 323D2, 330D2, 314D CR, 330D2 L, 320 GX, 333 GC, 326 GC, 323 GX, 330D, 313D, 3508B, 323 GC, 313 GX, 316 GX, 3101, 323D, 6060
- Skid Steer Loaders: 313D2 LGP
- Wheel Excavators: IT14G, M320, M315
- Dozers: D3K2 LGP, D5K2 XL, D6K2, D7E, D9T
- Mini Excavators: 306.5, 306
- Wheel Loaders: 928HZ, 928G, 924GZ, 924HZ, M314, 926M, 836, 834, 924K, 938M, 938K
- Off-Highway Trucks: 794 AC, 777E, 773E, 773, 775G, 789, 785, 777, 772G, 770G, 798 AC, 796 AC
