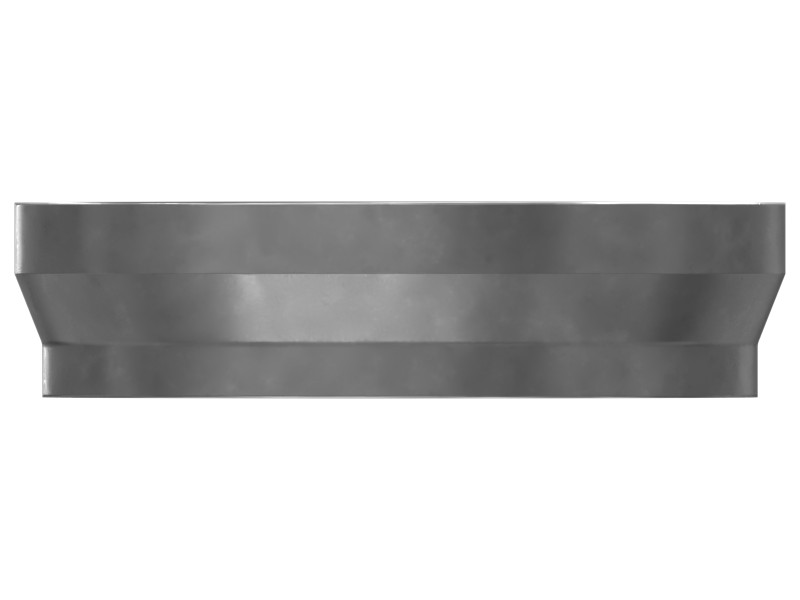

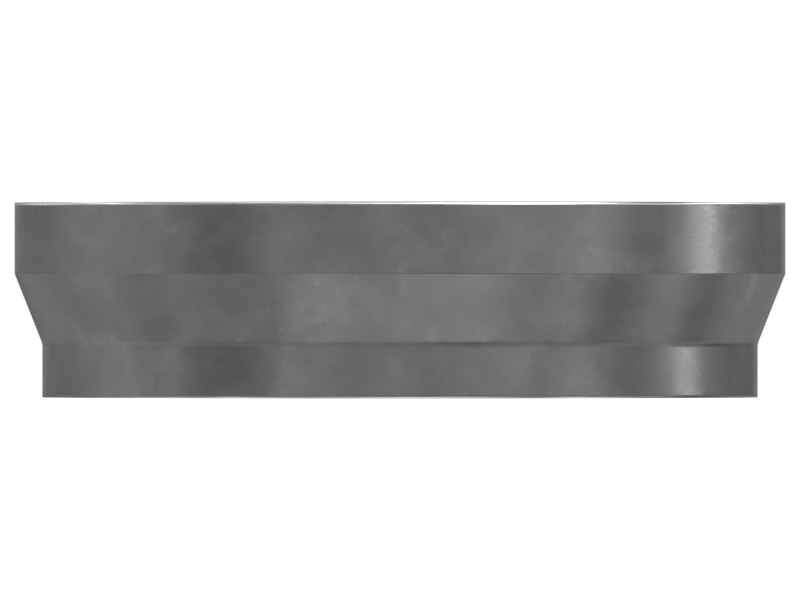

3G-5336 125 mm OD Universal Blade Sleeve Shim
Cat® 125 mm OD universal blade spacer is used for precise blade alignment and to ensure it functions properly.
Description
Spacers are commonly used to provide additional stretch length in a fastener, which reduces preload loss or narrows the cyclic stress range of the machine workload. They are used to establish and maintain the functional relationship of related parts in a machine system.
Specifications
| Unique Features | No |
|---|---|
| Cross Hole | No |
| Overall Length | 31.5 mm (1.24 in) |
| Ferrule Inside Diameter | 102.1 mm (4.02 in) |
| Ferrule Outside Diameter | 125 mm (4.921 in) |
| Center Hole Shape | Non-Threaded |
| Inside Diameter | 102 mm (4.02 in) |
| Length | 32 mm (1.24 in) |
| Material | 0 |
| Outside Diameter | 116, 125 mm (4.57, 4.92 in) |
| Type | Two ODs – Center Hole |
Compatible Equipment
- Dozers: D11R, D11N, D10, D11T, D11
