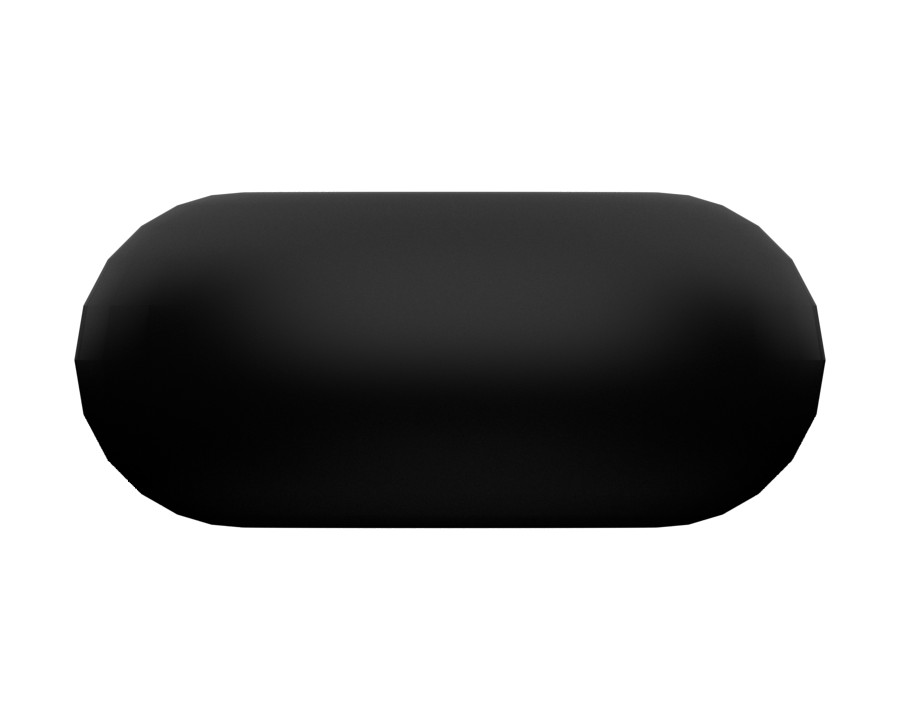

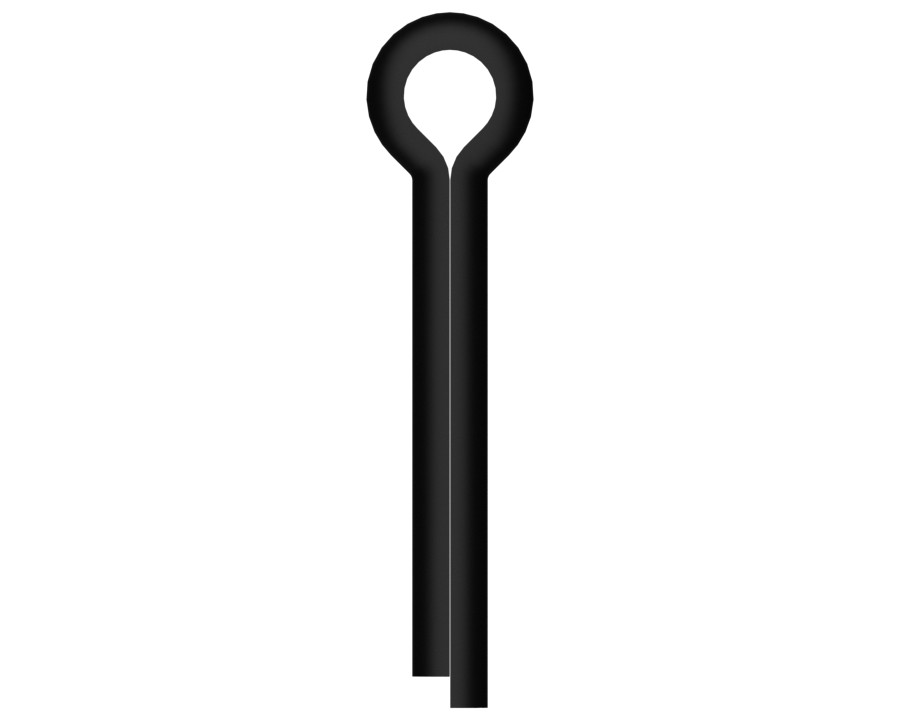

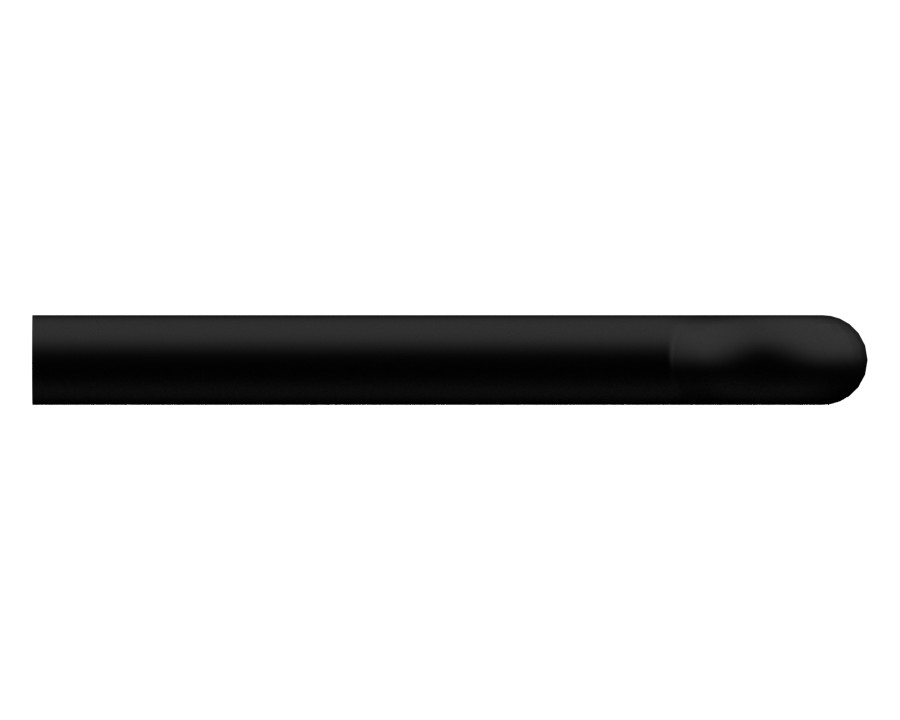

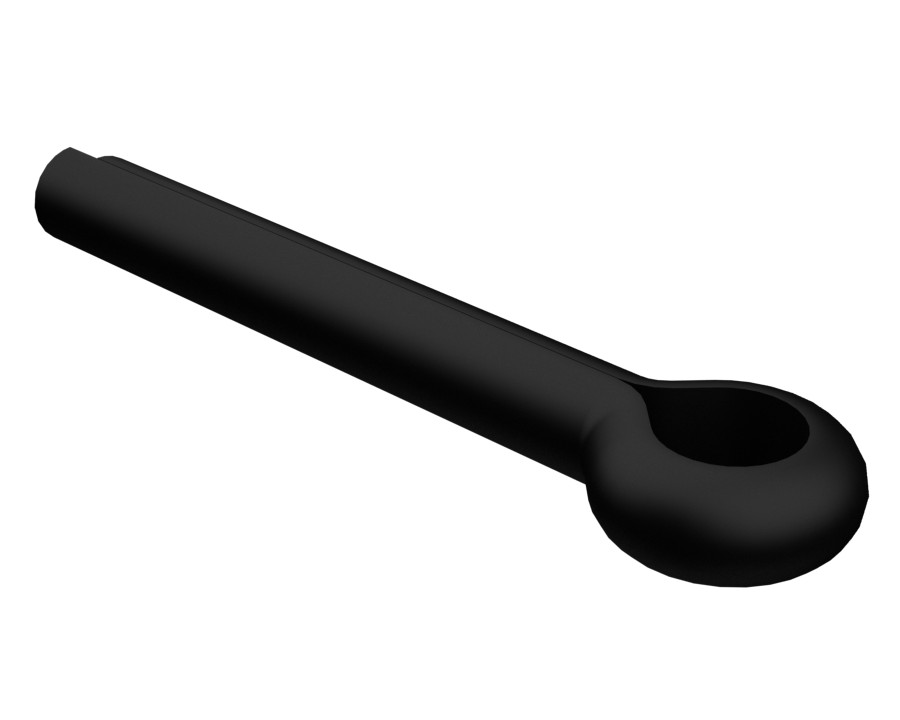

3B-4647 63.50 mm Long Steel Cotter Pin
Mitered End Cotter Pin
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The cotter pin is a two-piece pin made from a half-round wire folded in the middle and bent into a loop to form the head. After installation, the legs of the pin can be bent to hold the pin in place. Cotter pins are designed for use with the clevis pins included here, for pin bolt and nut assemblies in general applications, or other types of free-positioned pin assemblies.
Cat® fasteners and hardware are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners and hardware are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements
- Coating meets the special requirements of different applications (RoHS compliant)
Applications
- Cat fasteners and hardware are trusted to build, maintain or repair most machines and shop applications worldwide
Specifications
| Wire or Pin Diameter | 9.53 mm (0.375 in) |
|---|---|
| Pin Length | 63.5 mm (2.5 in) |
| Material | Mixed: Metal(1E1541) |
| Retaining Pin Type | Cotter Hair |
| Cotter Pin End Type | Mitered End |
| Remarks | Overall Length: 63.5, Pin Diameter: 9.525 |
| Size | Steel Cotter Pin mm |
| Material Description | Steel |
| Pin Type | Cotter Pin |
| Pin Diameter – A | 3/8 in |
| Pin Length – B | 2 1/2 in |
Compatible Equipment
- Motor Graders: 18, 14, 16, 120, 16M, 12K, 140K, 160K, 12H, 140G, 16H, 120H, 140H, 16M3, 14M
- Track Loaders: 824C, 816F, 824G, 826G, 826H
- Wheel Excavators: MD6200
- Dozers: D5H, D8L, D6G, D4, D6G2 XL
- Mini Excavators: 301.7D CR, 301.5
- Excavators: 301.8, 301.6, 301.7D
- Wheel Loaders: RM400, 966F, RM500B, 836, R1700 II
- Off-Highway Trucks: 773, 772G, 770G, 785D, 793, 785, 789, 798 AC, 777, 793F, 771D, 773F, 789D, 777E, 797F, 777D, 793D, 773E, 773D, 775G
- Asphalt Pavers: AP-600D
Additional information
| Machine Model | 120, 120H, 12H, 12K, 14, 140G, 140H, 140K, 14M, 16, 160K, 16H, 16M, 16M3, 18, 301.5, 301.6, 301.7D, 301.7D CR, 301.8, 770G, 771D, 772G, 773, 773D, 773E, 773F, 775G, 777, 777D, 777E, 785, 785D, 789, 789D, 793, 793D, 793F, 797F, 798 AC, 816F, 824C, 824G, 826G, 826H, 836, 966F, AP-600D, D4, D5H, D6G, D6G2 XL, D8L, MD6200, R1700 II, RM400, RM500B |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Asphalt Pavers |
| Part Source | Genuine OEM |
