Description

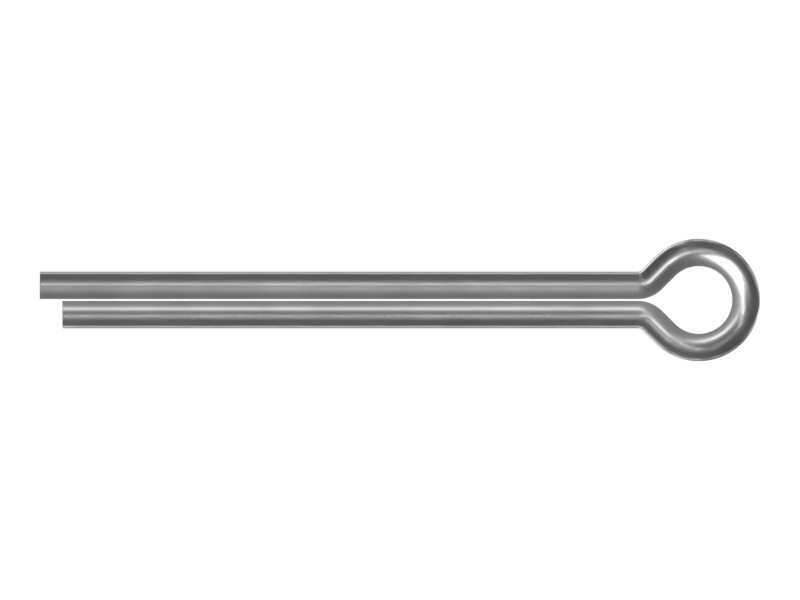

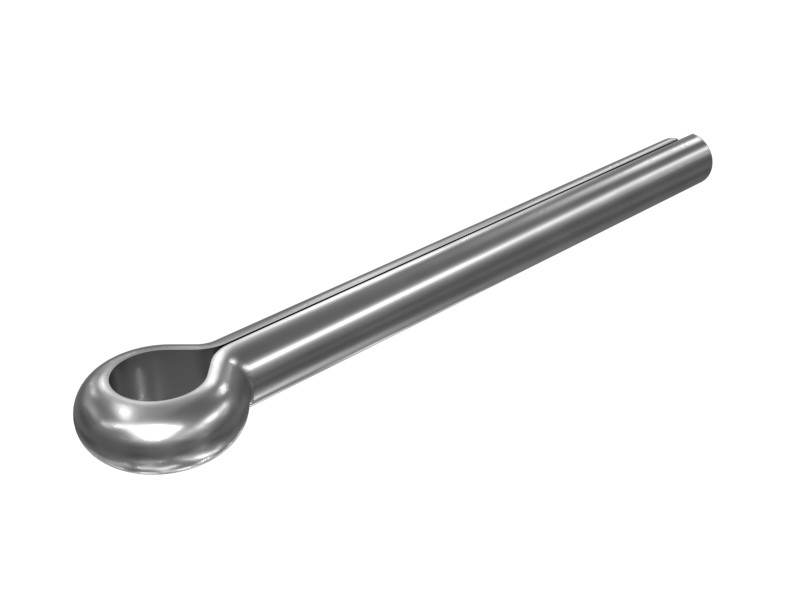

The cotter pin is a two-piece pin made from a half-round wire folded in the middle and bent into a loop to form the head. After installation, the legs of the pin can be bent to hold the pin in place. Cotter pins are designed for use with the clevis pins included here, for pin bolt and nut assemblies in general applications, or other types of free-positioned pin assemblies.
Features
- Material: Steel
- End Type: Square End
- Pin Diameter: 2.38 mm (0.09 in)
- Pin Length: 25.4 mm (1 in)
Applications
Used in most machine and shop applications.
Specifications
| Material | Zinc Plated Steel |
|---|---|
| Pin Diameter | 2.38 mm (0.09 in) |
| Length | 25.4 mm (1 in) |
| Material Description | Steel |
| Wire or Pin Diameter | 2.38 mm (0.094 in) |
| Retaining Pin Type | Cotter Hair |
| Pin Length | 25.4 mm (1 in) |
| Pin Type | Cotter Pin |
| Pin Diameter – A | 3/32 in |
| Cotter Pin End Type | Square End |
| Pin Length – B | 1 in |
Compatible Equipment
- Track Loaders: 824C, 824G, 816F, 826K, 826G, 994K, 826H, 834H
- Cold Planers: PM622, PM620, TH255C
- Compactors: 814, 815, CS-583D, CS-56, CS12 GC, CS-533C, CS54B, CW-34, CS-563E, CP54B, 834K, 824K, CS11, CS12, CS7, 816, CS-54, CW-16, CP12 GC, CP11 GC, CS64B, CS-533E, CS-54B
- Excavators: 330, 307.5, 306E, 305, 306E2, 307E, 308E, 303.5E2 CR, 374, 313 GC, 313, 305E2 CR, 340, 350, 120 GC, 336, 637G, 621G, 345 GC, 395, 335, 621H, 352, 325, 315 GC, 320, 323, 416E, 349, 320 GC, 336 GC, 305 CR, 326, 355, 330 GC, 637E, 416F2, 428F, 621K, 350MHPU, 3101, 637K, 434F2, 315, 330GC
- Asphalt Pavers: AP355F, AP300F
- Skid Steer Loaders: 232D3, 226D3, 236D3, 24
- Motor Graders: 140 GC, 16, 18, 120, 12K, 140H, 140K, 160K, 12H, 16M3, 120H
- Wheel Excavators: MD6250, M320, M315, MD6310
- Dozers: D11T, D8L, D8T, D8R, D10T2, D9R, D7G, D7E, D6R XL, D4E, D6T, D10, D10T, D6R III, D6R, D7R II, D7G2, D6N, D7R, D11N, D9L, D9N, D8, D10N, D6R LGP, D11, D6G, D6R II
- Mini Excavators: 308, 310, 305E2, 305.5E2, 303.5E, 305.5 GC, 308.5, 306, 307, 308E2, 306.5, 307E2, 305.5E
- Wheel Loaders: 962G, 980H, 950, 972H, 950G, 966H, 980, 950 GC, 950H, 962L, 966F, 980G, 972G, 836, 834, 988K, 988G, 980L, 966K, 910, M314, 972L, 988H, 966L, 990H, 950L
- Off-Highway Trucks: 735, 740, 740B, 725C2, 745, 740 GC, 725, 730, 745C, 777, 794 AC
