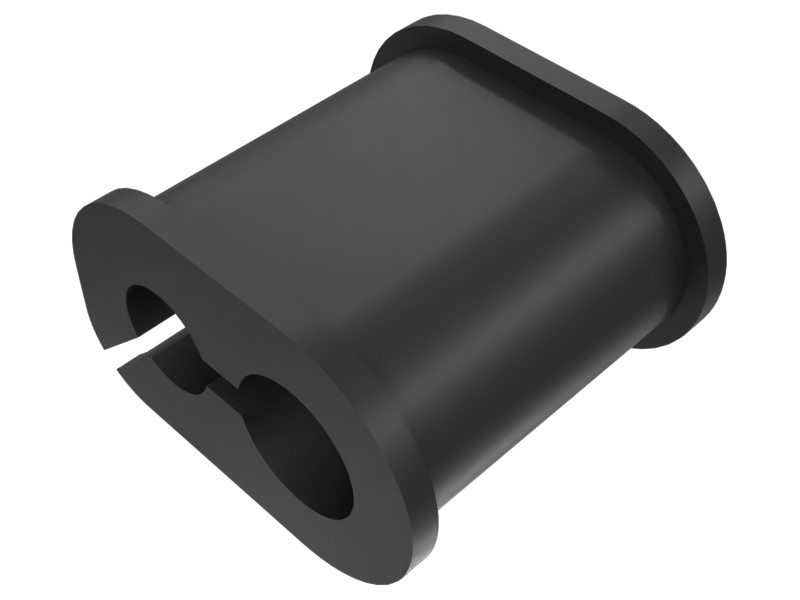

377-0677 Oval Double Thrust Hole Grommet
Cat® Oval Double Thrust Hole Slit Grommet, Inside Diameter: 15.9 mm (2X)
Description
Grommets such as part number 377-0677 are made of high-quality rubber to protect the environment in which the equipment is located, and are used to prevent wires and cables from contacting metal, avoiding damage to these components from vibration, rubbing against surrounding structures, and shock and noise. The grommet has a rubber flange evenly positioned on both sides of the material to hold the rubber in place.
The grommet is made of premium heat-resistant, weather-resistant rubber and is durable and tear-resistant. The grommet is not prone to drying out, cracking, or loosening. It has good insulating properties and is simple and quick to install.
Features
- Oval double thrust-hole grommet
- Chloroprene rubber
- Style: Grooved
- Overall Length: 78 mm (3.07 in)
- Overall Height: 48 mm (1.89 in) (Flange)
- Thickness: 72 mm (2.84 in)
- Groove Length: 70 mm (2.76 in)
- Groove Width: 62 mm (2.44 in)
- Groove Height: 40 mm (1.56 in)
- Hole Size: 15.9 mm (0.63 in) (2X)
- Flange Thickness: 5 mm (0.20 in) (2X)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Flange Thickness | 5 (2X) mm (0.20 (2X) in) |
|---|---|
| Hardness | 70 Shore A |
| Hole Size | 15.9 (2X) mm (0.63 (2X) in) |
| Material | Chloroprene (CR) Rubber |
| Overall Height | 48 mm (1.89 in) |
| Overall Length | 78 mm (3.07 in) |
| Style | Slot |
| Thickness | 72 mm (2.84 in) |
| Type | Oval Double Thrust Hole Grommet |
Compatible Equipment
- Motor Graders: 14
- Engines: C32
- Excavators: 6020B, 6030, 6040, 6015B, 6015
- Off-Highway Trucks: 7495
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
