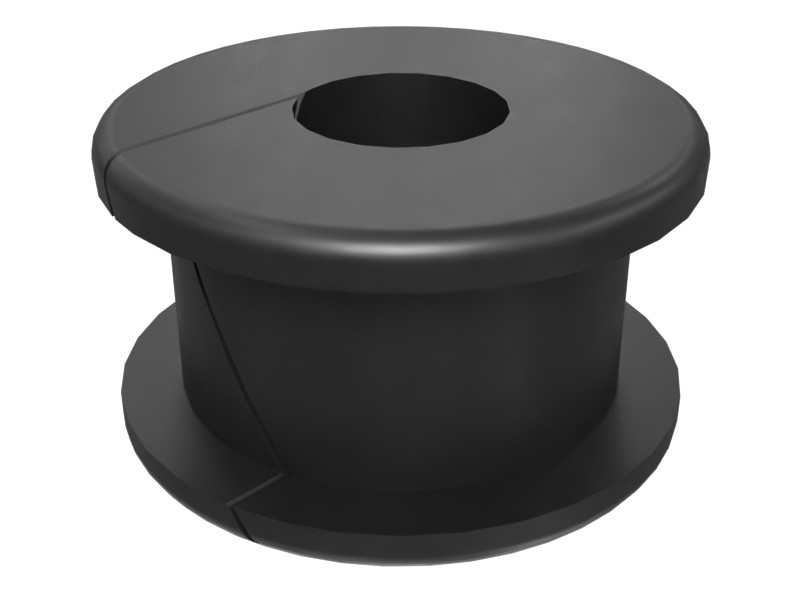

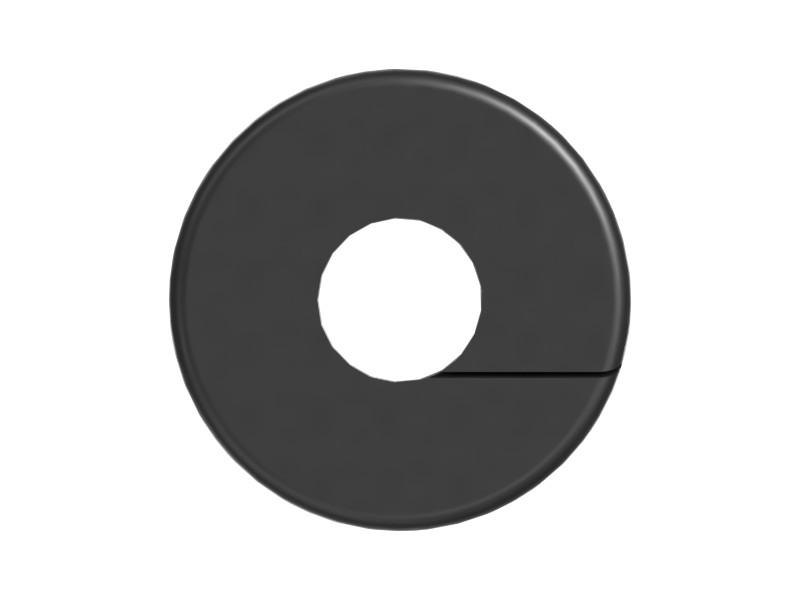

148-9263 Rubber Grommet
Cat® Split Rubber Grommet with Double Flange, Inside Diameter: 15 mm
Description
The grommet (for example part number 148-9263) is used to prevent hydraulic lines and wires from being damaged by rubbing against sharp edges or corners when passing through holes or clips.
Cat grommets are made of high-quality heat- and weather-resistant rubber. They are durable, tear-resistant, and resist drying out, cracking and loosening. They provide good insulation and install quickly and easily.
Features
- Rubber double-flange symmetrical grommet (slit)
- Inside Diameter: 16 mm (0.63 in)
- Outside Diameter: 44.5 mm (1.75 in) (Flange)
- Groove Diameter: 35 mm (1.37 in)
- Groove Width: 18 mm (0.71 in)
- Length: 25 mm (0.98 in)
- Flange Thickness: 3.5 mm (0.14 in) (Both Ends)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Flange Thickness | 3.5 mm (0.14 in) |
|---|---|
| Inside Diameter | 16 mm (0.63 in) |
| Material | Rubber |
| Outside Diameter | 45 (Flange) mm (1.75 (Flange) in) |
| Width | 25 mm (0.98 in) |
Compatible Equipment
- Track Loaders: 824C, 826H
- Compactors: CB-534D, CB-564D
- Dozers: D9T
- Excavators: 6020B
- Wheel Loaders: 928G, R1700K, R1700 XE
Additional information
| Machine Model | 6020B, 824C, 826H, 928G, CB-534D, CB-564D, D9T, R1700 XE, R1700K |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Compactors |
| Part Source | Genuine OEM |
