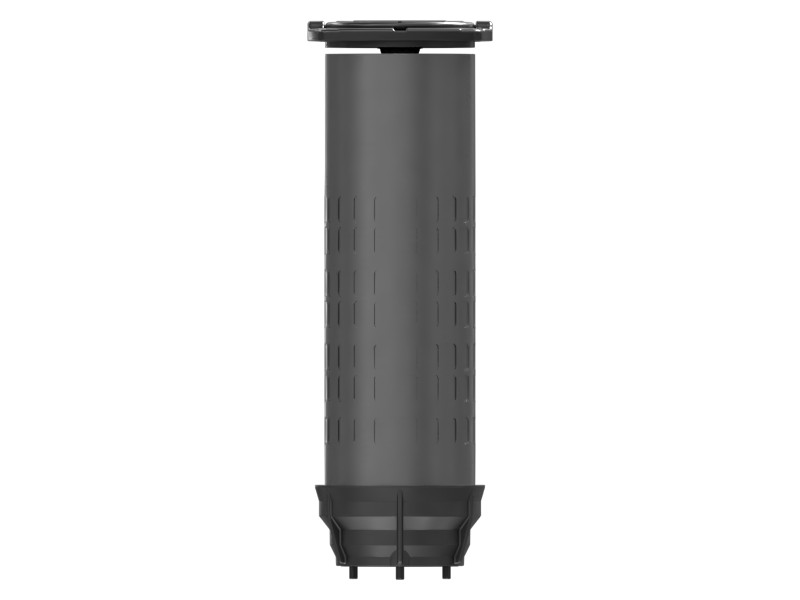

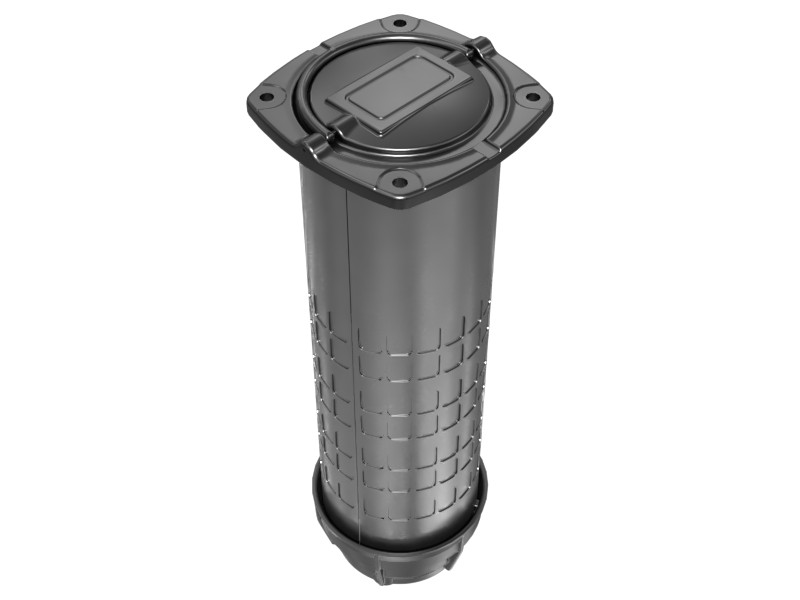

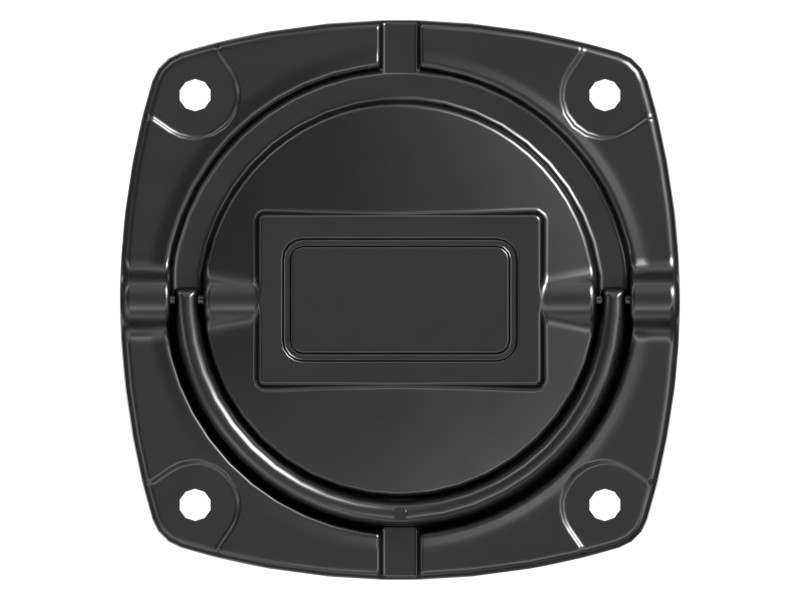

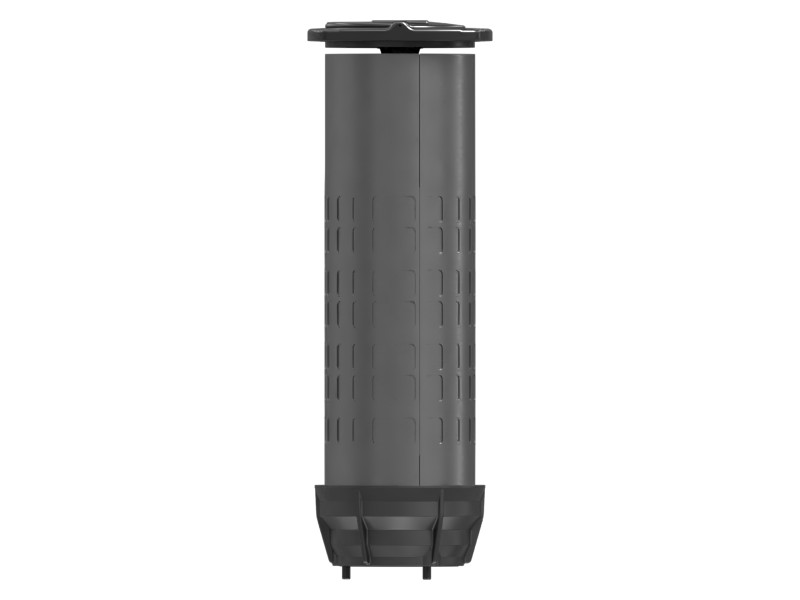

376-1286 Hydraulic Tank Return Filter
Cat® 179.5 mm Diameter Hydraulic Tank Return Filter
Description
The hydraulic tank return filter, also known as a hydraulic tank return line filter or hydraulic reservoir filter, is used in hydraulic systems to filter oil as it returns to the hydraulic tank. It helps remove contaminants and maintain hydraulic oil cleanliness, ensuring optimal system performance and protecting hydraulic components.
Attributes
- Withstands operating temperatures from -30 to 100°C
- Withstands maximum operating pressure up to 600 kPa
- Built to exact specifications for durability and reliability
Applications
The hydraulic tank return filter removes contaminants from the oil as it flows back to the hydraulic tank. As hydraulic oil circulates through the system, it picks up contaminants from various sources, including wear particles, dirt and external debris. The return line filter captures these contaminants, preventing them from re-entering the hydraulic tank and circulating back into the system.
Specifications
| Material | Carbon Steel |
|---|---|
| Width | 179.5 mm (7.067 in) |
| Length | 625 mm (24.606 in) |
Compatible Equipment
- Track Loaders: 826K
- Cold Planers: PM620, PM622
- Compactors: 825K, 824K, 815
- Wheel Loaders: 982M, 980M, 972M, 966M
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
