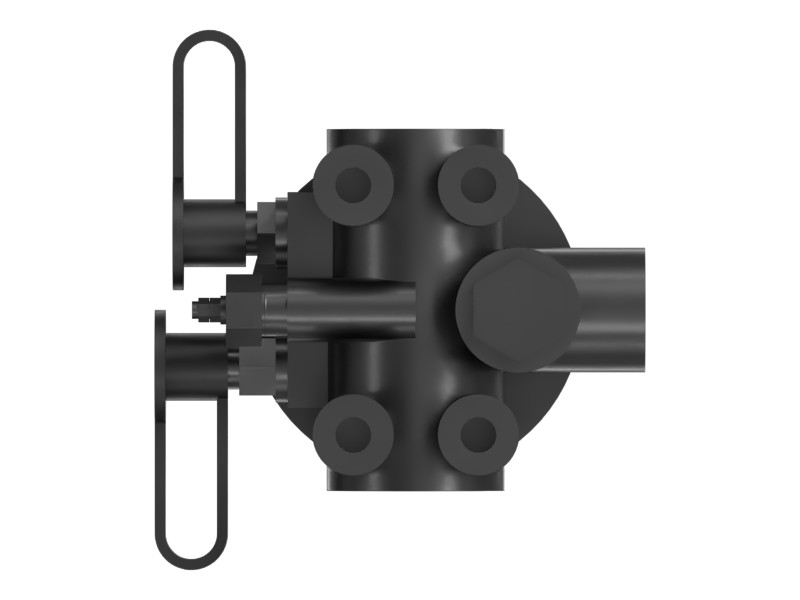

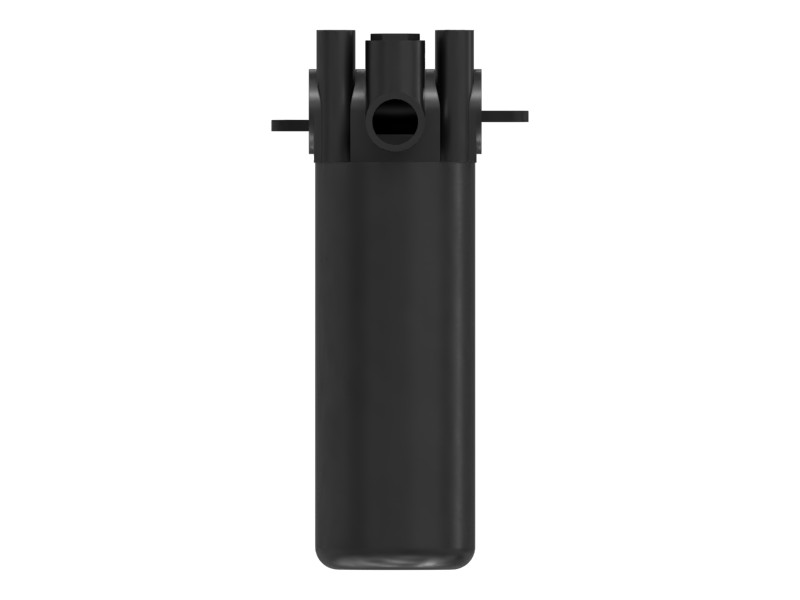

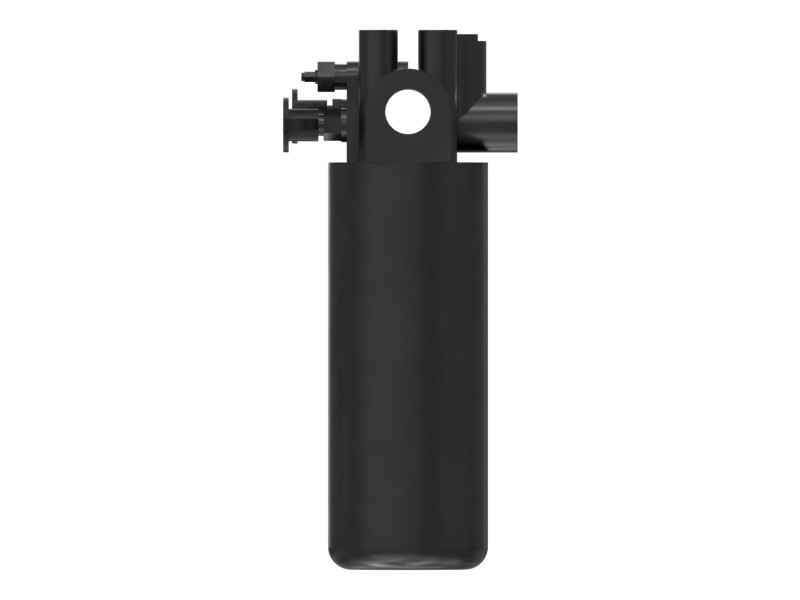

192-0717 Hydraulic Oil Filter
Cat® 94.2 mm Diameter Hydraulic Oil Filter
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The hydraulic oil filter removes contaminants and impurities from hydraulic oil. It plays a role in maintaining oil cleanliness and protecting hydraulic system components. High efficiency oil filters typically use advanced filter media and construction techniques to achieve superior filtration performance. They are designed to capture smaller particles and provide higher levels of filtration, typically specified as the percentage of particles removed at a specific micron size.
Attributes
- Equipped with an O-ring seal for an efficient leak-proof seal
- Bypass pressure setting of 345 kPa improves filter efficiency and maintains proper oil flow
- Provides 4 mounting holes for use with M10 fasteners
- Withstands operating temperatures from -29 to 121°C
Applications
The hydraulic oil filter captures and retains particles that may be present in the oil, such as dirt, metal shavings and other impurities.
Specifications
| Material | Alloy Aluminum |
|---|---|
| Filter Type | Cartridge |
| Length | 316.7 mm (12.469 in) |
| Width | 101.6 mm (4 in) |
Compatible Equipment
- Compactors: CB-434D, CB-534D, CS12, CB-564D, CS11, CP12 GC, CS12 GC, CP11 GC, CS7
- Asphalt Pavers: AP655F, AP655F L
