Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications
| Class or Grade | Martensitic ISO 3506-2-C1 |
|---|---|
| Thread Direction | RH |
| Thread Size | M10 mm (0 in) |
| Hole Thread Pitch | 1.50 |
| Thread Size (Diameter × Pitch) | M10X1.5 mm |
| Thickness | 11.9 mm (0.469 in) |
| Height | 12 mm |
| Thread | RH Coarse |
| Drive Chain | 15 mm (0.591 in) |
| Flange Diameter | 22 mm |

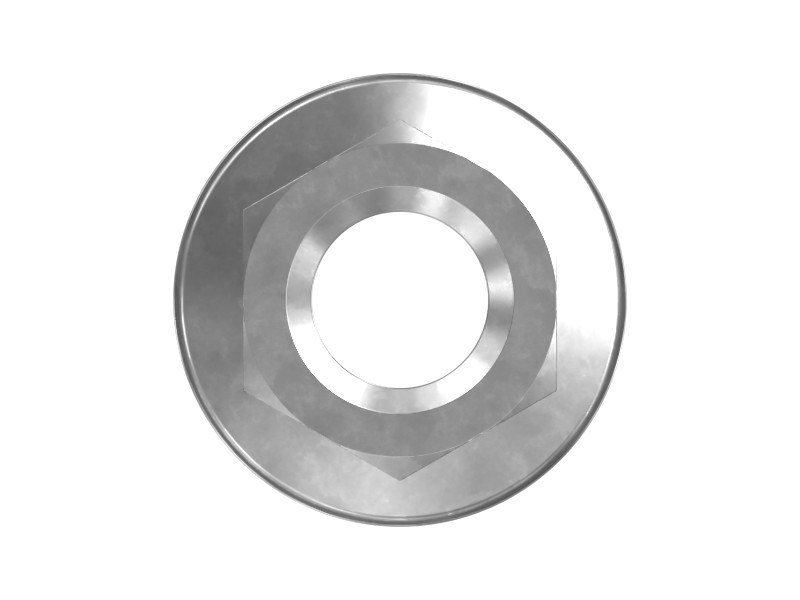

| Nut Model | Flange Lock Nut |
| Material | STAINLESS STEEL |
| Thread Size (in – TPI) | M10-1.5 in |
| Material Description | Austenitic Stainless Steel |
| Coating | Flash Silver Plated + Lubricant Topcoat |
Compatible Equipment
- Generator Sets: C9, C4.4, G3516C
- Track Loaders: 973K, 834H, 826K, 972, 982, 826H, 824C
- Cold Planers: PL87, PL83, PM622, PM-200, PM620, PL72
- Compactors: 824K, 825K, 834K, CB-24B, CB-36B, CC-34B, CB-34B, C9.3B, CB-64B, CB2.9, CB16, CB2.7, CB-66B, CB2.5, C13B, CB2.5 GC, CC2.7 GC, CB2.7 GC, CB15, CB13, C-9
- Engines: C15, C13, C7, C11, C18
- Excavators: 390F L, 374D L, 3126, 390D L, 374F, 349D, 374, 349F L, 657G, 637K, 637E, 390F, 385C L, 6020B, 6060, 349E L, 349, 365C, 349E, 340, 3516B, 416F2, 355, 352, 336, 350, 6030, 6040, 3508B, 325C L, 325D, 325D L, 324D L, 325C, 330C, 329D L, 416E, 395, 350MHPU, 637G, 365C L, 390D, 621G, 349D L, 374F L, 385C FS, 352F, 385C, 621H, 349E L VG, 345 GC, 621K
- Asphalt Pavers: AD30, AD45
- Motor Graders: 18, 16, 16M3, 120H, 14, 349 GC
- Wheel Excavators: MD6200, MD6310, MD6250
- Dozers: D9, D7, D6R III, D8T, D7R II, D7E, D6T, D8, D10R, D9T, D7R, D8R
- Wheel Loaders: 988K, 950G, 980L, 980H, 980G, 988H, 986H, RM500B, 966, 980, 834, R1700G, R3000H, R1600H, R2900G, R2900 XE, R1700K, RM400, 836, 950H
- Off-Highway Trucks: 772G, 745C, 770G, 740, 797F, 730, 735, 740B, 794 AC, 773F, 725, 796 AC, 793, 785, 789, 798 AC, 793D, 789D, 745, 740 GC, 793F
