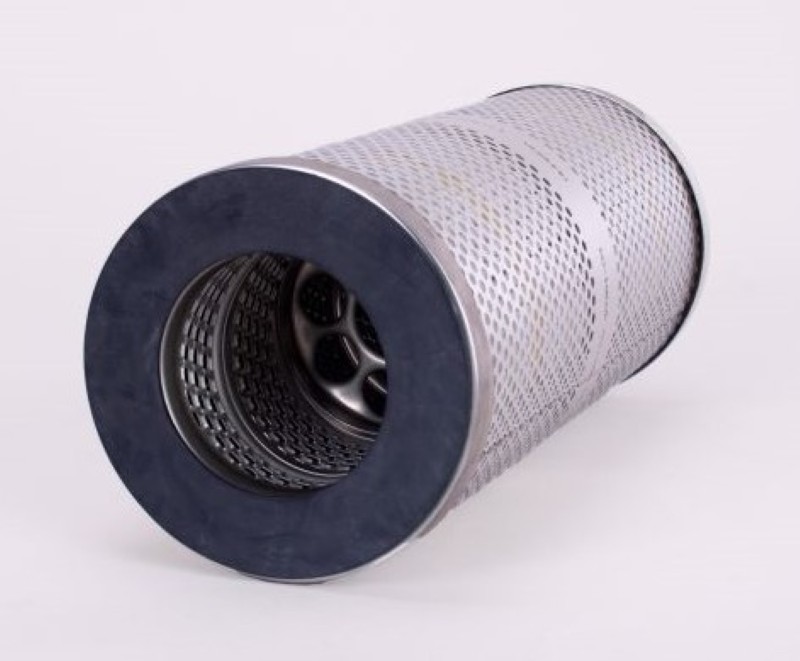

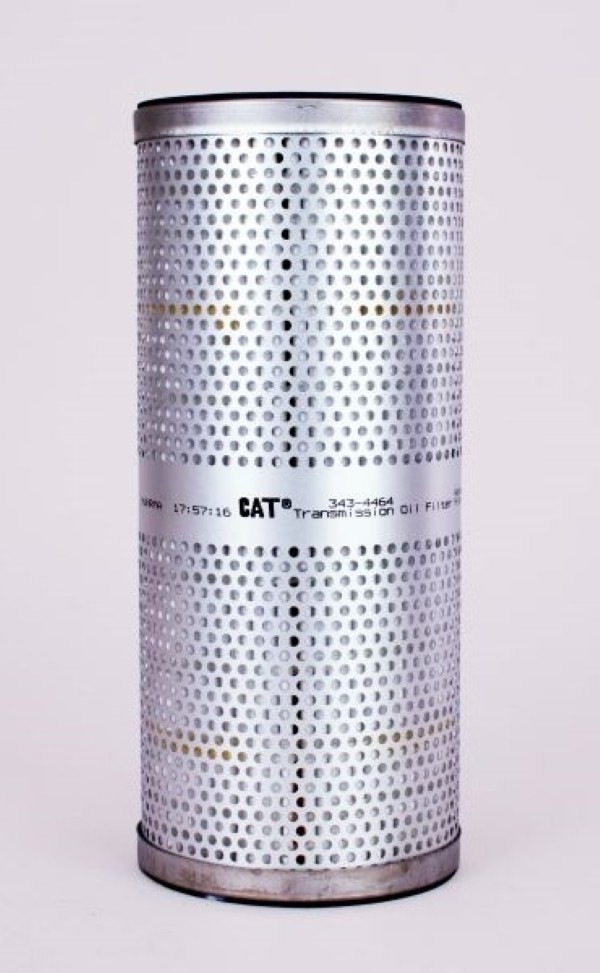

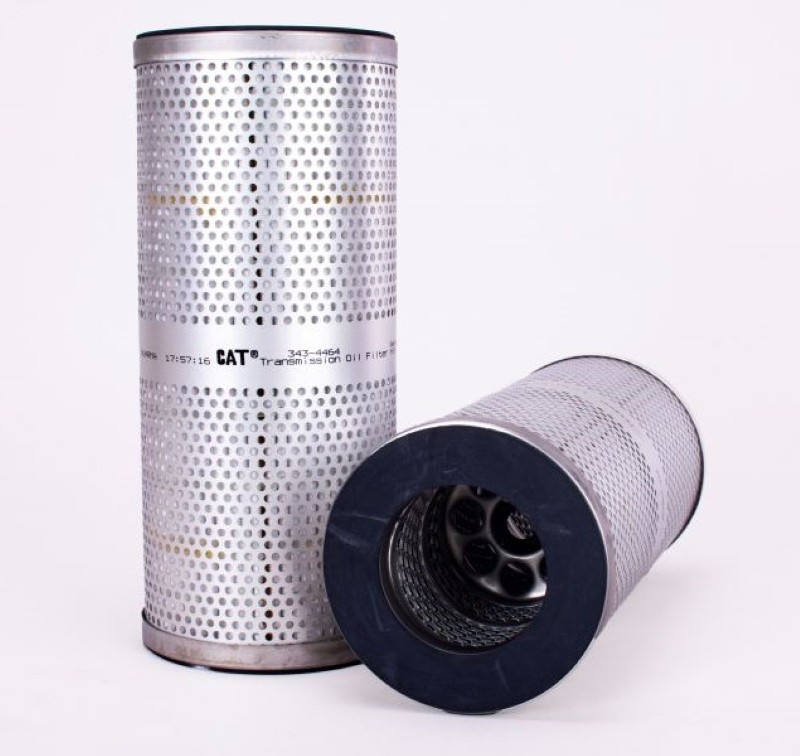

343-4464 Transmission Filter Element
Advanced efficiency hydraulic oil filters are made with special materials designed to provide greater protection in medium to heavy duty applications, protecting the system from accelerated wear.
Description
Cat® hydraulic filters isolate contaminants and abrasives in high-pressure hydraulic systems to keep them from wearing down tight-tolerance systems, providing optimal protection. Cleanliness is key to keeping sensitive hydraulic systems properly lubricated.
Specifications
| Length | 235 mm (9.252 in) |
|---|---|
| Diameter | 101.2 mm (3.984 in) |
| Filter Type | Cartridge |
| Flow Direction | Out-to-In |
| Material | Carbon Steel |
| Efficiency Rating | Advanced Efficiency |
| Efficiency Category | Advanced High Efficiency |
Compatible Equipment
- Motor Graders: 140G, 16H, 120H, 140H
- Track Loaders: 816F
- Dozers: D9R, D10N, D11R, D10R, D8R
- Excavators: 637G, 637E, 637K, 657G, 621G
- Wheel Loaders: R2900G, R3000H
- Off-Highway Trucks: 785D, 777E, 777D, 785, 793D
