Description

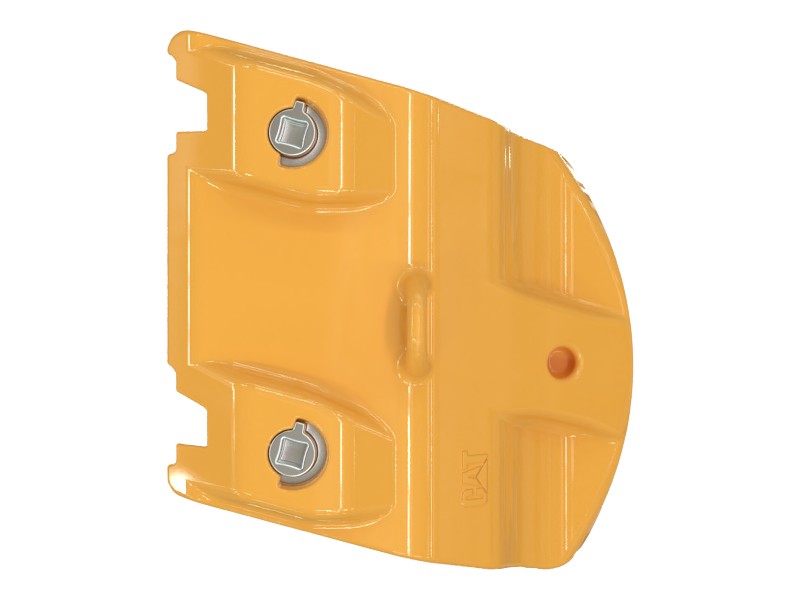

Hammerless shrouds are designed to protect the base edge of high-wear bucket systems. With the CapSure™ retention device, the retainer locks/unlocks with a single turn, enabling simple, quick installation and removal while reducing the risk of injury. The retention bosses are reusable, lowering ownership and operating costs. Applications:
- High-wear bucket systems
Specifications
| Thickness | 60 mm (2.36 in) |
|---|---|
| Length | 436 mm (17.1 in) |
| End Width | 410 mm |
| Wear or Durability | Standard |
| Series | CapSure |
| Position | LH |
| Width | 436 mm (17.165 in) |
| Attachment Method | CapSure |
| Number of Holes | 2 |
| Base Edge Thickness Grade | 90 |
| Corner Angle | 15 |
| Bevel Angle | 35 |
| Depth | 481 mm (18.937 in) |
| Hole Spacing | 300 mm (11.811 in) |
| Size | 90 mm |
Compatible Equipment
- Track Loaders: 993, 992
- Wheel Loaders: 992K
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
