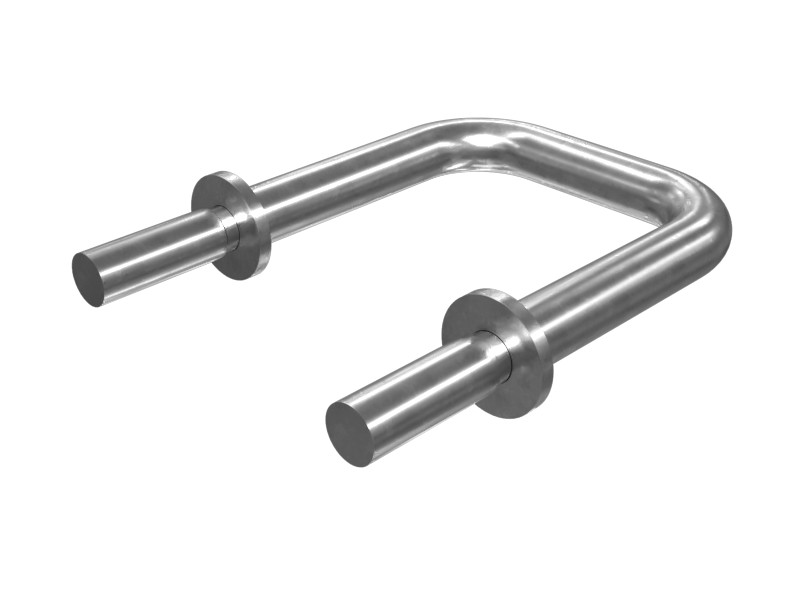

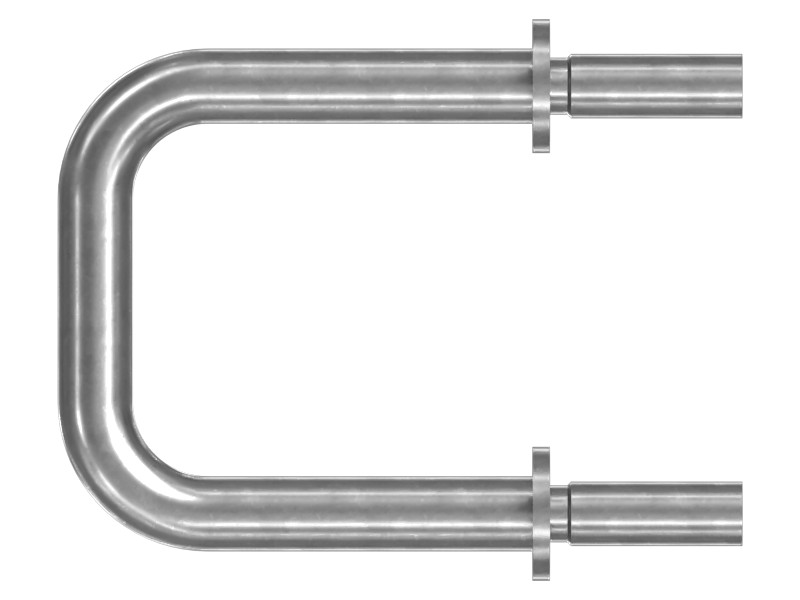

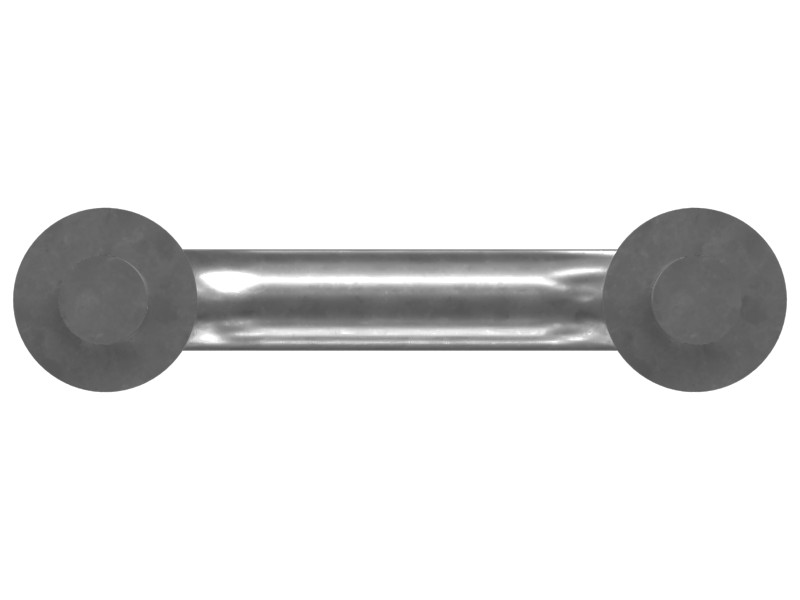

334-6495 40 mm Long Window Latch Striker
Cat® operator cab window latch keeper for firmly securing the window and providing solid protection for the structure
Description
Cat strikers provide the mating part for door latch mechanisms and hinged assemblies on Cat machines.
Features
- Material: Stainless steel
- Diameter: 7 mm (0.28 in) (Rod Striker)
- Thread: M6X1.0
Applications
Cat strikers are used to secure doors and hinged assemblies on Cat machines as needed. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Diameter | 7 (Rod to Latch) mm (0.28 (Rod to Latch) in) |
|---|---|
| Overall Height | 59 mm (2.30 in) |
| Overall Width | 53 mm (2.07 in) |
| Thread | M6X1.0 (2X) |
Compatible Equipment
- Motor Graders: 316F
- Generator Sets: C7.1, 3512B
- Excavators: 349F L, 312E L, 320E, 336E L, 313F L, 336E, 330D, 336D L, 312F, 315D L, 336F LN, 336D2 L, 323D, 336E LH, 320D RR, 329E, 320D L, 329D L, 329E L, 336F L, 324D, 336F L XE, 312D L, 328D LCR, 336F, 312D, 312E, 390F, 345D L, 349E L VG, 349E, 345D, 6015B, 349E L, 349D L, 374F L, 352F, 6015, 330D2, 324D L, 323D2, 323D2 L, 312D2, 323D L, 330D2 L, 336E LN, 335F LCR, 336E H, 320D, 326D2 L, 329D2 L, 336D2, 326D2, 329D, 349D2, 349D2 L, 390F L, 374F, 336D
Additional information
| Machine Model | 312D, 312D L, 312D2, 312E, 312E L, 312F, 313F L, 315D L, 316F, 320D, 320D L, 320D RR, 320E, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2 L, 329E, 329E L, 330D, 330D2, 330D2 L, 335F LCR, 336D, 336D L, 336D2, 336D2 L, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 345D, 345D L, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 3512B, 352F, 374F, 374F L, 390F, 390F L, 6015, 6015B, C7.1 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
