Description

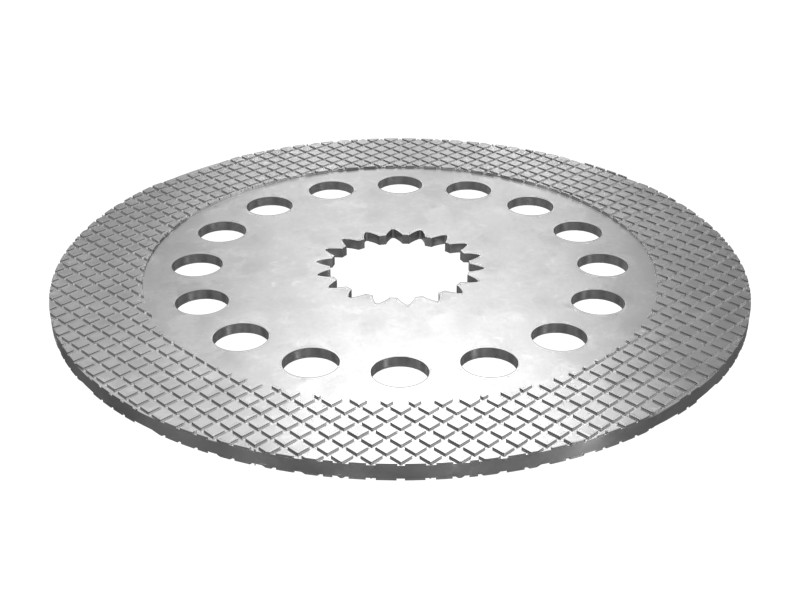

Cat powertrain components must withstand extremely high torque, high shock loads, and frequent direction changes and shifts. Cat designs and manufactures transmission and final drive components with these demands in mind, ultimately improving powertrain durability and performance over the life of the machine. Cat friction discs work with the brake system to provide the critical friction needed to slow, stop, or hold the machine stationary.
Features
- Full waffle-pattern grooves optimized for heat dissipation
- Hardened steel core reduces spline wear
- Internal spline for exact OEM fit
- Long-life friction material for long service life
- OEM friction formulation maintains braking performance to certification standards
Applications
Cat brake friction discs are used as part of the brake system to slow the machine. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Non-Band Type Friction Material |
|---|---|
| Inside Diameter | 82.9 mm (3.26 in) |
| Outside Diameter | 403 mm (15.9 in) |
| Thickness | 9.1 mm (0.36 in) |
Compatible Equipment
- Wheel Loaders: 950G, 950H, 962G, R1300G
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
