Description

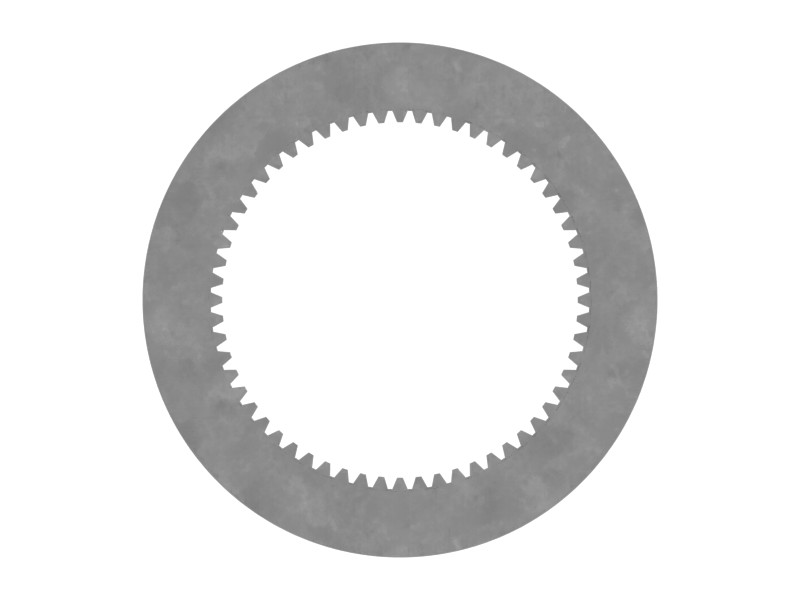

Cat powertrain components must withstand extremely high torque, high shock loads, and frequent direction changes and shifts. Cat designs and manufactures transmission and final drive components with these demands in mind, ultimately improving powertrain durability and performance over the life of the machine. Cat friction discs are used in the transmission system to absorb high power and energy during shifts.
Features
- Multiple parallel grooves optimized for heat dissipation
- Special surface heat treatment to prevent spline wear
- Internal spline for exact OEM fit
Applications
Cat friction discs, as part of the transmission system, are used to achieve optimal performance and maximum service life for the powertrain. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Low Alloy Steel |
|---|---|
| Inside Diameter | 148.8 mm (5.86 in) |
| Outside Diameter | 215 mm (8.5 in) |
| Thickness | 4 mm (0.15 in) |
Compatible Equipment
- Off-Highway Trucks: 730, 735, 725, 725C2
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
