Description

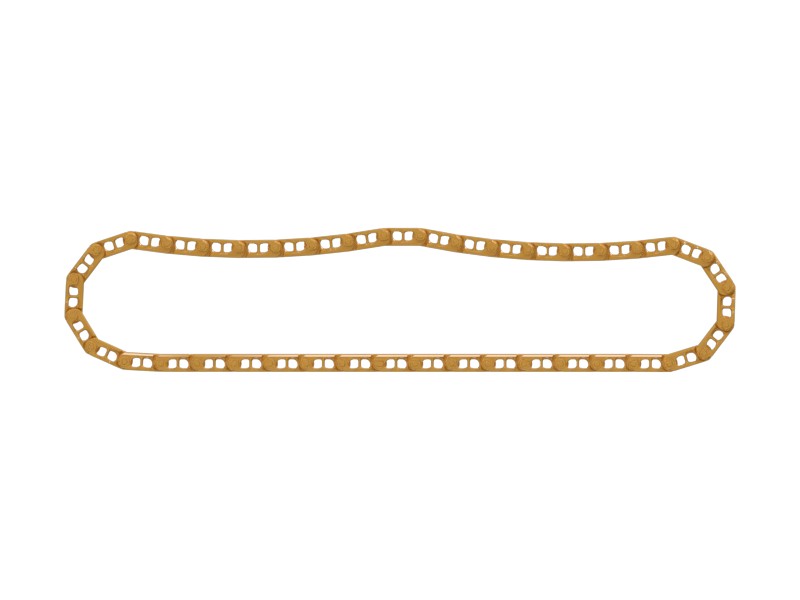

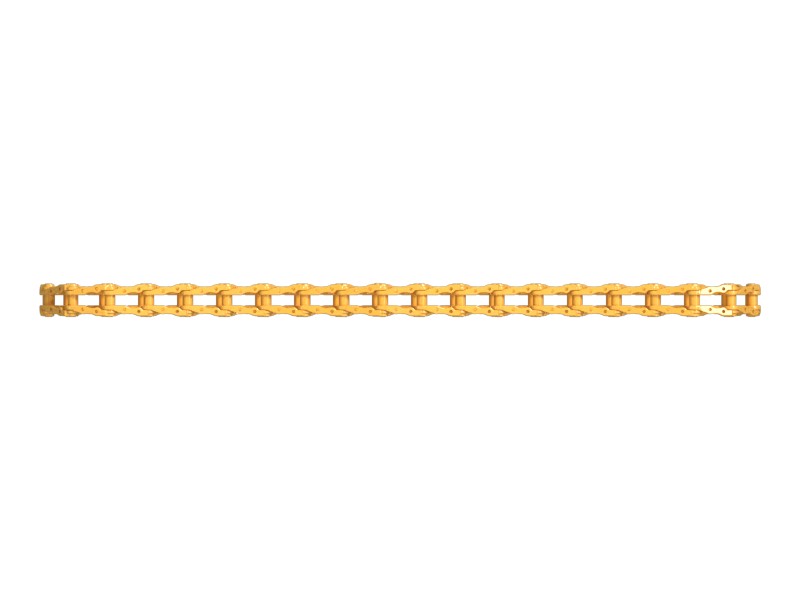

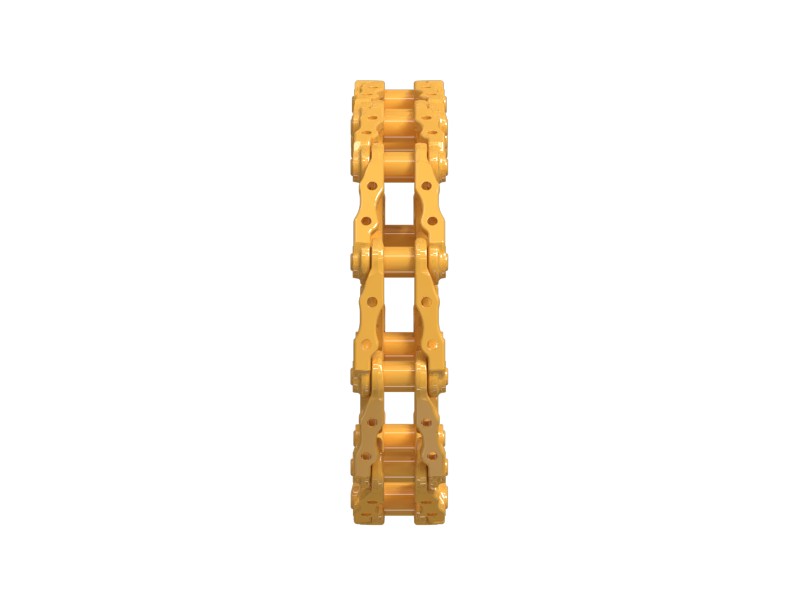

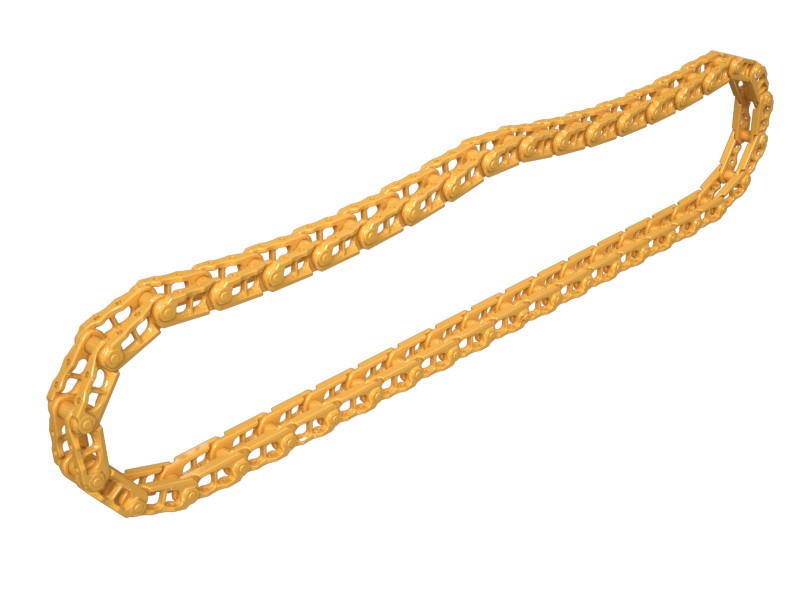

The Cat® link group is driven by the sprocket and final drive, supports the weight of the machine, provides a rail for the machine to travel on, and provides a location for attaching track shoes.
Grease lubricated tracks have internally lubricated pins and bushings to avoid contact and friction, and each track joint is sealed to keep the grease in. Compared with sealed tracks, this extends internal wear life by 25%, reduces undercarriage noise, and lowers the chance of joints freezing or seizing.
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Wear Sensor | No |
|---|---|
| Undercarriage System | HD |
| Track Pitch | 154 mm (6.1 in) |
| Number of Track Links | 40 |
| Link Inside Spacing at Roller | 48.9 mm (1.925 in) |
| Bolt Size | M14 mm (0.5511 in) |
| Overall Length | 2842 mm (111.89 in) |
| Rail to Bushing Outside Diameter | 19.9 mm (0.783 in) |
| Rail to Pin Boss Outside Diameter | 22.8 mm (0.898 in) |
| Weight | 156.4 kg (344.81 lb) |
| Overall Width | 131 mm (5.16 in) |
| Overall Height | 609.1 mm (23.99 in) |
| Track Shoe Bolt Hole Spacing A | 57 mm (2.244 in) |
| Link Outside Spacing | 101.1 mm (3.98 in) |
| Bolt Hole Diameter | 14.2 mm (0.559 in) |
| Link Height | 74 mm (2.913 in) |
| Track Shoe Bolt Hole Spacing B | 73 mm (2.874 in) |
| Bushing Outside Diameter | 41.26 mm (1.624 in) |
| Track Shoe Bolt Hole Spacing C | 89 mm (3.504 in) |
| Pin Retention System | Press Fit |
| Link Inside Spacing at Sprocket | 40.6 mm (1.598 in) |
| Pin Length | 131 mm (5.157 in) |
| Number of Links | 40 |
| Rotating Bushing Track | No RBT |
| Master Link Type | Slip Fit Master |
| Main Bolt Thread | M12 |
| Track Bolt Thread | M12 |
| Track Reinforcement System | Not Applicable |
| Grease Lubricated Track Type | GLT |
| Seal and Lubrication Type | SALT |
Compatible Equipment
- Mini Excavators: 308, 308E2, 308.5
- Excavators: 308D, 308E
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
