Description

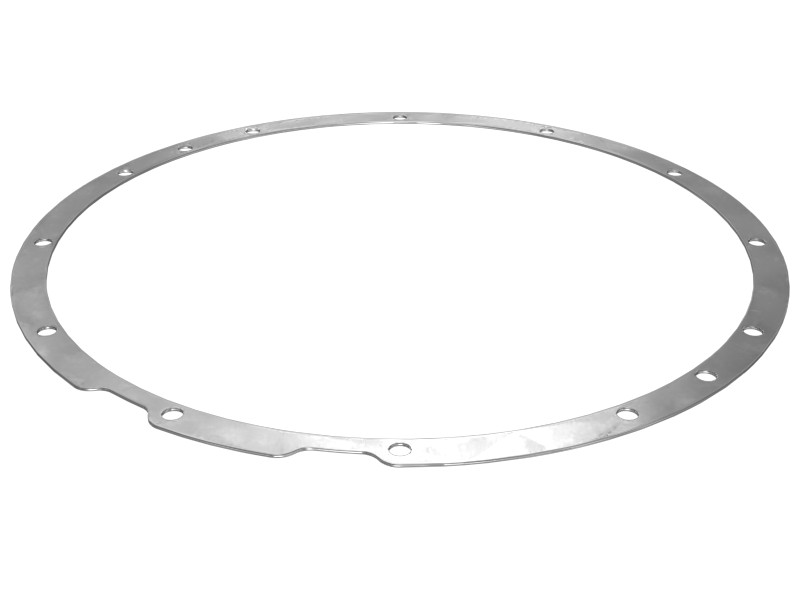

Service part for the output drive gear assembly. Use as needed to obtain the proper end play.
Features
- Material: Steel
- For use with M10 fasteners
- Overall Thickness: 2.4 mm (0.09 in)
- Outside Diameter: 455 mm (17.91 in)
- Inside Diameter: 416 mm (16.38 in)
- Shim pack contains 4 0.13 mm (0.005 in) thick shims, 2 0.8 mm (0.031 in) thick shims, 6 0.05 mm (0.002 in) thick shims
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Inside Diameter | 416 mm (16.4 in) |
| Material Description | Steel |
| Overall Thickness | 2.4 mm (0.09 in) |
| Outside Diameter | 455 mm (17.9 in) |
| Thickness | 2 mm (0.1 in) |
Compatible Equipment
- Track Loaders: 816F, 972
- Compactors: 816, 815, 814
- Excavators: 3516B
- Wheel Loaders: 966M, 972M, 966 GC
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
