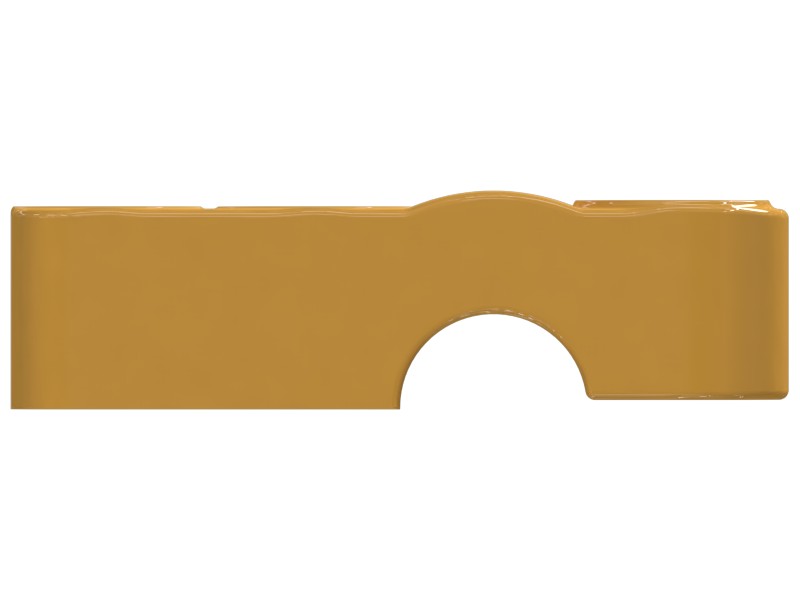

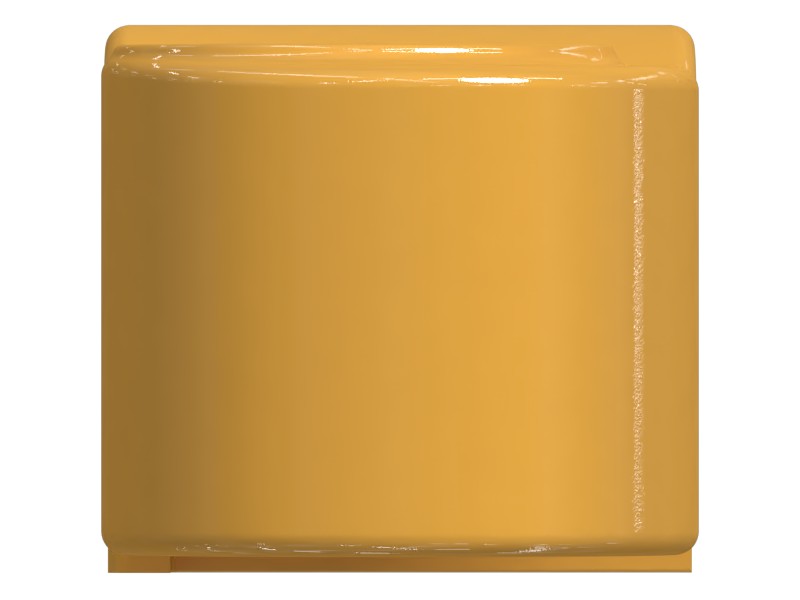

306-9457 Track Roller Mounting Cover
Cat® Track Roller End Collar
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The track roller end ring provides a retaining feature for the idler shaft and the sealing system.
Specifications
| Height | 69.5 mm (2.559 in) |
|---|---|
| Length | 250 mm (9.843 in) |
| Chassis Width | 75 mm |
| Number of Mounting Holes | 3 |
| Hole 2 Distance | 115 mm (4.528 in) |
| Mounting Face Offset | 3 mm (0.118 in) |
| Hole 1 Distance | 57.5 mm (2.264 in) |
| Pin Diameter | 9.6 mm (0.378 in) |
| Hole 3 Distance | 182.5 mm (7.185 in) |
| Mounting Hole Diameter | 31.13 mm (1.226 in) |
| Width | 75 mm (2.953 in) |
| Shaft Mounting Diameter | 74.15 mm (2.919 in) |
Compatible Equipment
- Dozers: D11R, D11N, D11T, D11
