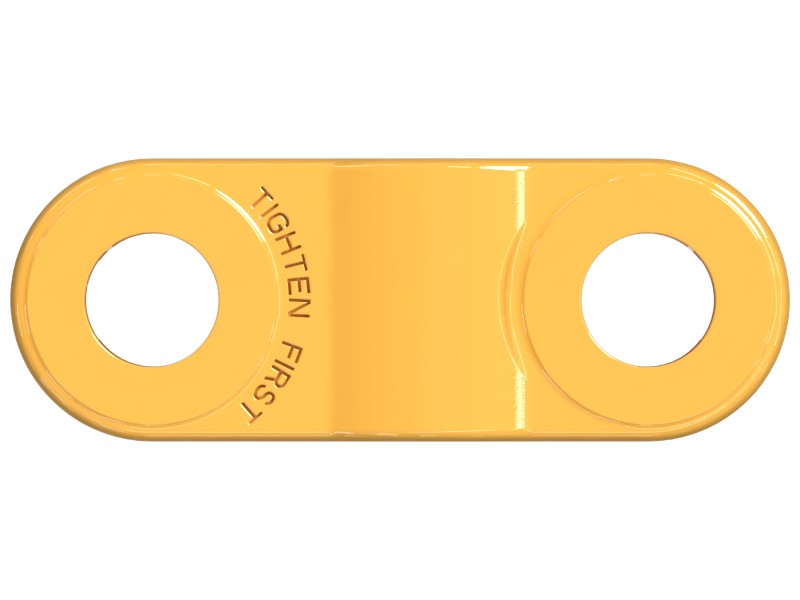

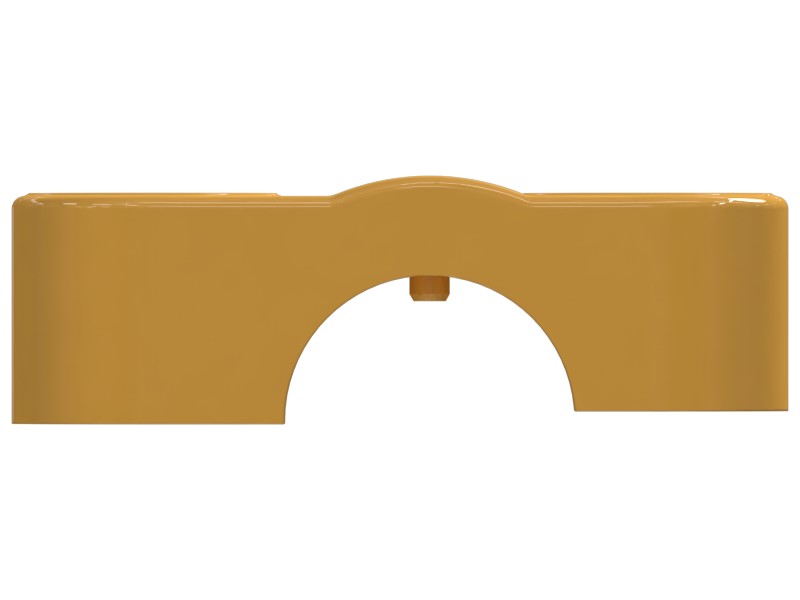

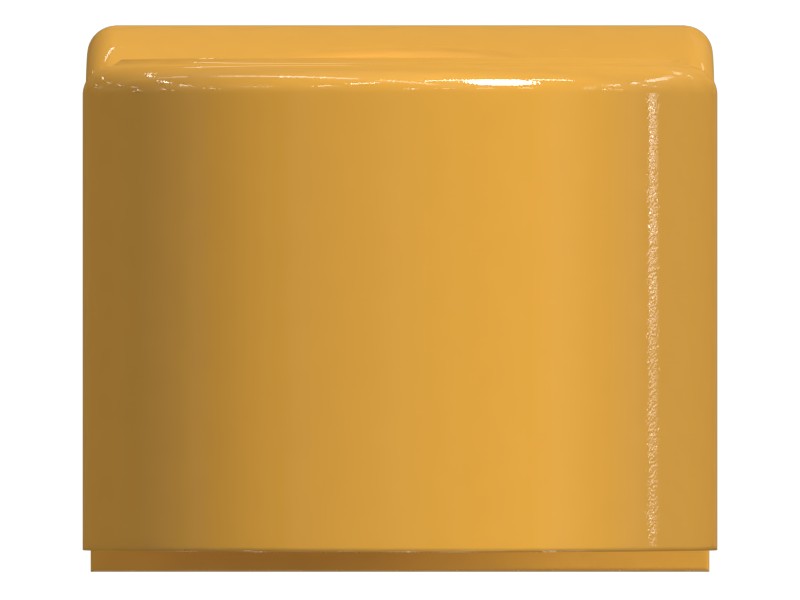

306-9437 Track Idler Cover
Cat® Track Idler Cover with Spring Pin for Use in Track Roller Frames of Undercarriage Systems
Description
The idler end ring provides a retaining feature for the idler shaft and the sealing system.
Specifications
| Pin Diameter | 9.6 mm (0.378 in) |
|---|---|
| Number of Mounting Holes | 2 |
| Hole 2 Distance | 116 mm (4.567 in) |
| Mounting Hole Diameter | 33 mm (1.299 in) |
| Width | 66 mm (2.598 in) |
| Hole 1 Distance | 65 mm (2.559 in) |
| Mounting Face Offset | 3 mm (0.118 in) |
| Chassis Width | 66 mm |
| Shaft Mounting Diameter | 68.15 mm (2.683 in) |
| Length | 182 mm (7.165 in) |
| Height | 54 mm (2.126 in) |
Compatible Equipment
- Cold Planers: PL83, PL87
- Dozers: D8, D8T, D8R
- Excavators: 3508B
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
