Description

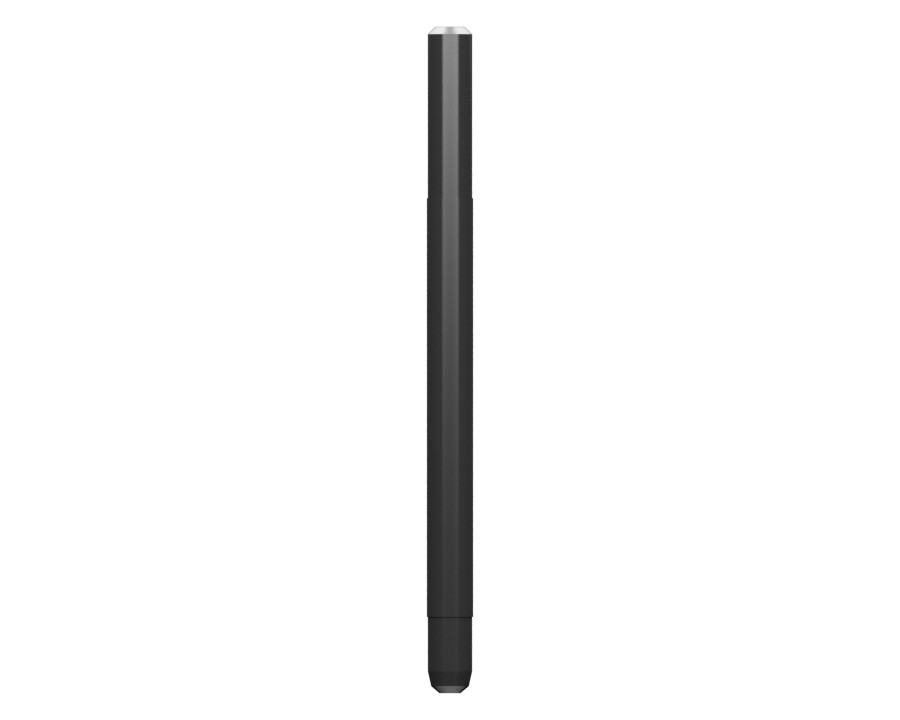

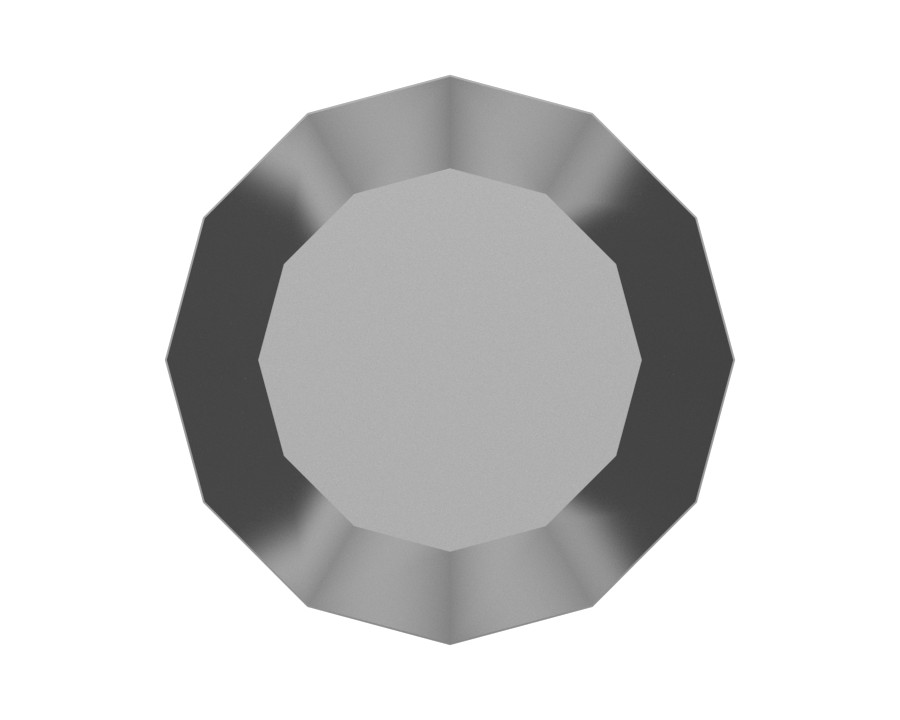

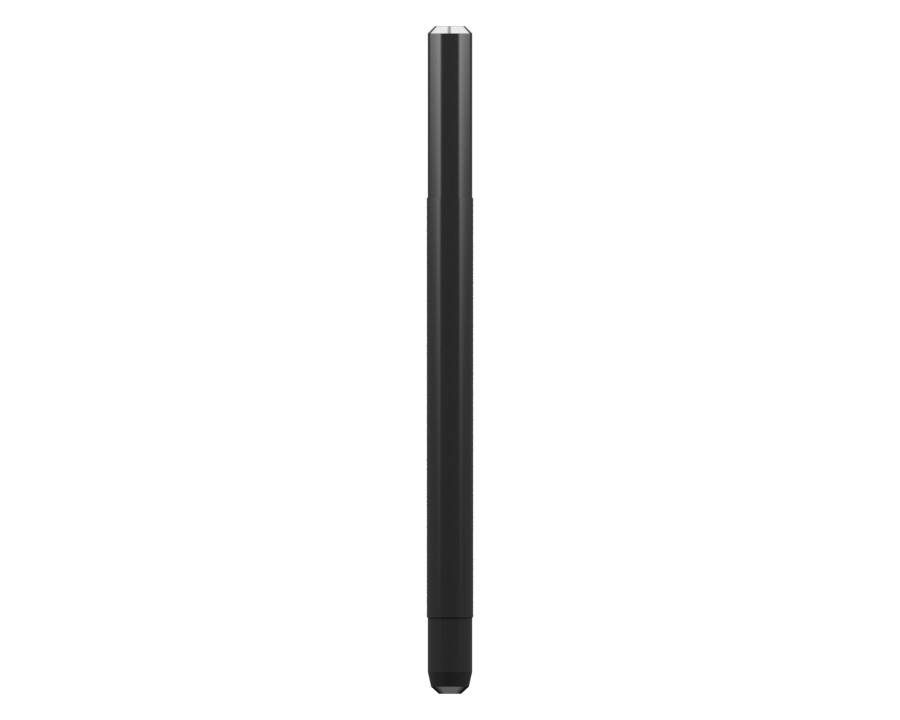

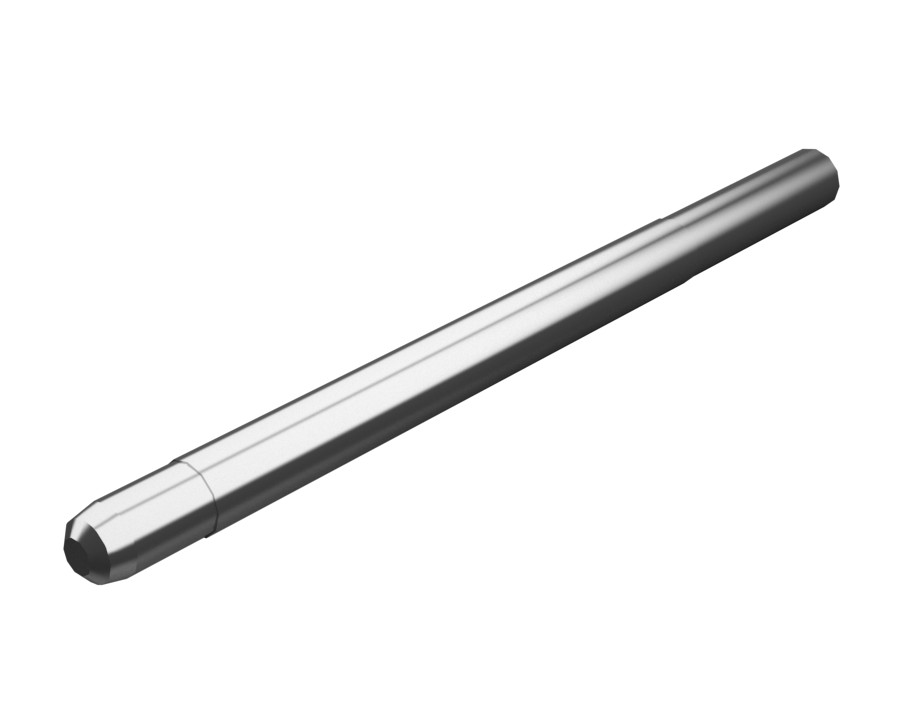

Also known as a threaded rod. Usually fully threaded or threaded at both ends.
Cat® fastener and hardware parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners and hardware are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality — Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements
- Coating meets the special requirements of different applications (RoHS compliant)
Applications
- Cat fasteners and hardware are trusted to build, maintain or repair most machines and shop applications worldwide
Specifications
| Stud Thread Size | 0.375 |
|---|---|
| Remarks | Thread Length (mm) 35.71875, Stud End Thread Length: 15.875 |
| Locking Feature | Steel Stud |
| Thread Size | 0.375 mm (3/8-16 in) |
| Length | 139.7 mm |
| Stud Thread Pitch | 16 |
| Material Description | ISO Class 8.8 or SAE Grade 5 Equivalent |
| Hole Thread Pitch | 16 |
| Stud Thread Size | 3/8-16 in |
| Overall Length | 5.51 in |
| Material | Low Alloy Steel |
| Stud Type | Double End Threaded Stud (Rod) |
Compatible Equipment
- Motor Graders: 3606
- Engines: C15
- Dozers: D10N, D9L
- Excavators: 657G
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
