Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications
| Drive Chain | 47.625 mm (1 7/8 in) |
|---|---|
| Class or Grade | SAE J995 Grade 8 |
| Thread Size | 1.250 mm (0.049 in) |
| Hole Thread Pitch | 12 |
| Thread Size (Diameter × Pitch) | 1.250×12 mm |
| Nut Width – 3 | 1 7/8 in |
| Thread | Fine Thread UNF |
| Hardened | Yes |
| Thread Direction | RH |
| Thickness | 26.9875 mm (1.063 in) |
| Height | 1.06 in |

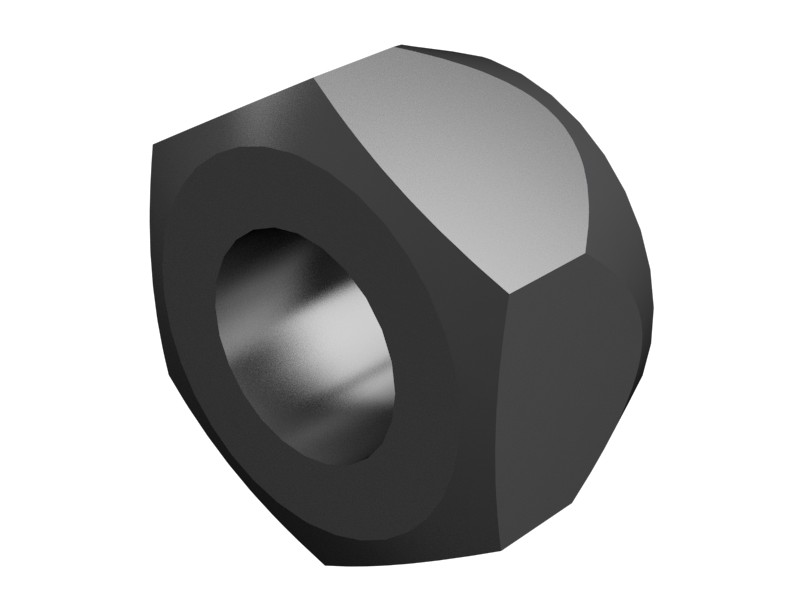

| Nut Model | Lock Nut |
| Thread Size (in – TPI) | 1 1/4 -12 in |
| Material Description | SAE J995 Grade 8 |
| Coating | Phosphate |
Compatible Equipment
- Motor Graders: 140 GC, 120, 14M, 14
- Compactors: CB-534D, CB-564D
- Dozers: D7G
- Excavators: 120 GC
- Asphalt Pavers: AP655F, AP655F L
Additional information
| Machine Model | 120, 120 GC, 14, 140 GC, 14M, AP655F, AP655F L, CB-534D, CB-564D, D7G |
|---|---|
| Equipment Type | Excavators, Dozers, Motor Graders, Compactors, Asphalt Pavers |
| Part Source | Genuine OEM |
