Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force.
Specifications
| Nut Width – 3 | 1 5/16 in |
|---|---|
| Hole Thread Pitch | 9 |
| Thread Size | .875 mm (0.034 in) |
| Drive Chain | 33.3375 mm (1 5/16 in) |
| Thread Direction | RH |
| Class or Grade | Cat/SAE J995 Grade 8+ (170 ksi) |
| Thread Size (Diameter × Pitch) | 7/8×9 mm |
| Thickness | 19.05 mm (0.776 in) |
| Height | 0.78 in |

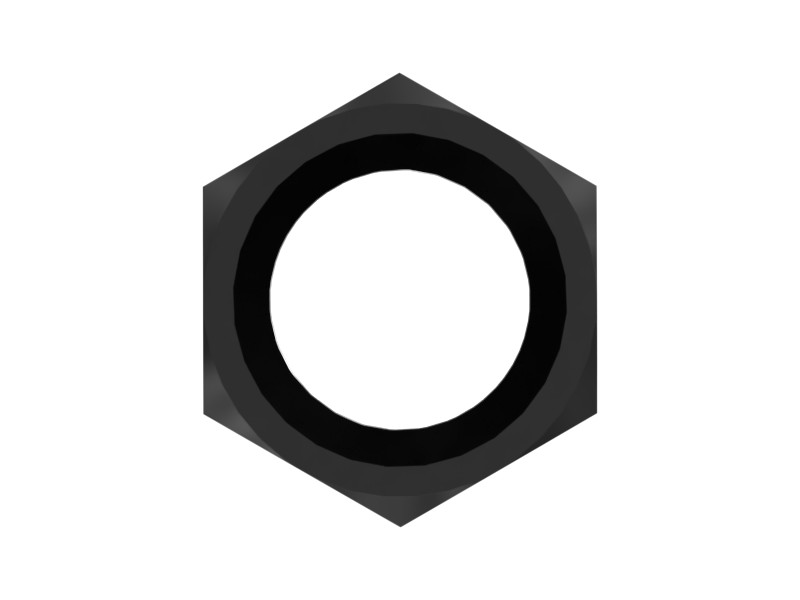

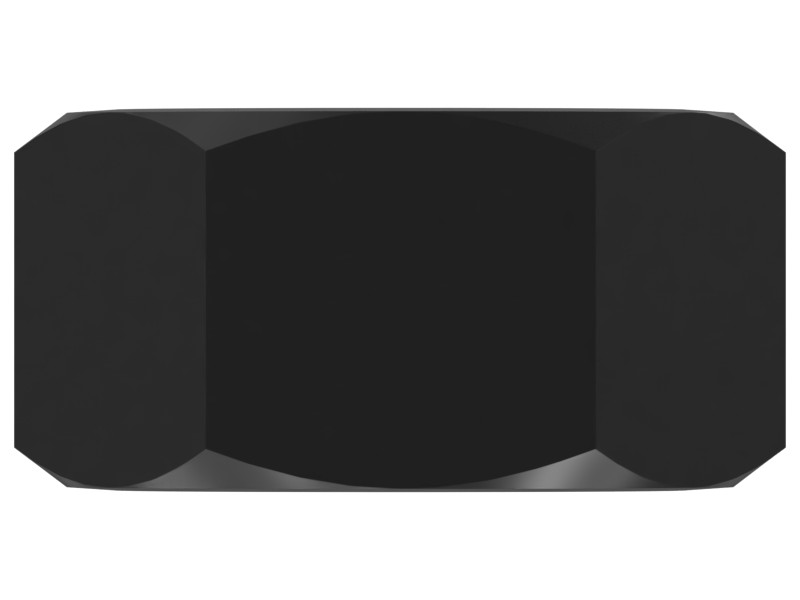

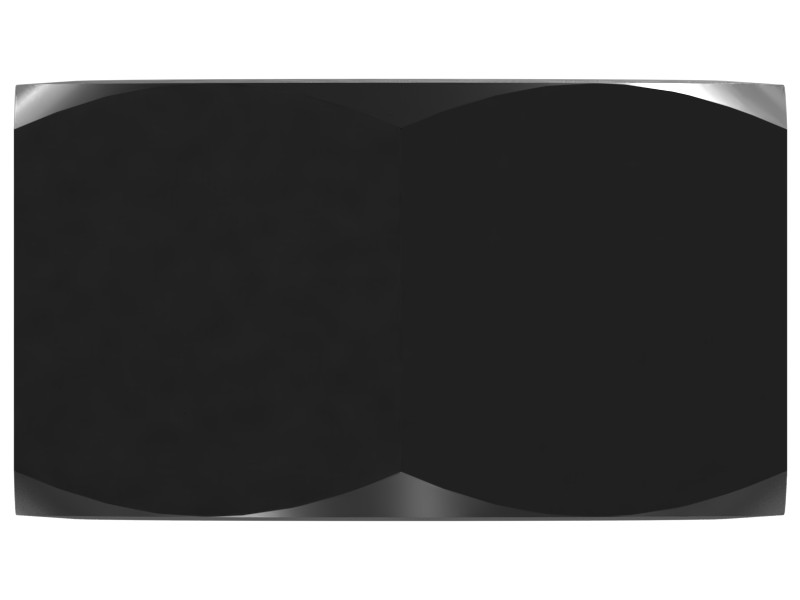

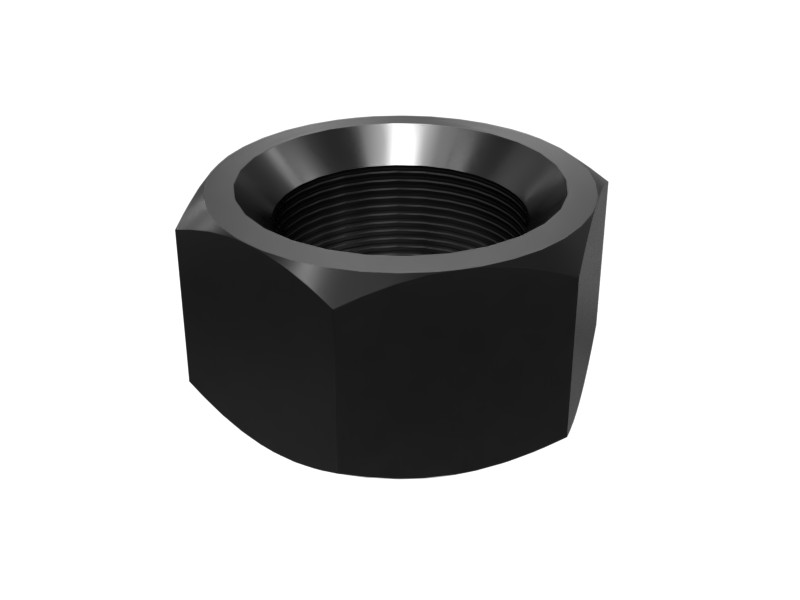

| Nut Model | Hex Nut |
| Thread Size (in – TPI) | 7/8-9 in |
| Material | Carbon Steel |
| Material Description | Hardness More Than 20% Higher Than SAE J995 Grade 8 |
| Coating | Zinc Phosphate and Oil |
Compatible Equipment
- Generator Sets: 3406C, 3512B, 3516C, 3406B
- Track Loaders: 826K, 824C, 953, 992, 963, 824G, 816F, 826G, 826H, 972, 834H
- Cold Planers: PL87, PL83
- Compactors: 816, 815, 834K, 814, 824K, C-15
- Engines: C27, C32, C15, C18
- Excavators: 320D, 3456, 120 GC, 637E, 3516E, 335, 3516B, 320C, 328D LCR, 329D L, 325B L, 324D L, 325C, 335F LCR, 3508B, 320D L, 3512C, 325D L
- Motor Graders: 140 GC, 120, 140K, 140G, 140H, 12H, 120H, 160K, 12K, 16H
- Wheel Excavators: IT14G
- Dozers: D10, D4E, D7H, D7E, D7G, D7R II, D6T LGP, D7R, D8L, D6R III, D8N, D9L, D6T, D6G2 XL, D7G2, D9N, D7, D6G2 LGP, D6N, D6G
- Wheel Loaders: 972G, 966H, 950, 992C, 966L, 972H, 966K, R1600H, 836, 972L, 910, 980, 966, 834
- Off-Highway Trucks: 793, 789D, 785D, 777, 773, 793D, 773E, 789, 785, 777D, 773D, 793F, 777E, 773F
Additional information
| Machine Model | 120, 120 GC, 120H, 12H, 12K, 140 GC, 140G, 140H, 140K, 160K, 16H, 320C, 320D, 320D L, 324D L, 325B L, 325C, 325D L, 328D LCR, 329D L, 335, 335F LCR, 3406B, 3406C, 3456, 3508B, 3512B, 3512C, 3516B, 3516C, 3516E, 637E, 773, 773D, 773E, 773F, 777, 777D, 777E, 785, 785D, 789, 789D, 793, 793D, 793F, 814, 815, 816, 816F, 824C, 824G, 824K, 826G, 826H, 826K, 834, 834H, 834K, 836, 910, 950, 953, 963, 966, 966H, 966K, 966L, 972, 972G, 972H, 972L, 980, 992, 992C, C-15, C15, C18, C27, C32, D10, D4E, D6G, D6G2 LGP, D6G2 XL, D6N, D6R III, D6T, D6T LGP, D7, D7E, D7G, D7G2, D7H, D7R, D7R II, D8L, D8N, D9L, D9N, IT14G, PL83, PL87, R1600H |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
