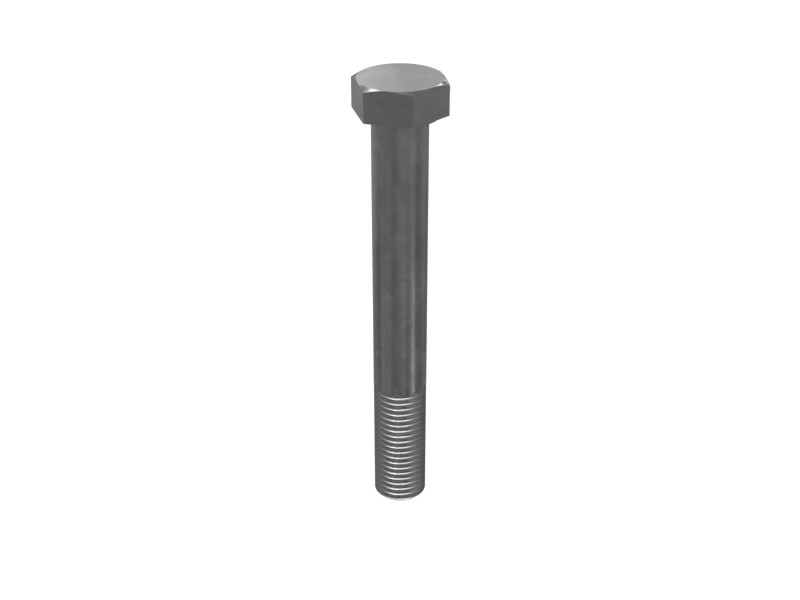

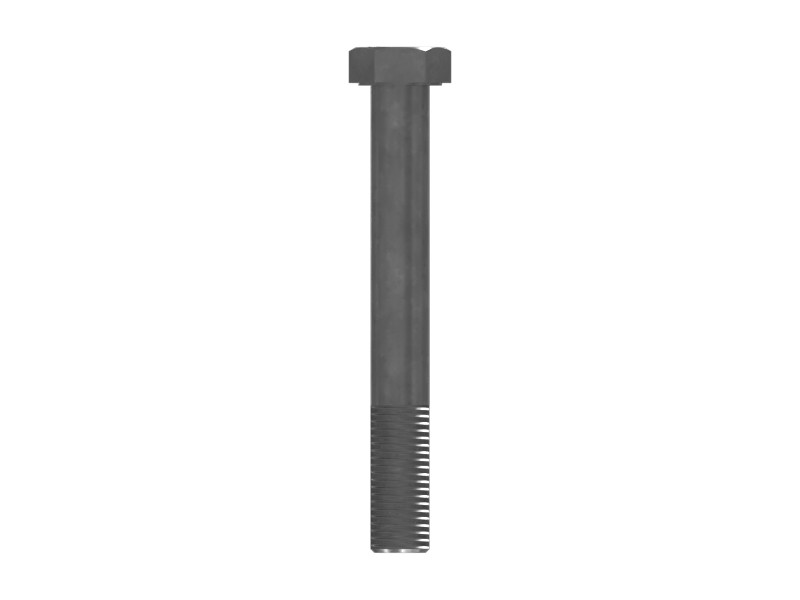

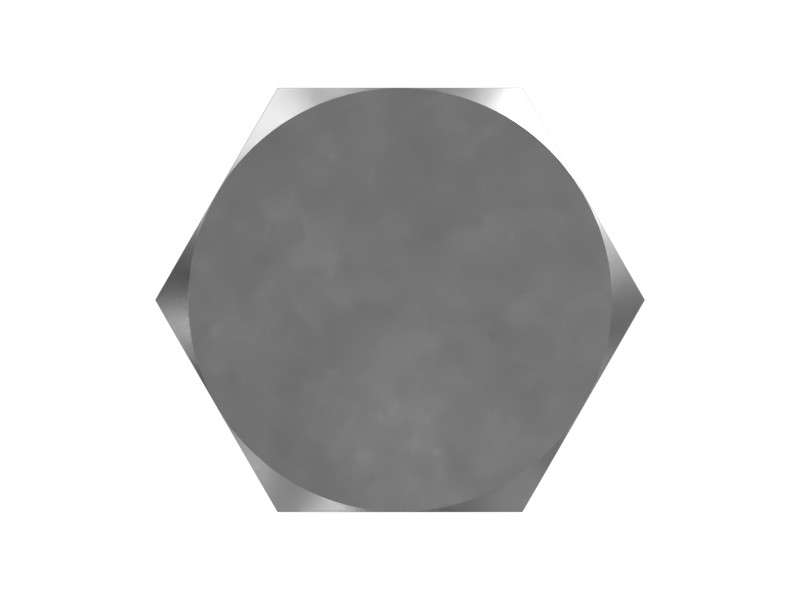

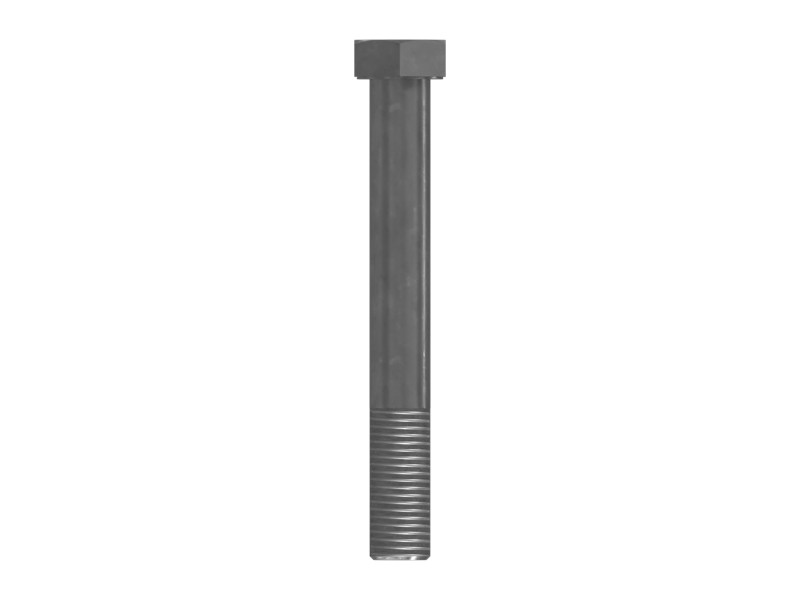

298-2764 MJ24x3 Thread Hex Head Bolt
Cat® C-frame bucket hex head bolt is secured in a threaded hole to provide a firm, reliable connection between two or more components.
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Locking Feature | None |
|---|---|
| Thread Size | M24 mm (0 in) |
| Class or Grade | Cat/ISO 898-1 Class 11.9 |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | M24X3 mm |
| Bolt Length | 190 mm (7.48 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Handle Length | 130 mm (5.118 in) |
Compatible Equipment
- Dozers: D6N, D6M, D5N
- Excavators: 6060
- Skid Steer Loaders: 24
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
