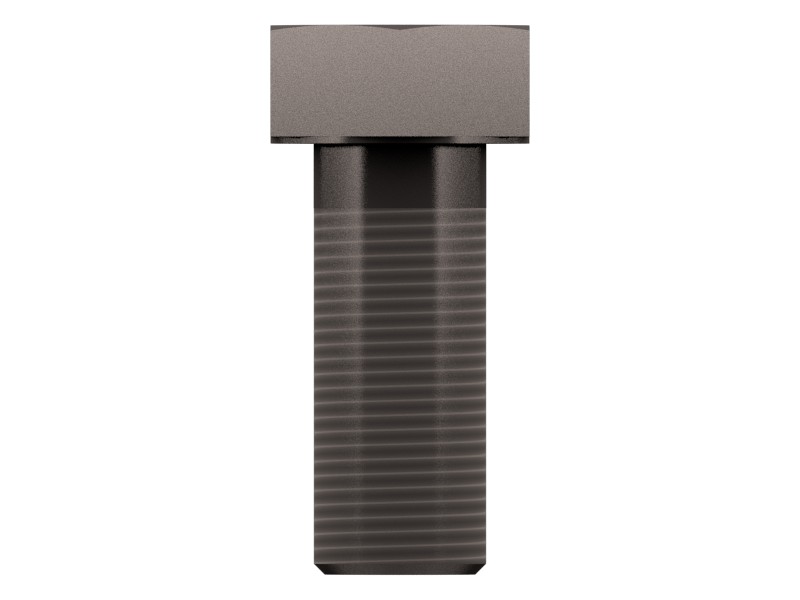

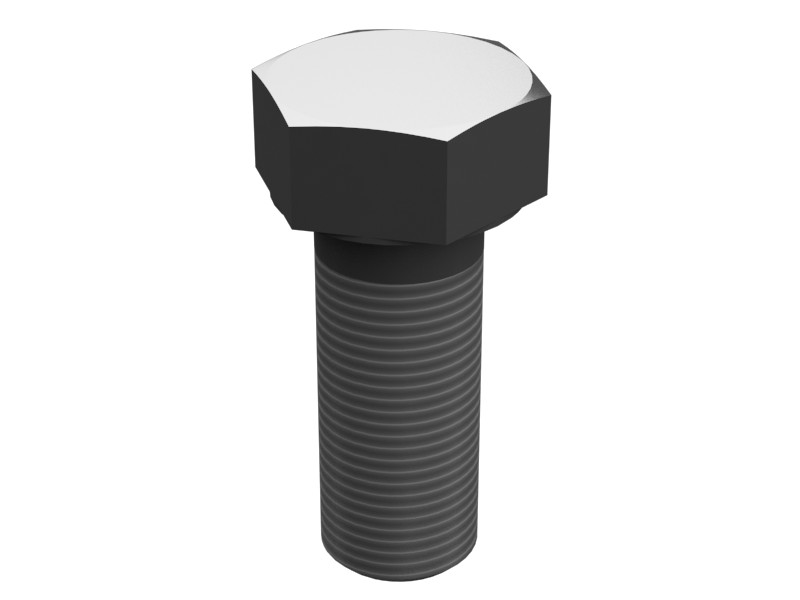

287-5701 M20 Hex Head Bolt

Description

Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

Hex head bolts/screws provide extremely strong tapping performance.

Features

Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
Coating meets the special requirements of different applications (RoHS compliant).

Applications

Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.

Specifications

Locking Feature	None
Thread Direction	RH
Thread Size	M20 mm (0 in)
Class or Grade	Cat/ISO 898-1 Class 11.9
Thread Size (Diameter × Pitch)	M20X2.5 mm
Bolt Length	50 mm (1.969 in)
Bolt Type	Hex Head Bolt
Coating	Zinc Flake
Handle Length	8 mm (0.295 in)
Material	Steel

Compatible Equipment

Generator Sets: 3516C, C9
Track Loaders: 834H, 994K, 826K, 972, 995, 816F
Cold Planers: PL83, PL87
Compactors: 815, 814, 816, 834K, 824K, 825K
Engines: C18
Excavators: 301.7D, 621K, 6020B, 621H, 6015B, 3516B, 6060, 637K, 3516E, 6015, 6030, 6040, 3508B
Asphalt Pavers: AD63
Motor Graders: 14M, 12K, 120, 140K, 14, 160K
Wheel Excavators: MD6310, MD6200, MD6250
Dozers: D10, D10T2, D7R, D9R, D9T, D9, D7
Mini Excavators: 307C, 307D
Wheel Loaders: 966H, 950 GC, 966L, 972G, 966K, 988K, 988H, 972H, 972L, 966, R2900 XE, 836, 834
Off-Highway Trucks: 745, 740 GC, 797F, 793F, 798 AC, 789D, 796 AC, 794 AC, 793, 785, 777, 793D, 735, 789, 730, 773, 740

Machine Model	120, 12K, 14, 140K, 14M, 160K, 301.7D, 307C, 307D, 3508B, 3516B, 3516C, 3516E, 6015, 6015B, 6020B, 6030, 6040, 6060, 621H, 621K, 637K, 730, 735, 740, 740 GC, 745, 773, 777, 785, 789, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 814, 815, 816, 816F, 824K, 825K, 826K, 834, 834H, 834K, 836, 950 GC, 966, 966H, 966K, 966L, 972, 972G, 972H, 972L, 988H, 988K, 994K, 995, AD63, C18, C9, D10, D10T2, D7, D7R, D9, D9R, D9T, MD6200, MD6250, MD6310, PL83, PL87, R2900 XE
Equipment Type	Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets
Part Source	Genuine OEM

Machine Model

120, 12K, 14, 140K, 14M, 160K, 301.7D, 307C, 307D, 3508B, 3516B, 3516C, 3516E, 6015, 6015B, 6020B, 6030, 6040, 6060, 621H, 621K, 637K, 730, 735, 740, 740 GC, 745, 773, 777, 785, 789, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 814, 815, 816, 816F, 824K, 825K, 826K, 834, 834H, 834K, 836, 950 GC, 966, 966H, 966K, 966L, 972, 972G, 972H, 972L, 988H, 988K, 994K, 995, AD63, C18, C9, D10, D10T2, D7, D7R, D9, D9R, D9T, MD6200, MD6250, MD6310, PL83, PL87, R2900 XE

Equipment Type

Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets

Part Source

Genuine OEM
