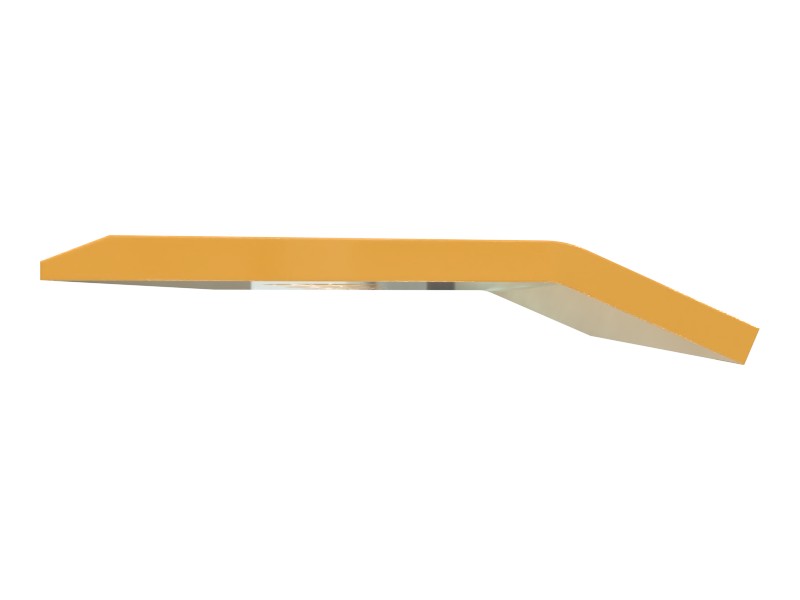

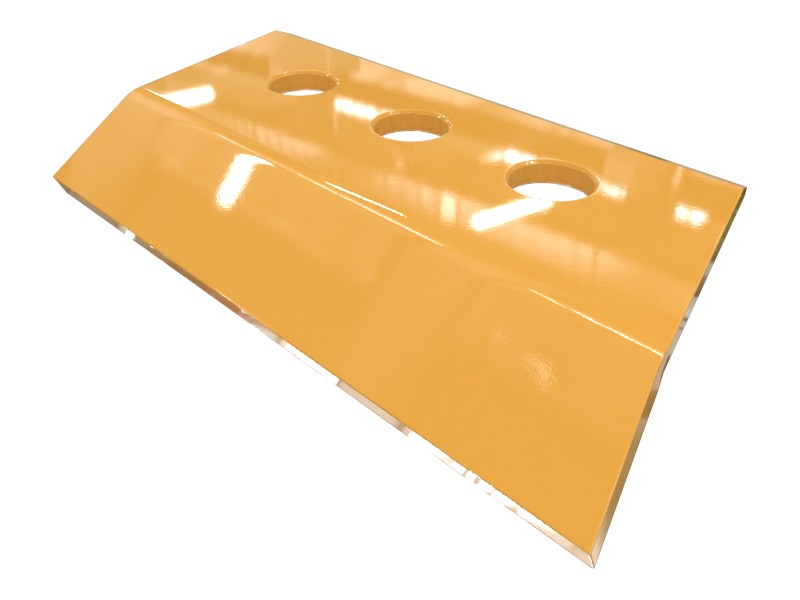

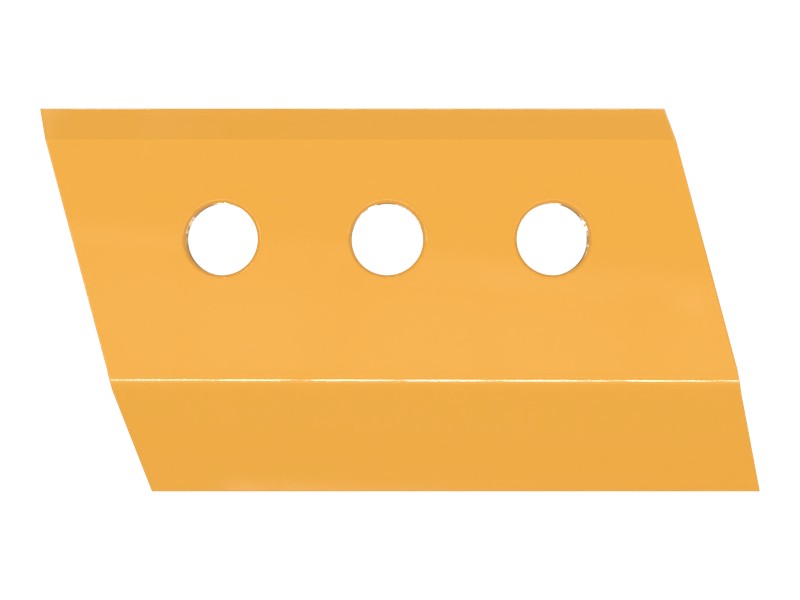

286-2141 Bucket Wear Plate
Cat® Bucket Top-Mounted Steel Wear Plate for Right Cutting Edge
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Bolt-on, top-mounted wear plates protect the bevel and top of the base edge between adapters where end wear is a problem. They also help protect the top adapter strap welds from abrasive wear, which prevents adapter/base edge cracking.
These Cat® right wear plates are made of DH-2 quenched and tempered steel and are used with bolt-on half arrow segments to cover the entire base edge and reduce weld joint wear. They are designed to provide optimal strength and a wear life comparable to half arrow segments, reducing maintenance frequency. With long bolts and nuts, the top wear plates can be installed quickly and easily.
Features
- Tight bolt-on fit reduces wear between parts
- Right plate
Applications
- Medium- to high-abrasion, high-density materials
Specifications
| Number of Holes | 3 |
|---|---|
| Width | 312 mm (12.283 in) |
| Depth | 203 mm (7.992 in) |
| Corner Angle | 15 |
| Attachment Method | Bolt-On |
| Hole Spacing | 85 mm (3.346 in) |
| Bevel Angle | 22.5 |
| Position | RH |
| Wear or Durability | Standard |
| Thickness | 12 mm (0.47 in) |
| Length | 323 mm (12.7 in) |
| End Width | 203.2 mm |
| Material | Boron Steel |
Compatible Equipment
- Wheel Loaders: 980G
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
