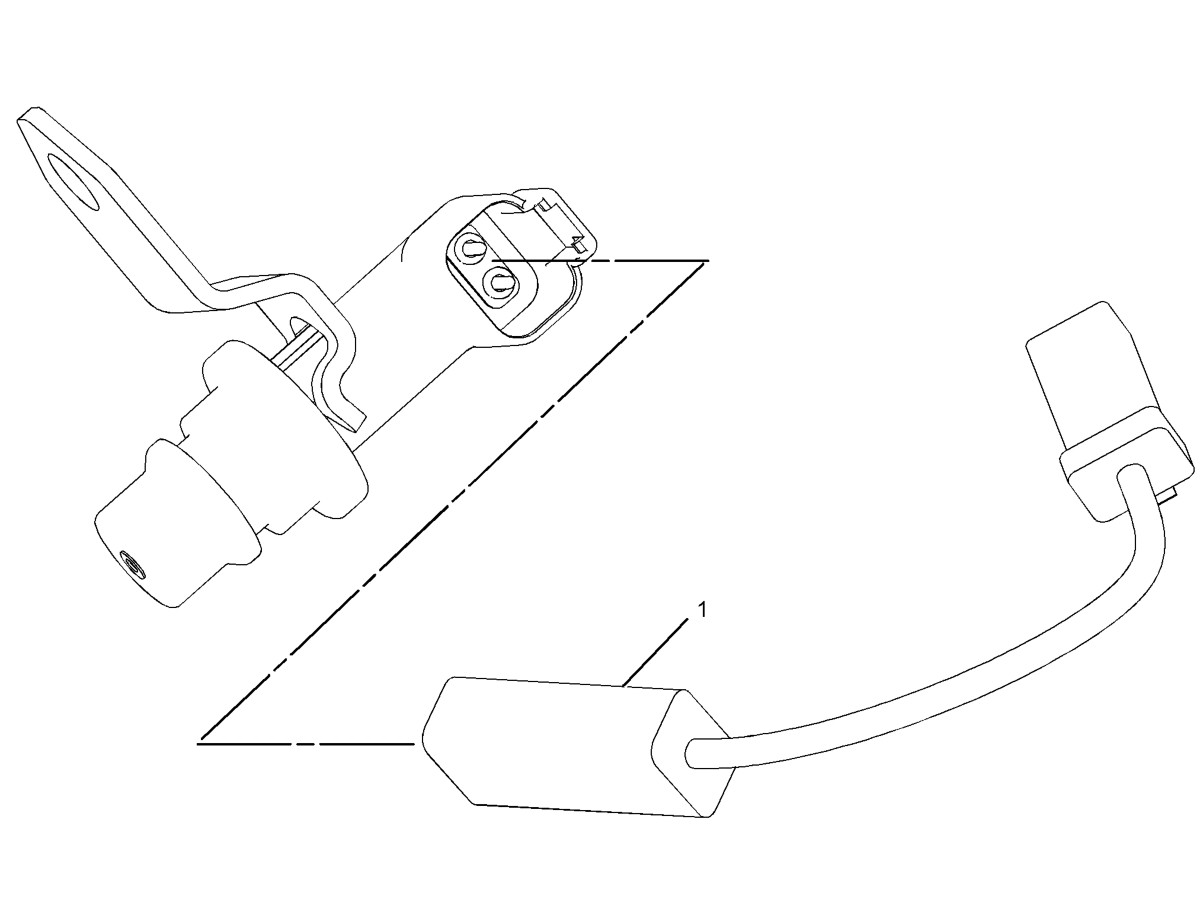

279-9829 Variable Reluctance High Speed Sensor
Cat® High Variable Reluctance Speed Sensor with Ampseal 16-Pin Connector
Description
Cat passive speed sensors do not require any external power supply. The output signal is alternating current, and the waveform function of the actuator is generally sinusoidal in nature. Both voltage and frequency are proportional to the surface speed of the actuator as it passes the sensor pole piece. Injection-molded nylon is applied directly over the magnet and coil.
Features
- High output
- Bolt-on mounting bracket
- Extremely low cost
Applications
- High position accuracy; not recommended for applications below 50 rpm
- Low output voltage
- Typical applications include engine camshaft and transmission output
Specifications
| Overall Length | 65.3 mm (2.57 in) |
|---|---|
| Insert Length | 22.6 mm (0.89 in) |
| Hole Diameter | 18.6 mm (0.73 in) |
| Lead Length | 150 mm (5.91 in) |
Compatible Equipment
- Track Loaders: 990K, 826K, 982, 992, 993
- Cold Planers: PL87, PL83, PM622, PM620
- Compactors: 825K, 824K, 834K, C13B
- Engines: C15, C32, C27, C13, C11, C18
- Excavators: 390F L, 349D2, 349D, 349D2 L, 374F, 349F L, 374, 637K, 345D L, 349D L, 345C L, 621K, 349E L VG, 349E L, 345C, 374F L, 352F, 3508B, 6015B, 6020B, 390F, 345D, 352, 621H, 349, 349E, 6030, 6040, 395, 355, 6015
- Asphalt Pavers: AD45, AD63
- Skid Steer Loaders: 24
- Motor Graders: 18, 16, 14, 16M, 14M, 16M3
- Wheel Excavators: MD6250, MD6310, MD6200
- Dozers: D11T, D9, D10, D8, D8T, D10R, D10T, D10T2, D9T, D8N, D8R
- Wheel Loaders: 988K, 972H, 966H, 834, 980, RM500B, 986H, 980L, R1600H, R1700K, R1700G, R2900 XE, 836
- Off-Highway Trucks: 770G, 740, 773F, 775G, 730, 777D, 745C, 725, 777E, 740B, 735, 745, 772G, 740 GC, 773, 777
Additional information
| Machine Model | 14, 14M, 16, 16M, 16M3, 18, 24, 345C, 345C L, 345D, 345D L, 349, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 3508B, 352, 352F, 355, 374, 374F, 374F L, 390F, 390F L, 395, 6015, 6015B, 6020B, 6030, 6040, 621H, 621K, 637K, 725, 730, 735, 740, 740 GC, 740B, 745, 745C, 770G, 772G, 773, 773F, 775G, 777, 777D, 777E, 824K, 825K, 826K, 834, 834K, 836, 966H, 972H, 980, 980L, 982, 986H, 988K, 990K, 992, 993, AD45, AD63, C11, C13, C13B, C15, C18, C27, C32, D10, D10R, D10T, D10T2, D11T, D8, D8N, D8R, D8T, D9, D9T, MD6200, MD6250, MD6310, PL83, PL87, PM620, PM622, R1600H, R1700G, R1700K, R2900 XE, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines |
| Part Source | Genuine OEM |
