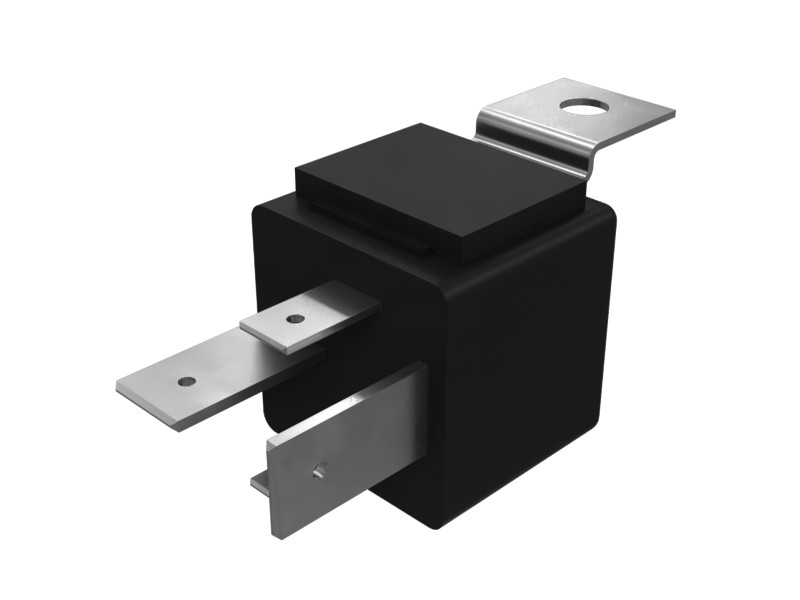

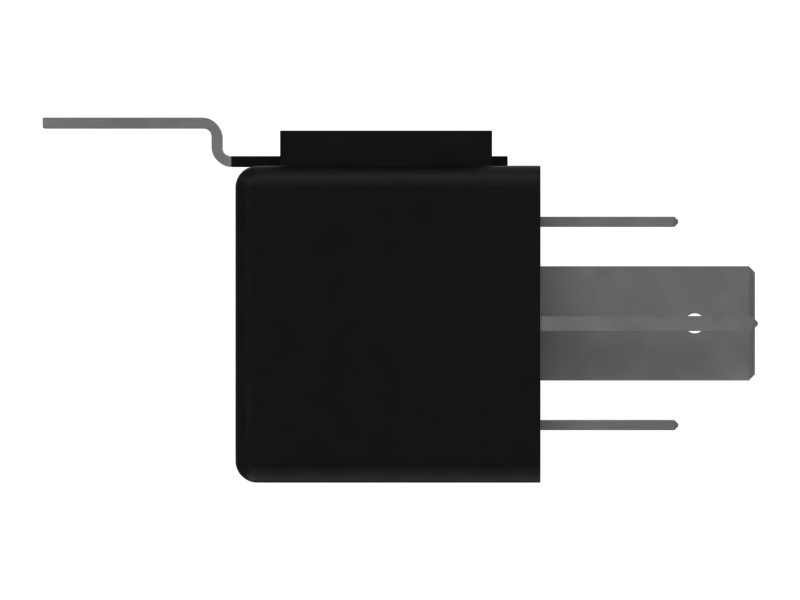

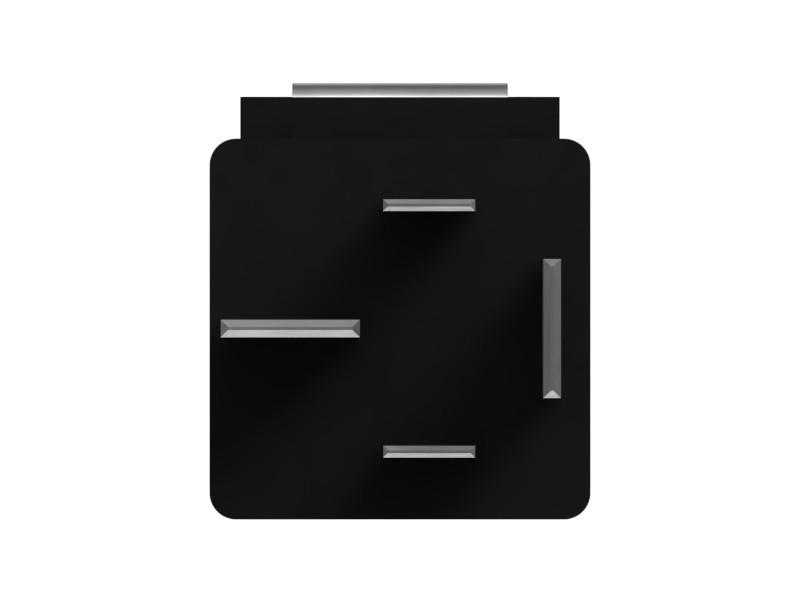

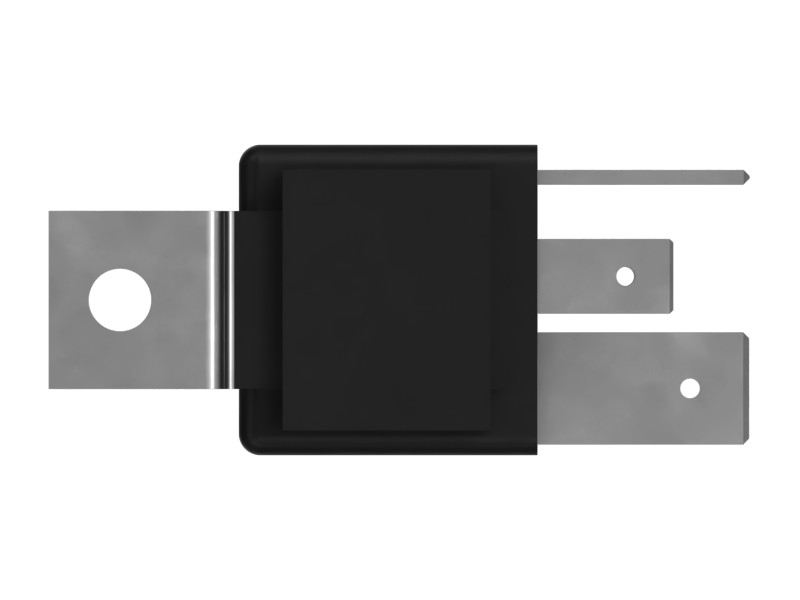

Description
When current is applied to a Cat relay, it energizes an electromagnet. The electromagnet closes the open contacts to energize the circuit. Meets your quality expectations in demanding working environments.
Features
- Rated Voltage: 24 VDC
- Rated Current: 70 A
- Coil Resistance: 288 Ohms
- ROHS compliant
- 4-Lug connection
- Dustproof
- Fast switching speed
- Low thermal conductivity
- Highly durable
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Nylon, 6, 6/12, 6/6 Plastic |
|---|---|
| Length | 59.2 mm (2.33 in) |
| Width | 26.2 mm (1.03 in) |
| Height | 30.2 mm (1.19 in) |
Compatible Equipment
- Wheel Excavators: M315GC, M315, M320
- Excavators: 313 GC, 313, 316 GC, 374, 336, 323, 352, 330GC, 330 GC, 355, 323GC, 320 GC, 325, 350, 323 GC, 340, 320D3 GC, 315 GC, 312 GC, 326, 320, 335, 315, 320D L, 316 GX, 312 GX, 350MHPU, 3101, 320D3, 313 GX, 333, 336 GC, 395, 323 GX, 349, 345 GC, 320 GX, 333 GC, 326 GC, 313D2, 326GC, 330, 320D
- Wheel Loaders: M314
Additional information
| Machine Model | 3101, 312 GC, 312 GX, 313, 313 GC, 313 GX, 313D2, 315, 315 GC, 316 GC, 316 GX, 320, 320 GC, 320 GX, 320D, 320D L, 320D3, 320D3 GC, 323, 323 GC, 323 GX, 323GC, 325, 326, 326 GC, 326GC, 330, 330 GC, 330GC, 333, 333 GC, 335, 336, 336 GC, 340, 345 GC, 349, 350, 350MHPU, 352, 355, 374, 395, M314, M315, M315GC, M320 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
