Description

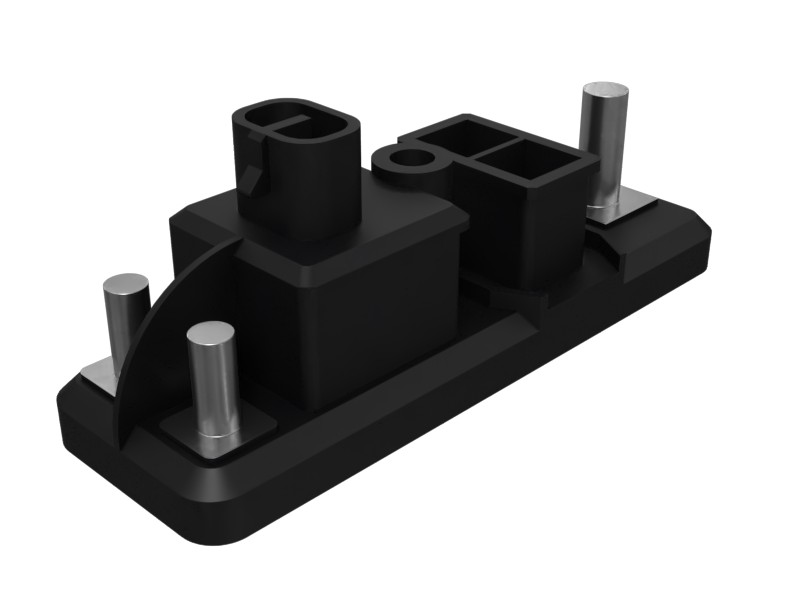

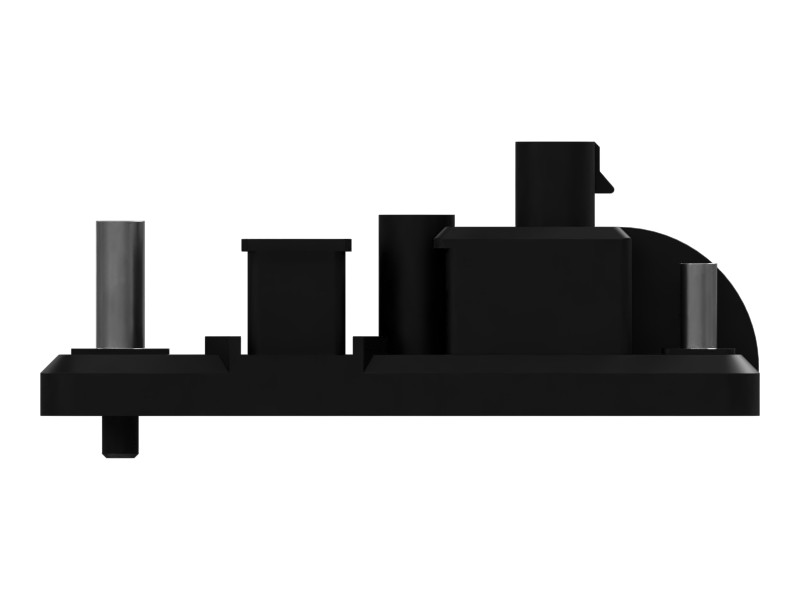

When current is applied to a Cat relay, it energizes an electromagnet. The electromagnet closes the open contacts to energize the circuit. Meets your quality expectations in demanding working environments.
Features
- Rated PRM: 70 A, 12 VDC
- Input Stud: M8
- Output Stud: M6
- 2-pin relay signal connector
- Counter-rotation feature (CRF)
Applications
Used to turn components on or off in the electrical systems of heavy-duty equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Length | 121.21 mm (4.77 in) |
|---|---|
| Width | 40 mm (1.57 in) |
| Height | 57.9 mm (2.29 in) |
Compatible Equipment
- Compactors: CB2.5, CB-24B, CB-36B, CC-34B, CB-34B, CB2.9, CB2.7
