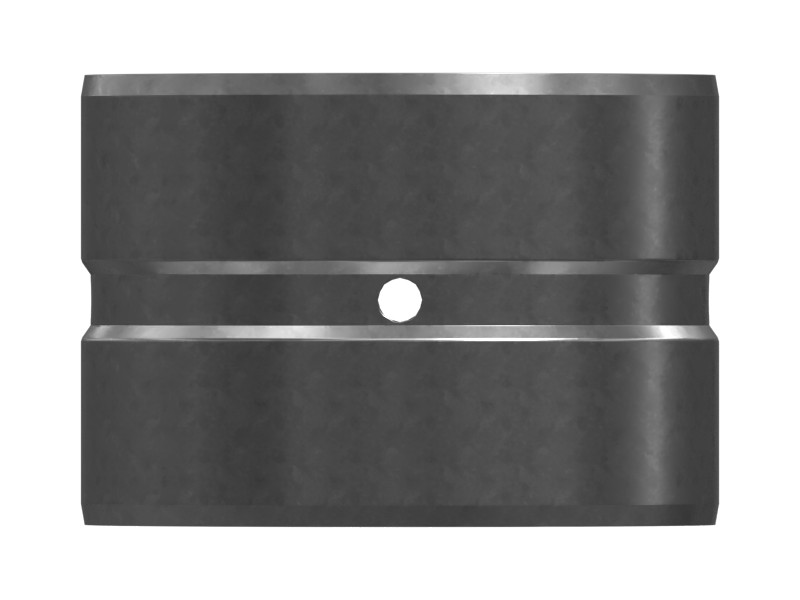

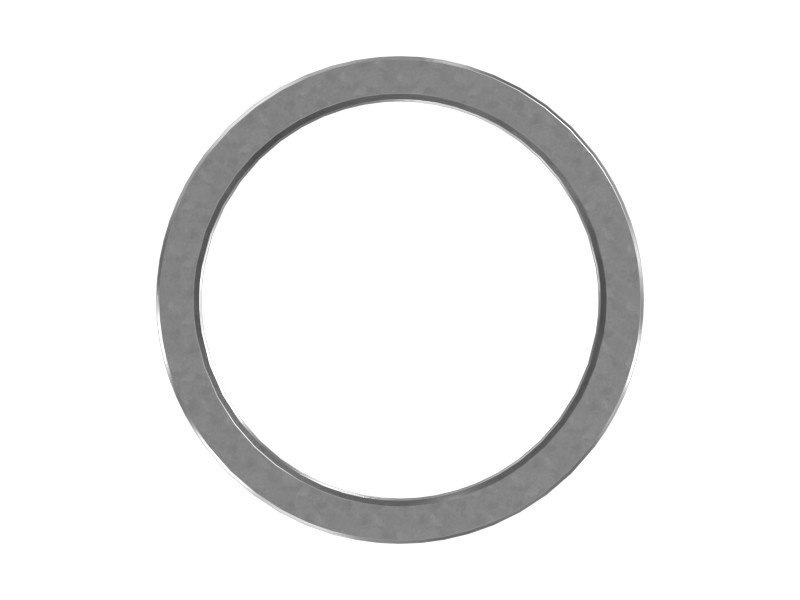

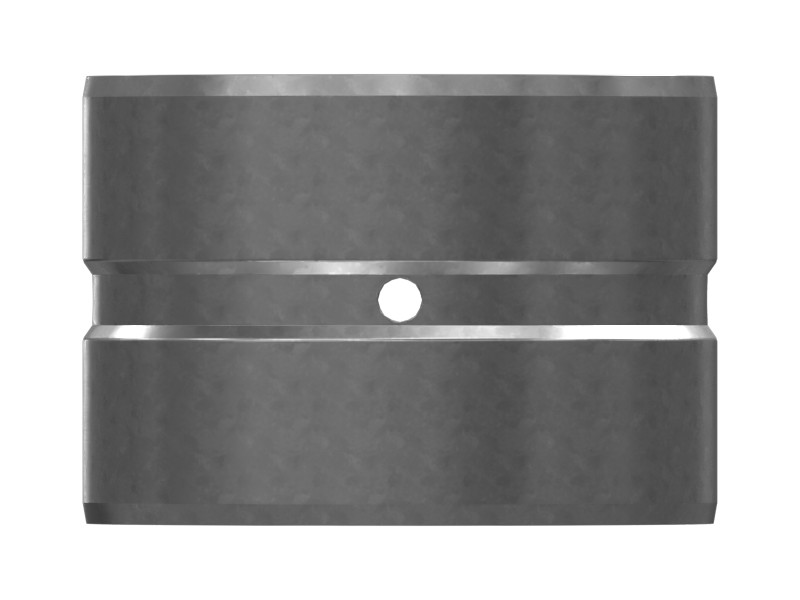

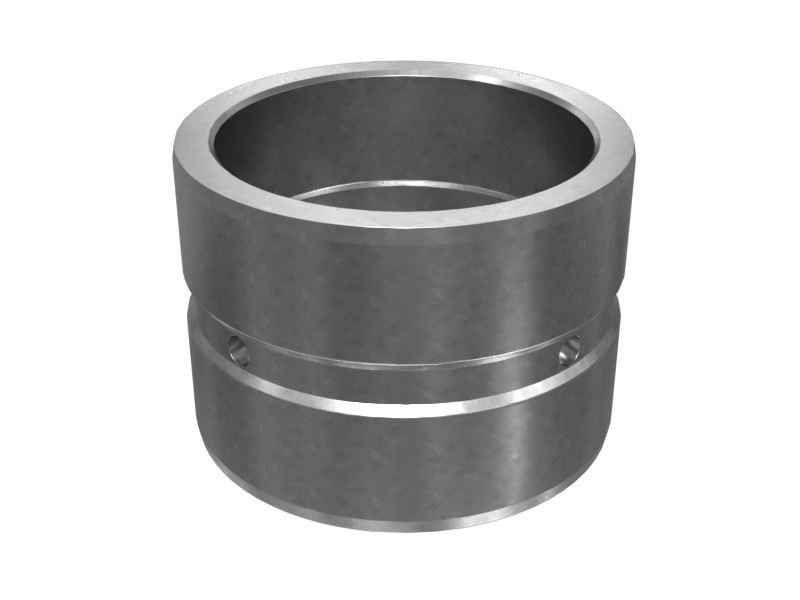

248-7857 85.16 mm Straight Sleeve Bearing

Description

A straight sleeve bearing is a sliding contact bearing in which the surface of the shaft slides on the surface of the bushing. It consists of a cylindrical sleeve with a smooth inner surface that allows the shaft to rotate within it with minimal friction. Oil grooves cut into the bearing surface help distribute oil between the friction surfaces.

Attributes

Designed to minimize friction between the shaft and bearing surfaces
Accommodates misalignment between shaft and bearing surfaces
Comes with 4 oil holes of size 6 mm
High resistance to shock loads, minimizing vibration (and therefore noise)

Applications

Straight sleeve bearings are suitable for applications where press-fitting into a housing bore is the most practical method of bearing retention. They are used in crankshaft bearings of gasoline and diesel engines, centrifugal pumps, and large electric motors.

Specifications

Ferrule Outside Diameter	85.16 mm (3.353 in)
Unique Features	No
Cross Hole	Yes
Ferrule Inside Diameter	70.17 mm (2.763 in)
Inside Diameter	70 mm (2.76 in)
Outside Diameter	85 mm (3.35 in)
Overall Length	60 mm (2.36 in)

Compatible Equipment

Motor Graders: 316F
Excavators: 320, 313F L, 312D, 313D2, 320D2 L, 320D L, 312E L, 318D2 L, 325D L, 313D, 314D LCR, 312D2, 326, 329D L, 324D L, 329E L, 314D CR, 324D, 333, 320E, 323, 320C, 311C, 313D2-GC, 312D2 L, 320D2 GC, 312C L, 315D L, 323D2 L, 311D LRR, 312D L, 312F, 318D2, 314C, 315, 323 GX, 312C, 325C L, 312E, 329E, 318D L, 313D2 GC, 313F LGC, 330C L, 312D2 GC, 315F LCR, 320D2, 326D2 L, 329D, 320D, 329D2 L, 326D2, 329D2, 330
Skid Steer Loaders: 313D2 LGP

Machine Model	311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313D, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 313F L, 313F LGC, 314C, 314D CR, 314D LCR, 315, 315D L, 315F LCR, 316F, 318D L, 318D2, 318D2 L, 320, 320C, 320D, 320D L, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323 GX, 323D2 L, 324D, 324D L, 325C L, 325D L, 326, 326D2, 326D2 L, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330C L, 333
Equipment Type	Excavators, Skid Steer Loaders, Motor Graders
Part Source	Genuine OEM

Machine Model

311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313D, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 313F L, 313F LGC, 314C, 314D CR, 314D LCR, 315, 315D L, 315F LCR, 316F, 318D L, 318D2, 318D2 L, 320, 320C, 320D, 320D L, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323 GX, 323D2 L, 324D, 324D L, 325C L, 325D L, 326, 326D2, 326D2 L, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330C L, 333

Equipment Type

Excavators, Skid Steer Loaders, Motor Graders

Part Source

Genuine OEM
