Description

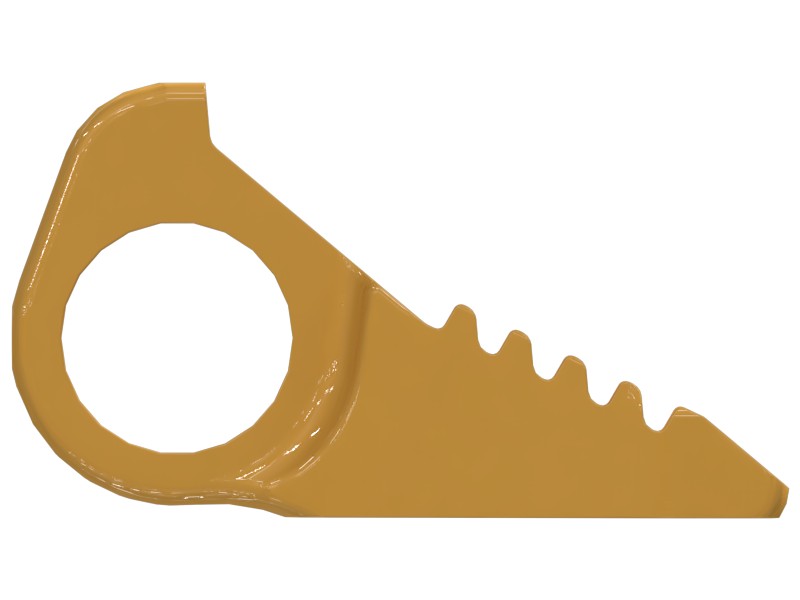

The split master link of the track link makes it easy to remove and install the track without a master pin and master bushing. The split master link has the same wear life as a regular link, with the same strength and hardness, and is fully serviceable and reusable.
Features
Cat® Sealed and Lubricated Track (SALT) seals lubricant inside the undercarriage system and keeps abrasives out. It eliminates internal pin and bushing wear, reducing maintenance costs and downtime while increasing service life and serviceability. Combined with a track design matched to the machine and working environment, SALT provides a versatile undercarriage configuration for a wide range of ground conditions.
Specifications
| Master Link Type | 5 Tooth Master Link |
|---|---|
| Main Bolt Thread | 0.625 |
| Wear Sensor | None |
| UC System – Designed For | General Duty |
| Lug Thickness | 0 mm (0 in) |
| Hole to Rail | 67 mm (2.638 in) |
| Pin Retention System | Press Fit |
| Steel Grade | 1E1287 |
| Bolt Hole Diameter | 19 mm (0.748 in) |
| Bushing End Bar Thickness | 23 mm (0.906 in) |
| Bushing Bore Diameter | 61 mm (2.402 in) |
| Track Link Crown Height | 0 mm (0 in) |
| Track Pitch | 190.5 mm (7.5 in) |
Compatible Equipment
- Track Loaders: 953D, 953K
- Dozers: D5H
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
