Description

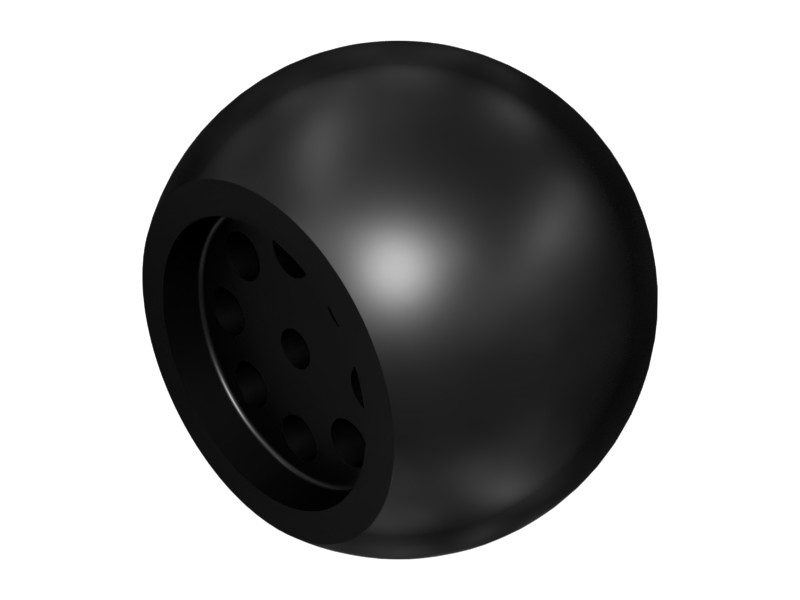

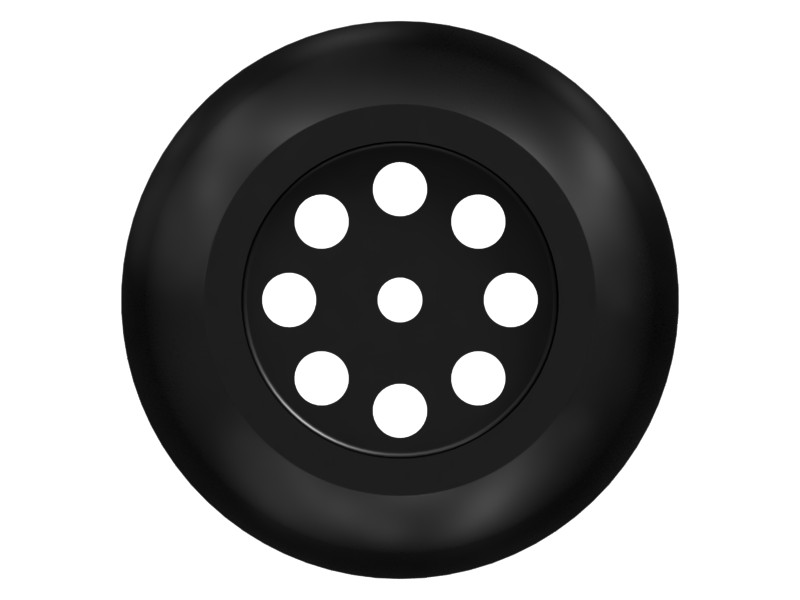

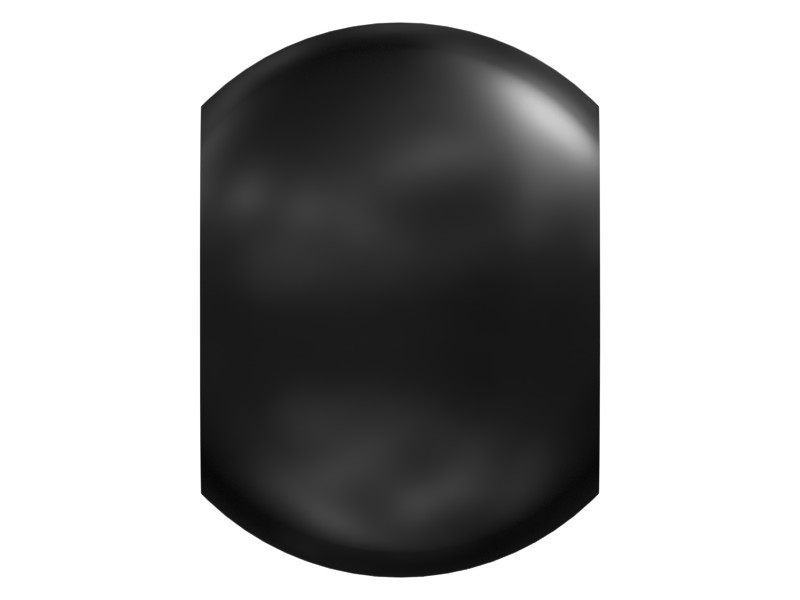

Ball for the drawbar and yoke group that provides primary support for the circle and blade assembly on some motor grader models.
Features
- Hardened Steel Ball
- Ball Diameter: 265 mm (10.43 in)
- Bore Diameter: 149.33 mm (5.88 in)
- Thread Size: M24X3
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Diameter | 265 mm (10.43 in) |
|---|---|
| Material | Steel |
| Hole Diameter | 149 mm (5.88 in) |
| Height | 190 mm (7.47 in) |
| Hole Size | 26 (8X) mm (1.02 (8X) in) |
| Thread Size | M24X3 mm |
Compatible Equipment
- Skid Steer Loaders: 24
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
