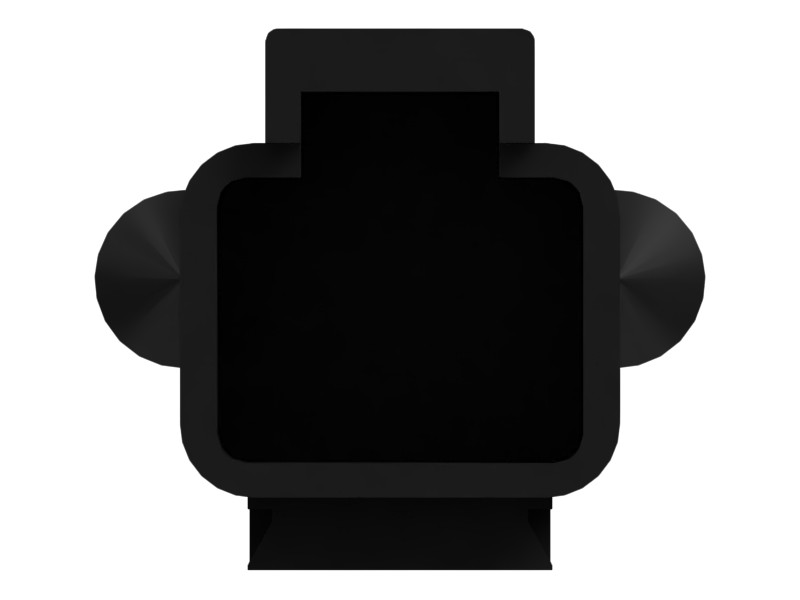

Description
Cat plug group connectors provide a pin and socket connection system for extremely durable, sealed electrical connections in Cat heavy-duty equipment
Features
- Nylon 1-key, 2-pin connector plug
- Black plug body
- Red terminal position assurance feature
- Blue perimeter seal
- Light gray wire seal
- Durable and long-lasting
Applications
Cat connector plug groups use reliable wires between wires or between a wire and equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Nylon, 6, 6/12, 6/6 Plastic |
|---|---|
| Overall Depth | 20.3 mm (0.8 in) |
| Pin | 2 |
| Wire Gauge | 14-18 AWG |
| Material Description | Nylon |
| Connector Type | 2 Pin |
| Overall Length | 34.3 mm (1.4 in) |
| Overall Width | 23.5 mm (0.9 in) |
Compatible Equipment
- Generator Sets: G3516, C4.4DE88E0, C4.4, C7.1, C9, G3516C
- Track Loaders: 953, 982, 972, 963, 973K, 995, 826K, 953K, 963K, 994K
- Cold Planers: PM622, PM620, PL83, PL87, PL72, PL61
- Compactors: 816, 815, 814, CP56B, CP12 GC, CB2.9, CB2.5, CB2.7, CS68B, CS12 GC, CS78B, CS56B, CS74B, CP11 GC, CS7, 825K, 824K, CS12, CB16, 834K, C9.3B, CW-16, C13B, CB10, CB13, CB15, C-9
- Engines: C13, C15, C7, C6.6, C18
- Excavators: 330, 305, 374F, 390F L, 320D, 313, 374, 313 GC, 349F L, 316 GC, 323 GX, 350, 323, 323 GC, 320 GC, 315 GC, 395, 120 GC, 336, 326, 352, 305 CR, 345 GC, 349, 6015, 330GC, 336 GC, 637K, 315, 323GC, 349E L, 355, 340, 330 GC, 320 GX, 320, 326 GC, 621K, 313D2, 333, 325, 320D3, 320D3 GC, 335, 349E, 336F, 336F L, 312E L, 336F L XE, 336F LN, 326GC, 349E L VG, 312 GC, 320D L, 312E, 3508B, 432, 374F L, 390F, 352F, 6060, 6020B, 434F2, 6040, 350MHPU, 333 GC, XQP200, 621H, 3516B, 313 GX, 312 GX, 316 GX, 335F LCR, 416F2, 6015B, 3516E, 3101
- Asphalt Pavers: AD63, AD45
- Skid Steer Loaders: 249D3, 239D3, 236D3, 232D3, 226D3
- Motor Graders: 14, 140 GC, 120, 16M3, 18, 16, 349 GC
- Wheel Excavators: M315, M315GC, M320, MD6200
- Dozers: D9, D4, D7, D8T, D10R, D6K2, D7E, D6T LGP, D6T, D1, D8, D9T, D10, D11, D5K2 XL, D3K2 LGP, D6N
- Mini Excavators: 310, 308
- Wheel Loaders: 836, 834, 980, 950, R2900 XE, M314, 988K, 926M, 966H, 950H, 972H, 962L, 950 GC, 938K, 938M, 950L, RM500B, RM400, 910, 966, 906K, 966L, 972L, 980L, R1700K, 924K
- Off-Highway Trucks: 797F, 789D, 773F, 793F, 730, 772G, 775G, 777, 789, 796 AC, 798 AC, 794 AC, 745C, 785, 773, 770G, 745, 740 GC, 725, 735, 793D, 740, 777E, 793, 725C2
