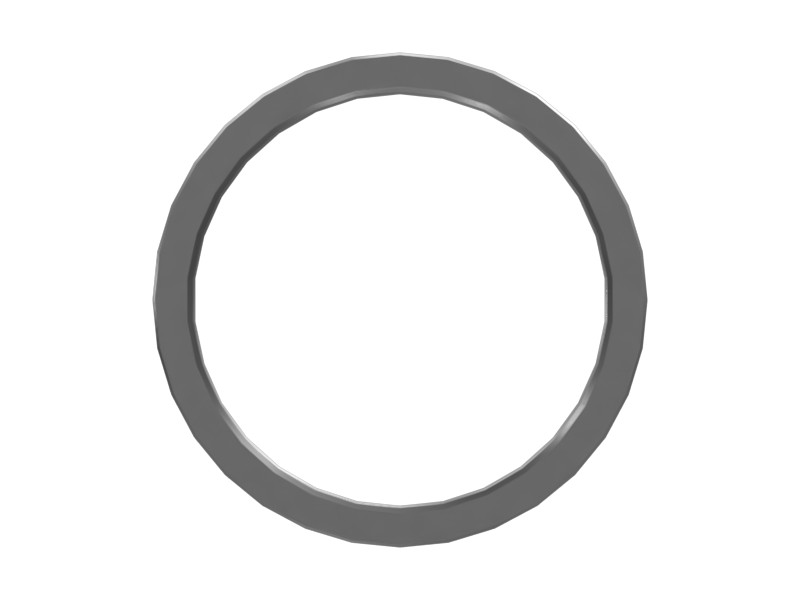

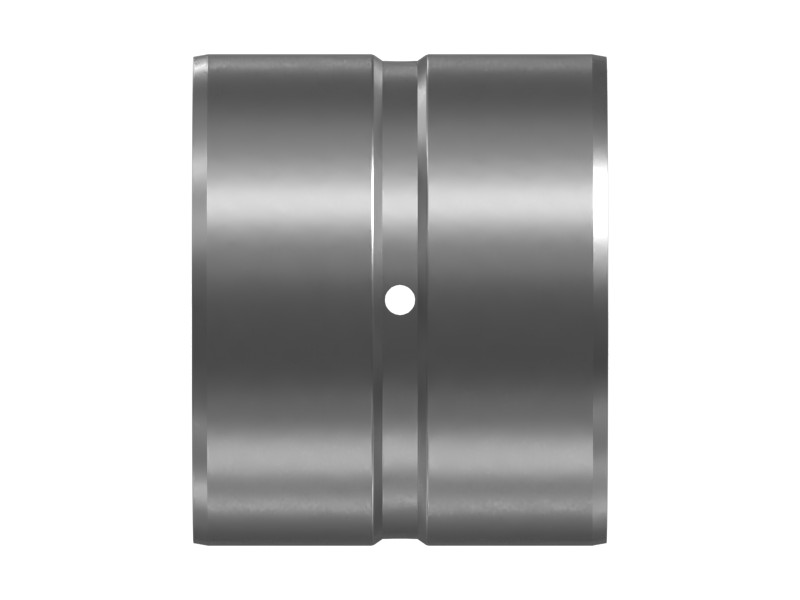

240-2913 95.18 mm OD Sleeve Bearing
Cat® 95.18 mm OD 80 mm long sleeve bearing for stick work tools
Description
Cat® machine linkage sleeve bearings support pivoting between the frame, linkage and work tools. These components are most commonly used in machine booms and buckets. Genuine Cat pins and sleeve bearings are specially designed to work together as a system to deliver the performance you expect. Caterpillar design engineers match each part with the right combination of size, material, surface treatment and manufacturing process so it works effectively and wears in step with all other adjacent and dependent parts.
Features
Cat heavy-duty sleeve bearings are made from advanced steel and hardened for exceptional hardness and wear life. They work as a system on specific Cat machines and are tested and proven in the world's toughest applications. These bearings offer a lower overall cost, outstanding strength and fatigue life and superior wear resistance, while providing exceptional protection against wear, even under high-load conditions.
Recommended Applications:
Cat sleeve bearings are designed for situations that require durability and load strength to extend bearing life. Cat sleeve bearings are the first choice for maximizing performance in demanding applications. They are designed to match mating pins.
Specifications
| Cross Hole | Yes |
|---|---|
| Ferrule Outside Diameter | 95.18 mm (3.747 in) |
| Ferrule Inside Diameter | 80.2 mm (3.157 in) |
| Unique Features | No |
| Length | 80 mm |
| Remarks | Radial Hole: Yes |
| Description | Steel Bearing – Special Heat Treatment |
| Internal Groove | Yes |
| External Groove | Yes |
| Inside Diameter | 80 mm (3.16 in) |
| Outside Diameter | 95 mm (3.75 in) |
| Overall Length | 80 mm (3.15 in) |
| Material | — |
| Type | Straight Sleeve |
Compatible Equipment
- Motor Graders: 316F
- Excavators: 330D L, 313D2, 320 GC, 320, 323 GC, 323, 320E, 320C, 320D FM, 323D, 323D L, 320D L, 323D2 L, 325, 336D2 L, 312D2, 325D L, 318D2 L, 320D2 L, 313D, 312D, 320D2 GC, 318D L, 320D RR, 312D2 L, 315C, 320B, 311D LRR, 313D2 GC, 314D LCR, 325B L, 315F LCR, 320D GC, 325C, 313D2-GC, 320C L, 312D L, 336D L, 324D, 318D2, 315D L, 314D CR, 324D L, 323GC, 325D, 330C, 313F L, 323D2, 312D2 GC, 312E L, 312E, 352F, 345C L, 345B, M325D L MH, 320D, 320D2, 336D2, 330
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 311D LRR, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 313F L, 314D CR, 314D LCR, 315C, 315D L, 315F LCR, 316F, 318D L, 318D2, 318D2 L, 320, 320 GC, 320B, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323 GC, 323D, 323D L, 323D2, 323D2 L, 323GC, 324D, 324D L, 325, 325B L, 325C, 325D, 325D L, 330, 330C, 330D L, 336D L, 336D2, 336D2 L, 345B, 345C L, 352F, M325D L MH |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
