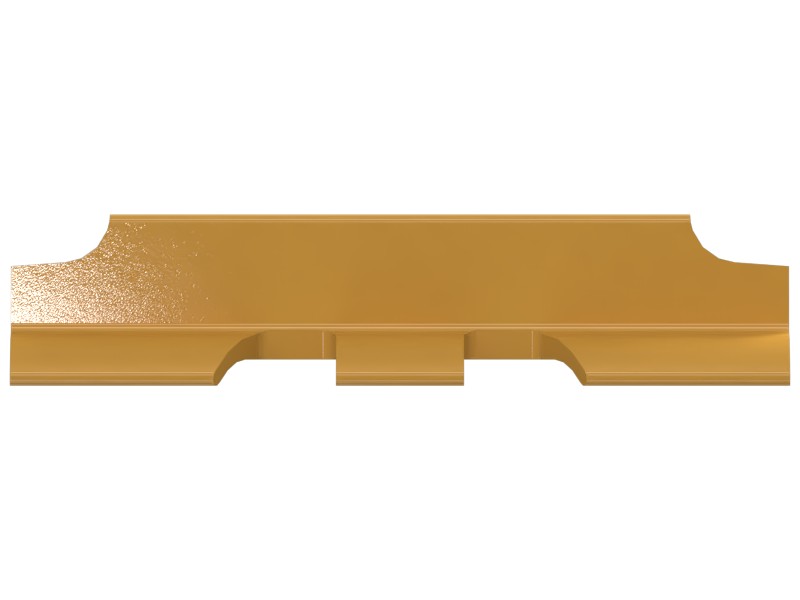

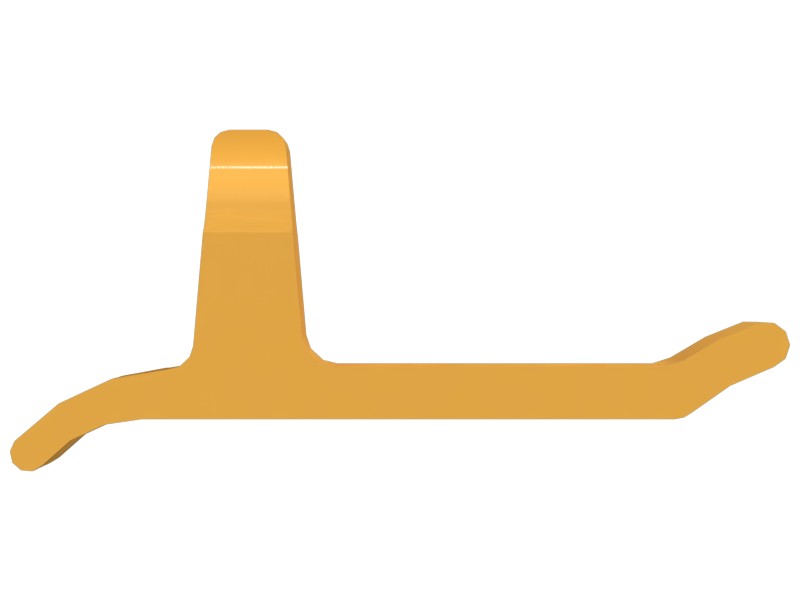

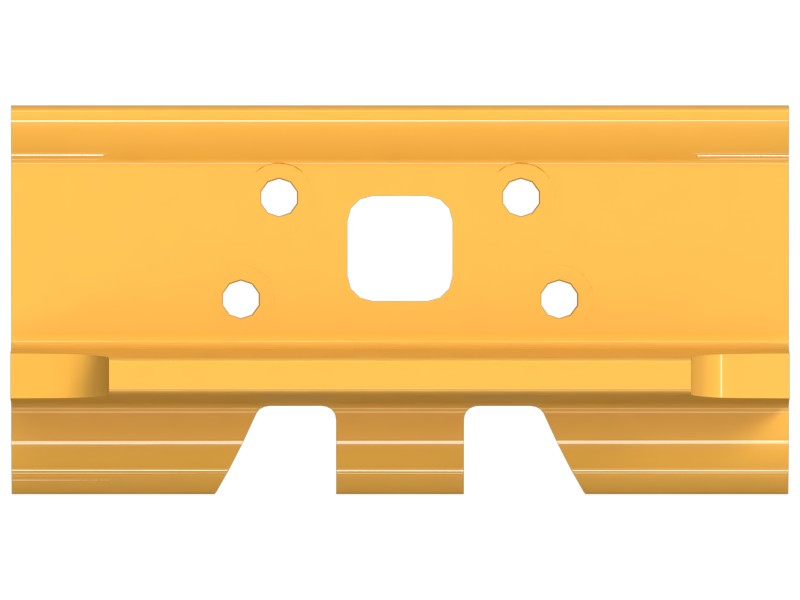

234-6029 Track Shoe
Cat® master track shoe for extreme duty delivers superior durability and performance in the most challenging and demanding tracked machine applications.
Description
The master track shoe designed for extreme duty is a heavy-duty, rugged component used in tracked machine undercarriage system assemblies. It is made of high-strength materials to withstand the harshest working conditions. This specialized track shoe features a robust design with reinforced components.
Attributes
- Designed for exceptional durability.
- Provides superior traction and stability.
- Resists wear in harsh conditions.
- Protects undercarriage system components from damage.
Applications
Master track shoes for extreme duty deliver outstanding durability, traction, and load-carrying capacity, enabling tracked machines to perform well in rugged and demanding environments while protecting undercarriage system components from damage and ensuring reliable, efficient performance.
Specifications
| Track Reinforcement System | None |
|---|---|
| Track Bolt Thread | None |
| Number of Grousers | Single |
| Main Bolt Thread | 1.125 |
| Shear | Yes |
| Abrasion Resistant Material | 0 ARM |
| Offset | None |
| Connector Type | 5T Master |
| Hole Type | Square |
| Undercarriage System | HD |
| Track Shoe Width | 610 mm (24 in) |
| Track Shoe Type | Extreme Duty, Single Grouser, Trapezoidal, Shear |
| Material | Boron Steel |
| Track Shoe Bolt Hole Spacing A | 80 mm |
| Track Shoe Bolt Hole Spacing C | 250 mm |
| Bolt Hole Diameter | 29.9 mm (1.177 in) |
| Track Shoe Section 1E Specification | 1E1449 |
| Track Shoe Bolt Hole Spacing B | 190 mm |
| Plate Thickness | 20.5 mm (0.807 in) |
Compatible Equipment
- Dozers: D10T, D10T2, D10R, D10
