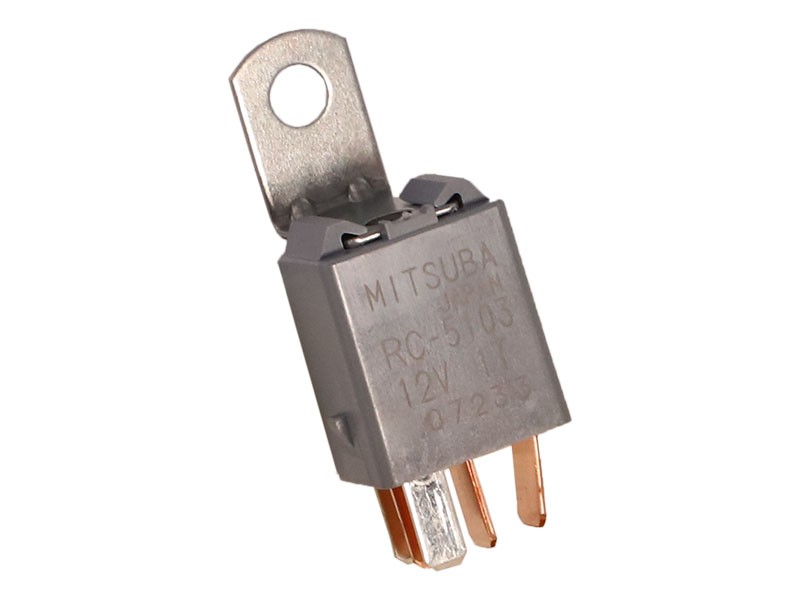

Description
When current is applied to a Cat relay, it energizes an electromagnet. The electromagnet closes the open contacts to energize the circuit. Meets your quality expectations in demanding working environments.
Features
- Rated Voltage: 12 VDC
- Rated Load: 20 A (continuous), 50 A (30 seconds)
- 5-Lug connection
- Fast Switching Speed
- Low thermal conductivity
- Highly durable
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Overall Length | 60.96 mm (2.4 in) |
|---|---|
| Overall Width | 27.94 mm (1.1 in) |
| Overall Height | 25.4 mm (1 in) |
Compatible Equipment
- Mini Excavators: 305.5, 306
- Excavators: 313F LGC
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
