Description
Cat® K Series adapters offer unmatched manufacturing precision to protect your machine's bucket from damage. Our ground engaging tools (GET) are designed around the inherent characteristics of your Cat equipment to deliver consistent, superior protection.

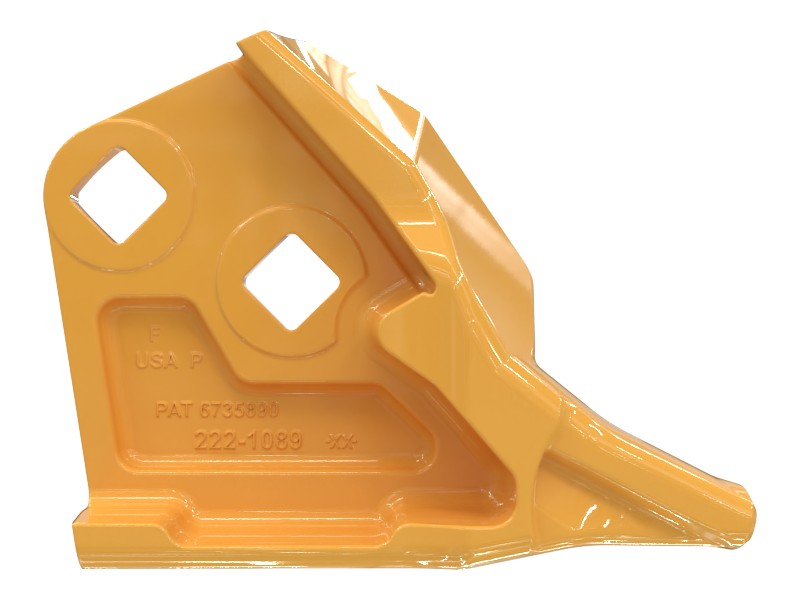

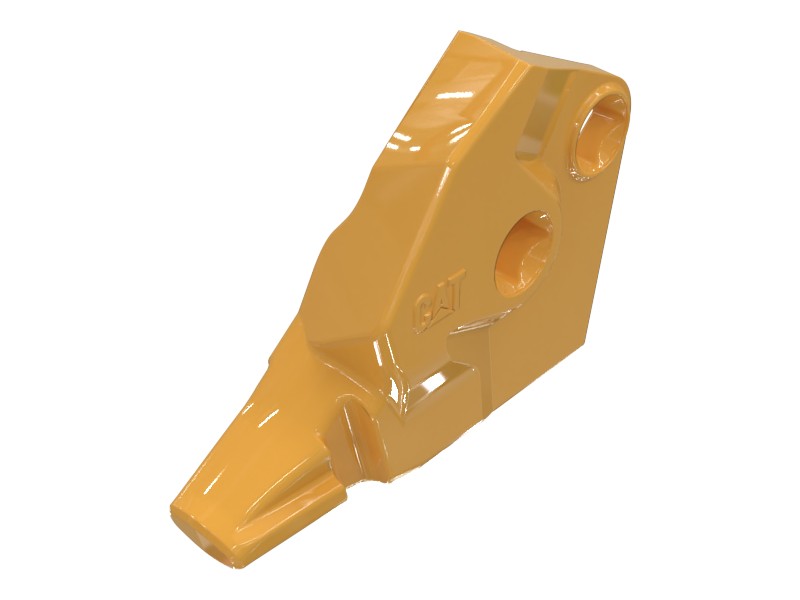

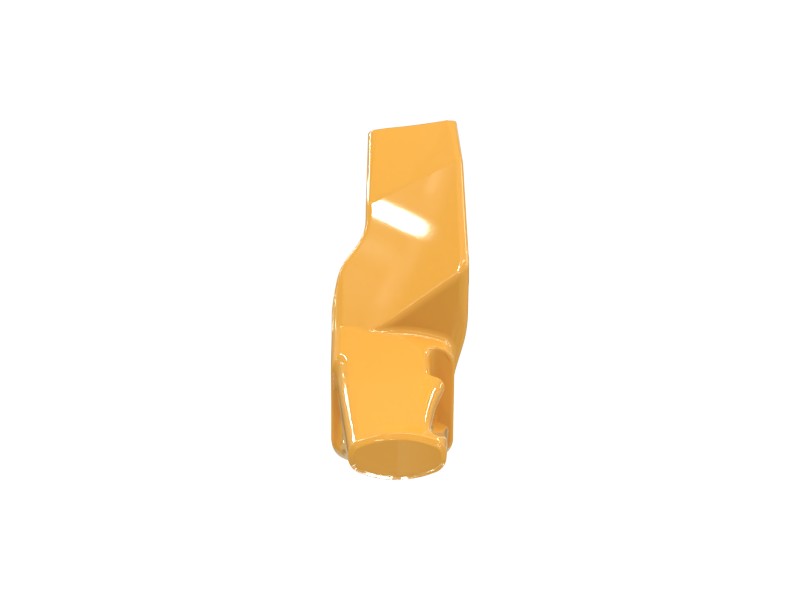

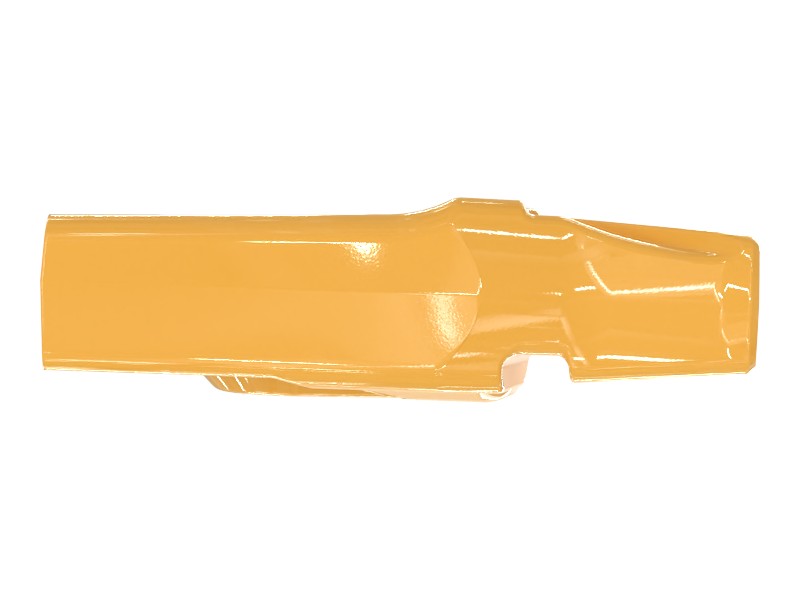

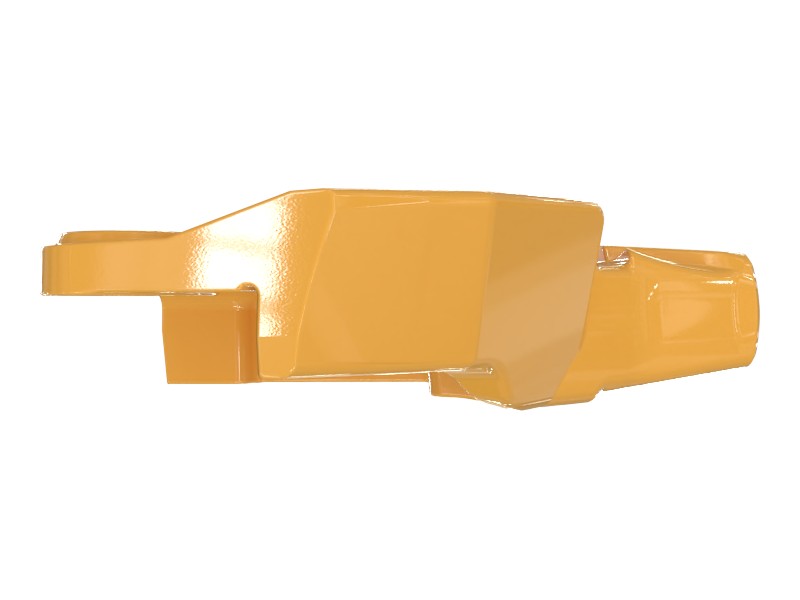

Cat® corner shroud adapters provide excellent corner protection along with all of the added penetration benefits of bucket teeth.
Our adapters are durable and cast from steel that holds its hardness, providing long wear life so your machine delivers the performance you need. Always choose Genuine Cat bucket G.E.T. to protect your investment.
Features
- K80 left bolt-on corner shroud adapter fits a 32 mm cutting edge with a 22.5 degree bevel angle
Applications
- Wheel Loader Buckets
Specifications
| Type | Bolt-On Two Strap |
|---|---|
| Size | K80 |
| Series | K Series |
| Adapter Size | K80 |
| Hole Size | 1-1/4-in Plow Bolt (36.5 mm square) |
| Hole Spacing | 101 mm |
| Corner Stop Angle | 2 |
| Overall Length | 369 mm (14.528 in) |
| Attachment Method | Bolt-On |
| Width | 104.3 mm (4.106 in) |
| Number of Holes | 2 |
| Bevel Angle | 22.5 |
| Bottom Bar Length | 0 mm (0 in) |
| Base Edge Thickness Grade | 25/32 |
| Wear or Durability | Standard |
| Machine Model | Loader |
| Attachments | Bolt-On |
| Wear Material | Standard Optional |
Compatible Equipment
- Track Loaders: 953D, 953K, 963D, 963K, 963
- Wheel Loaders: 950H, 962L, 950L, 950 GC
