Description

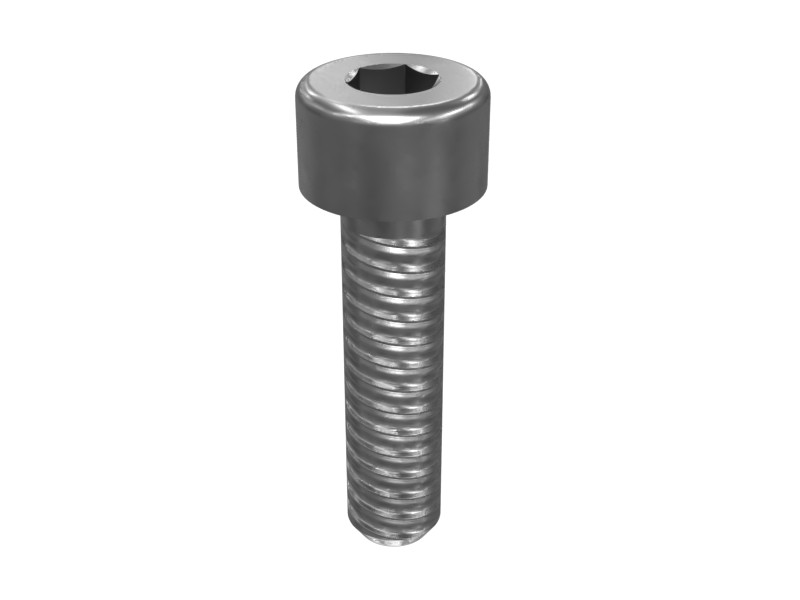

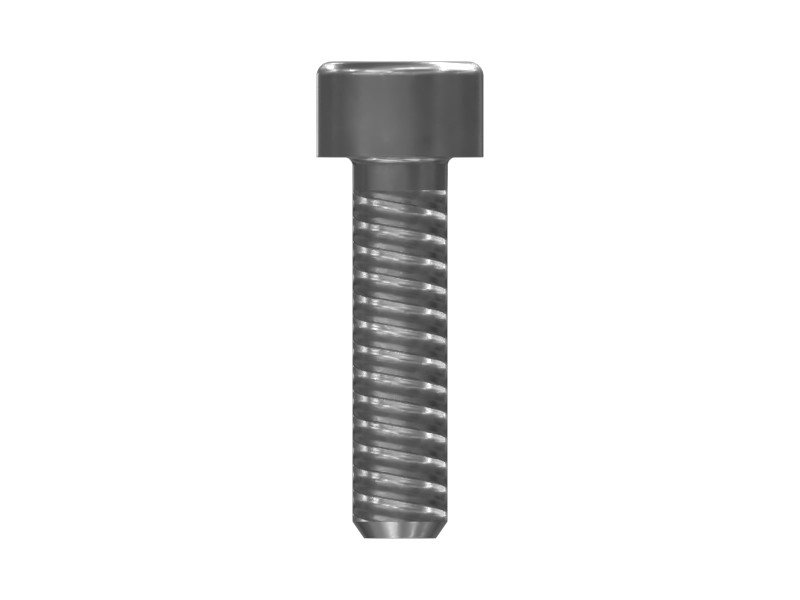

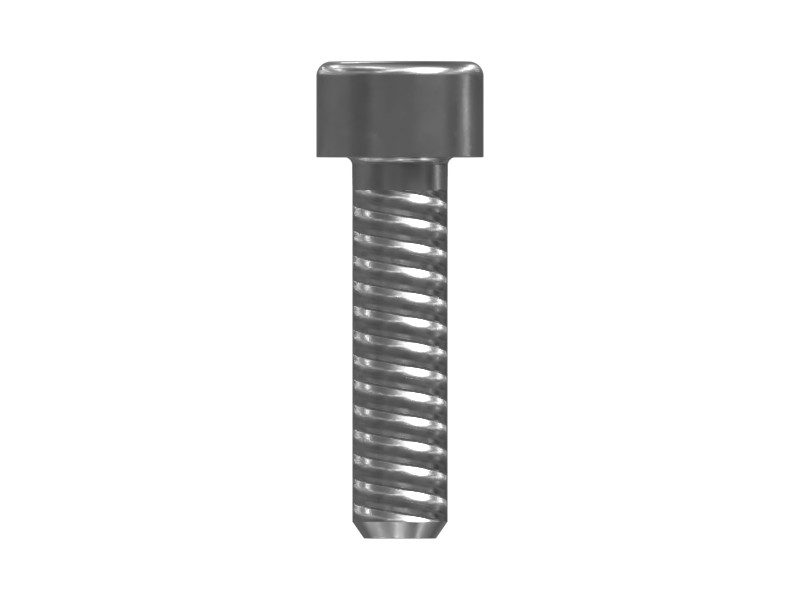

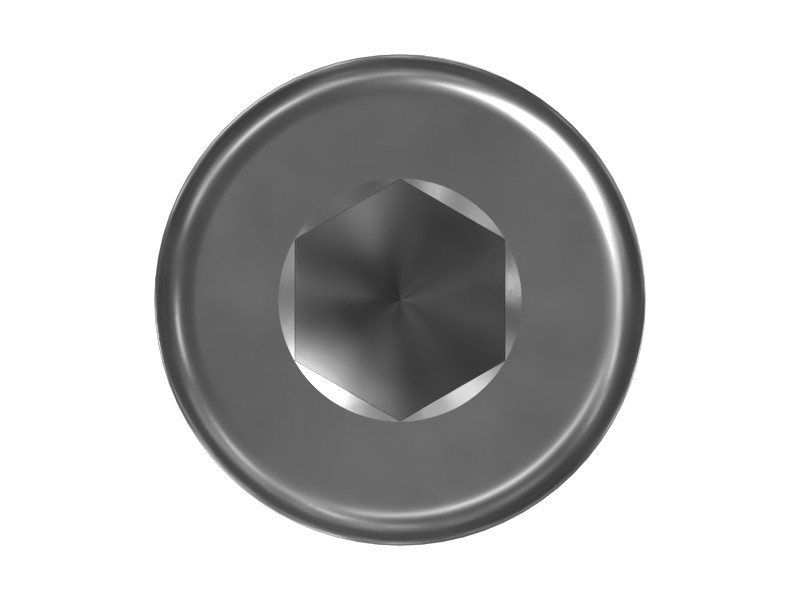

Socket head bolts are high-strength fasteners designed for heavy equipment and machinery. These bolts have a cylindrical socket head and can be tightened with a hex key.
Features
- Provides excellent wear, corrosion, and fatigue resistance.
- Tighten firmly to the correct torque.
Applications
Socket head bolts are used to mount fuel tanks and solenoid valves.
Specifications
| Thread Direction | RH |
|---|---|
| Diameter | 3.9 mm |
| Locking Feature | None |
| Thread Size | M4 mm (0 in) |
| Handle Length | 1.4 mm (0.055 in) |
| Class or Grade | ISO 898-1 Class 12.9 |
| Coating | Zinc Flake |
| Bolt Type | Socket Head |
| Bolt Length | 16 mm (0.63 in) |
| Thread Length | 16 mm (0.63 in) |
| Thread Size (Diameter × Pitch) | M4X0.7 mm |
Compatible Equipment
- Motor Graders: 14, 14M
- Track Loaders: 995, 994K
- Cold Planers: PL61
- Compactors: CB2.5 GC, CB2.7, CB2.9, CB2.5, CB2.7 GC, CC2.7 GC
- Compact Track Loaders: 299D3, 279D3
- Dozers: D5N, D6N
- Excavators: 3516E
- Wheel Loaders: 986K
- Off-Highway Trucks: 777, 793, 785, 777E, 794 AC, 793F, 797F, 796 AC, 789
- Asphalt Pavers: AP355F, AP300F
- Skid Steer Loaders: 299D3 XE, 262D3, 272D3 XE, 272D3, 289D3, 246D3, 249D3, 239D3, 226D3, 232D3, 236D3, 259D3, 242D3
Additional information
| Machine Model | 14, 14M, 226D3, 232D3, 236D3, 239D3, 242D3, 246D3, 249D3, 259D3, 262D3, 272D3, 272D3 XE, 279D3, 289D3, 299D3, 299D3 XE, 3516E, 777, 777E, 785, 789, 793, 793F, 794 AC, 796 AC, 797F, 986K, 994K, 995, AP300F, AP355F, CB2.5, CB2.5 GC, CB2.7, CB2.7 GC, CB2.9, CC2.7 GC, D5N, D6N, PL61 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Compact Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers |
| Part Source | Genuine OEM |
