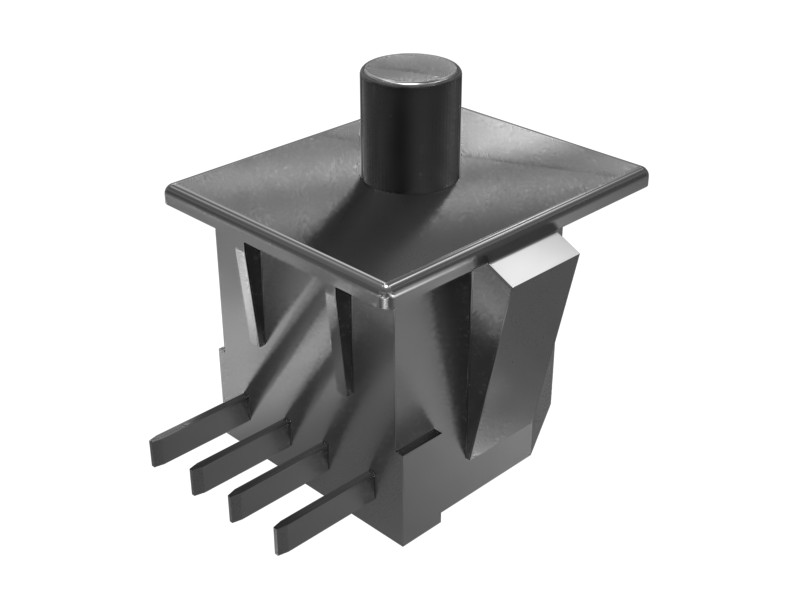

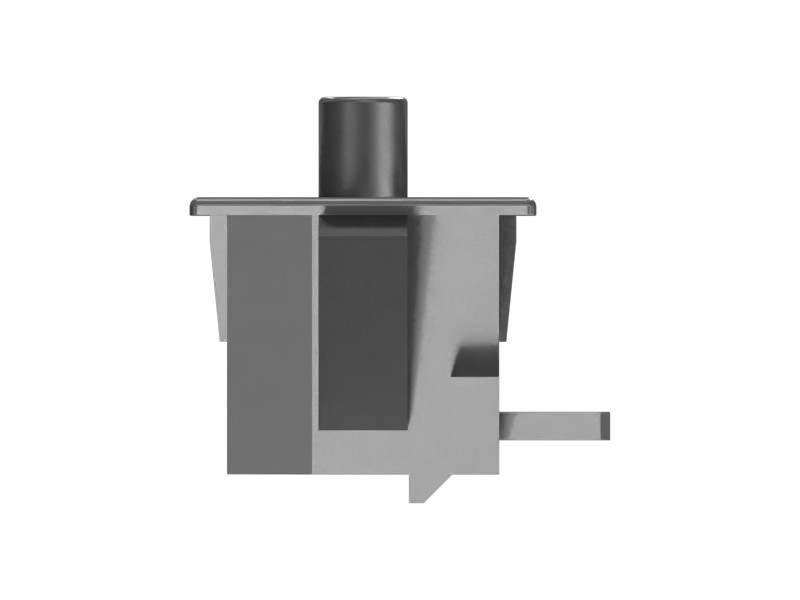

216-0814 Plunger Limit Switch
Cat® seat adjustment plunger limit switch with toggle switch, for convenient on/off control of the electrical function of the lumbar support seat pan
Description
Cat limit switches monitor mechanical parts and indicate whether a travel limit has been exceeded, in order to connect or disconnect an electrical connector. Designed to work together with other Cat parts to ensure your equipment reaches its full potential.
Features
- Sealed Plunger Switch
- Simple snap-in mounting configuration
- Double pole single throw
- Operating Voltage: 12-14 VDC
- Operating Current: 3 A
- 4-Pin DT connection
- Real-time electrical feedback
- Heavy-Duty Construction
- High accuracy and stable performance
- ROHS compliant
- Designed to work with other Cat parts to ensure the equipment reaches its full potential.
Applications
For operator cab seats in Cat vehicles. Refer to your Operation and Maintenance Manual or contact MECHSC for more information. Cat parts operate in heavy-duty applications in environments of severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, humidity, corrosion, and dust.
Specifications
| Voltage | 12-14 VDC (Operating) Volts |
|---|---|
| Length | 39.2 mm (1.54 in) |
| Width | 36 mm (1.41 in) |
| Height | 30 mm (1.18 in) |
Compatible Equipment
- Motor Graders: 16M, 14M
- Track Loaders: 963D, 953D
- Cold Planers: PL61
- Dozers: D7E, D5K LGP, D5K XL
- Wheel Loaders: 966H
Additional information
| Machine Model | |
|---|---|
| Equipment Type | Wheel Loaders, Track Loaders, Dozers, Motor Graders, Cold Planers |
| Part Source | Genuine OEM |
