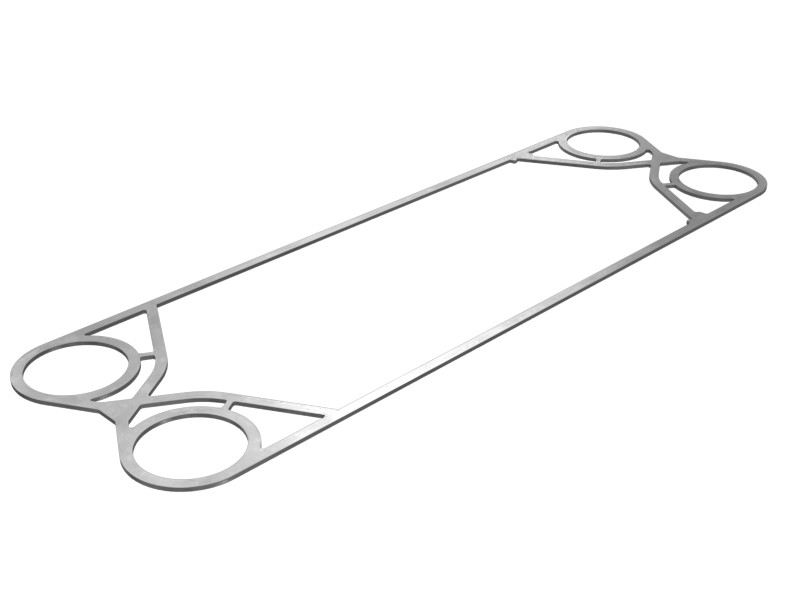

202-7536 Heat Exchanger End Plate Gasket
Cat® 4.6 mm Thick Rubber Heat Exchanger End Plate Gasket
Description
The heat exchanger end plate gasket is a gasket that covers the gap between two or more mating surfaces and is typically used to prevent leakage outward or inward from joined components under compression. Gaskets are typically made from flat sheet material, such as paper, rubber, silicone, metal, cork, felt, neoprene, nitrile, fiberglass, polytetrafluoroethylene (also known as PTFE or Teflon), or plastic polymers (such as polychlorotrifluoroethylene).
Features
- Comes with 4 holes of size 85 mm
- Made of nitrile rubber for good wear and fluid resistance.
- Shore A hardness of 75-83
Applications
The heat exchanger end plate gasket is used to fill the gap between the heat exchanger end plates to prevent leakage, and is also used in applications requiring vibration isolation, packing, noise, and noise reduction.
Specifications
| Height | 246.6 mm (9.71 in) |
|---|---|
| Hole Size | None mm (None in) |
| Length | 747.3 mm (29.42 in) |
| Style | Bead Type |
| Material | Nitrile Rubber |
| Thickness | 4.6 mm (0.18 in) |
| Weight | 0.05 kg (0.11 lb) |
Compatible Equipment
- Engines: C32, C18
