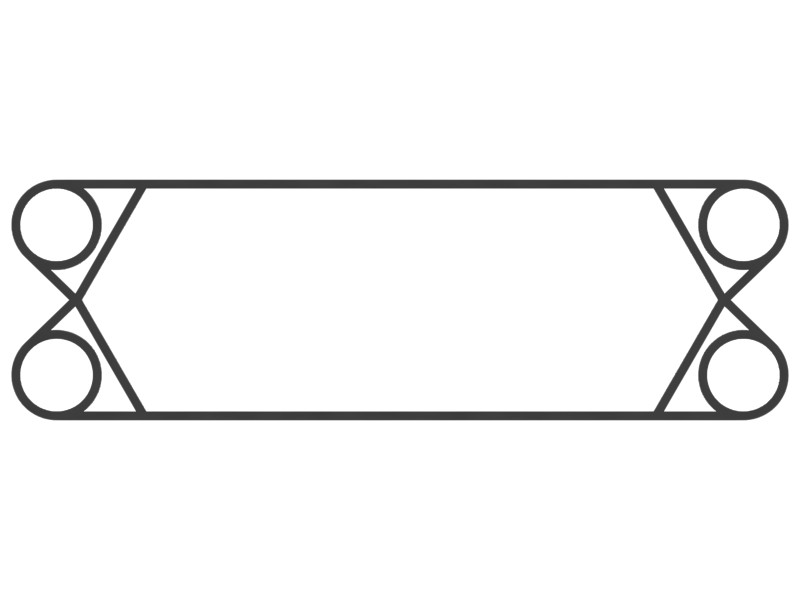

125-5595 4.4 mm Thick Plate Seal
Cat® 4.4 mm thick rubber plate seal used in heat exchangers
Description
The plate seal is a component used in heat exchangers to ensure that the fluids being processed do not leak or mix with other fluids. Typically made of a flexible material such as rubber or silicone, it is installed between the plates of the heat exchanger. The plate seal is designed to withstand high temperatures and pressures as well as exposure to a variety of chemicals and fluids, ensuring that it can withstand the harsh conditions of a heat exchanger.
Features
- Withstands pressure without deforming
- Shore A hardness of 75-83
- Provides a tight seal between plates, preventing fluid leakage
Applications
Plate seals are used to form an air-tight or water-tight seal between the plates in a heat exchanger.
Specifications
| Length | 751.8 mm (59.19 in) |
|---|---|
| Overall Length | 725.76 mm (28.573 in) |
| Material | NBR |
| Overall Width | 225.76 mm |

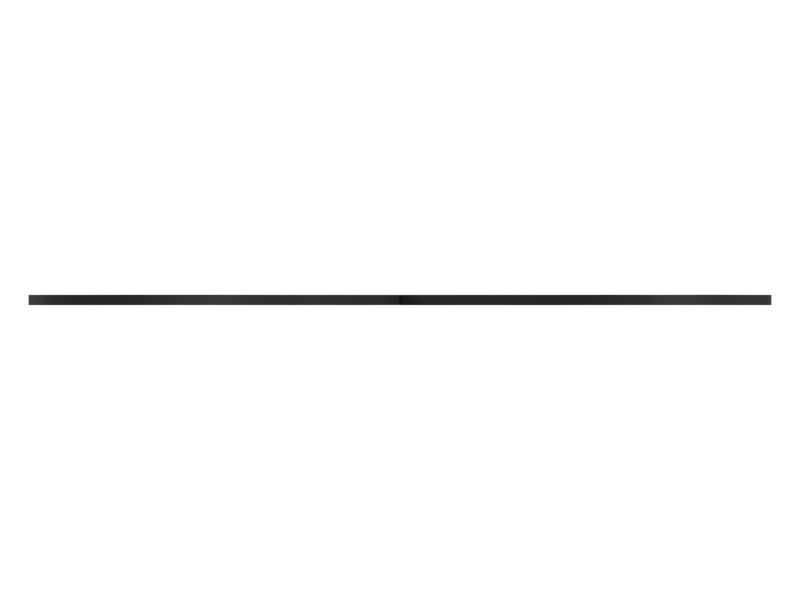

| Thickness | 4.4 mm (0.17 in) |
| Width | 251.8 mm (9.91 in) |
Compatible Equipment
- Engines: C32, C15, C18
