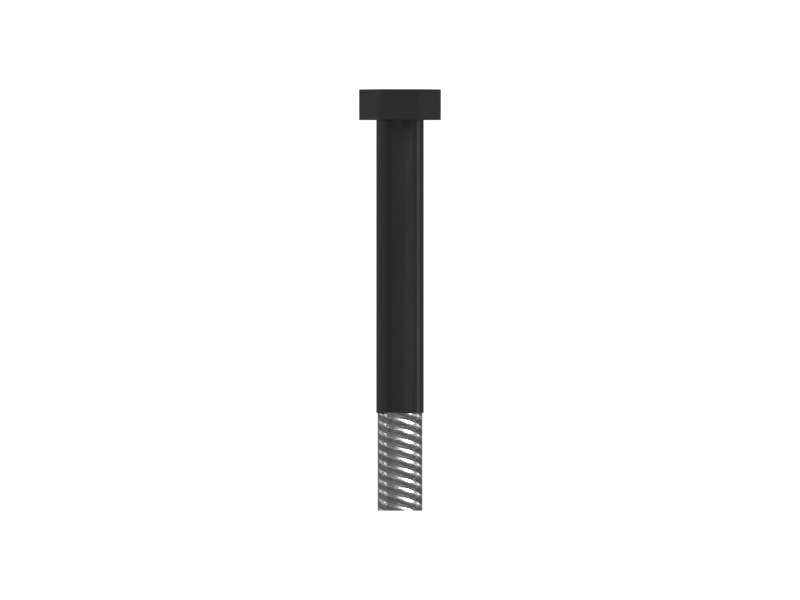

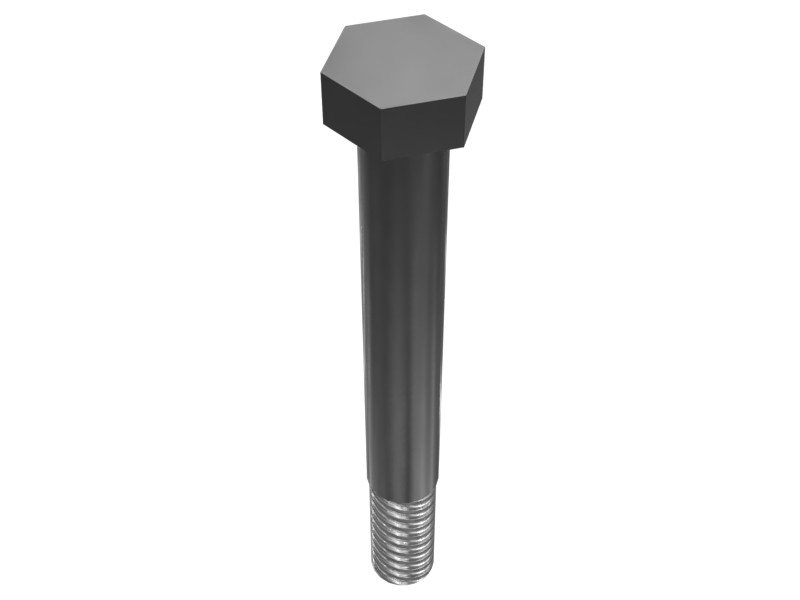

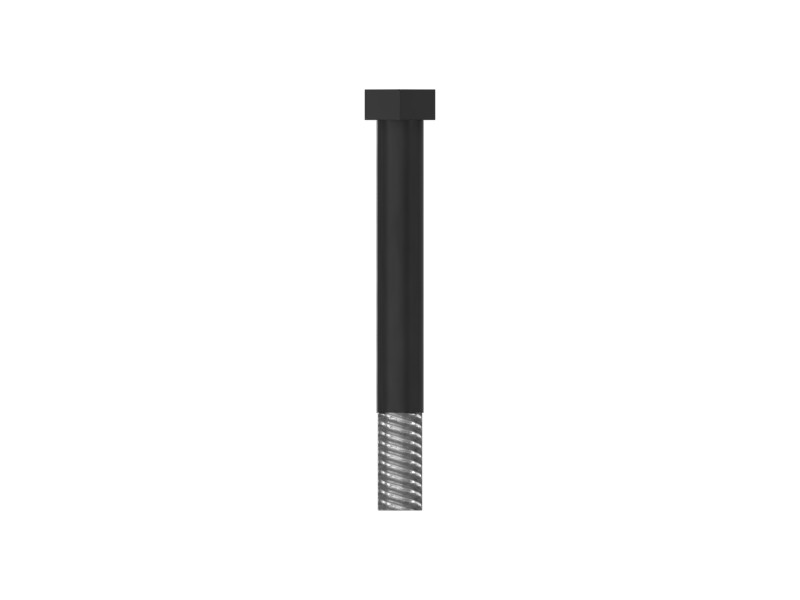

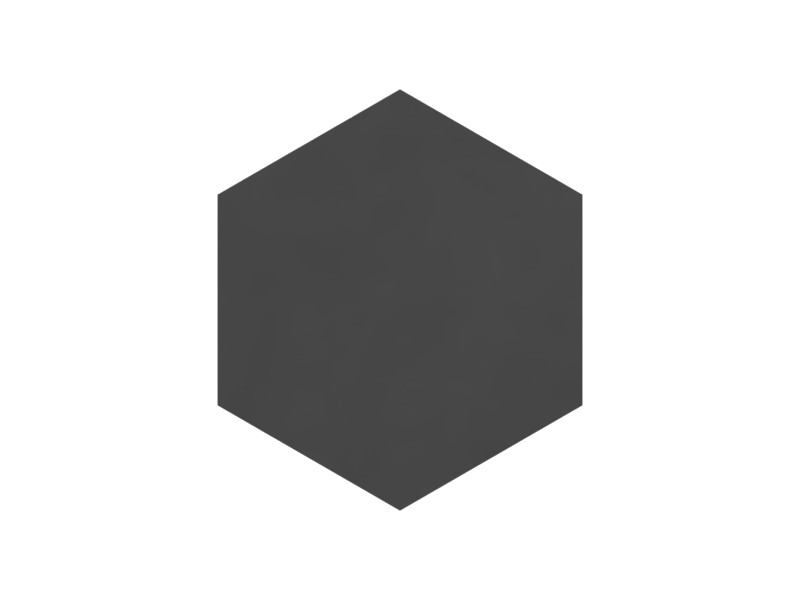

201-2836 Mj24X3 Hex Head Bolt
Cat® hex head bolts in bucket linkages are threaded fasteners used to connect and secure parts within the bucket linkage of heavy machinery.
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Thread Size | M24 mm (0 in) |
| Locking Feature | None |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size (Diameter × Pitch) | M24X3 mm |
| Bolt Length | 200 mm (7.874 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 152 mm (5.984 in) |
| Material | Steel |
Compatible Equipment
- Excavators: 330D L, 330 GC, 336, 333, 340, 324D L, 336D2 L, 330D, 329E L, 336D L, 336 GC, 336F LN, 336F L, 336E, 330C L, 324D, 330D2 L, 325D, 336F L XE, 329D L, 330C, 336E L, 336F, 336D2 XE, 325D L, 336E LH, 336E LN, 336D2 GC, 336E H, 330D2, 330GC, 329E, 326D L, 352F, 340D2 L, 385C L, 340D L, 345C L, 385C, 395, 330, 329D, 336D, 329D2 L, 336D2, 326D2 L, 326D2, 329D2
Additional information
| Machine Model | 324D, 324D L, 325D, 325D L, 326D L, 326D2, 326D2 L, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330C, 330C L, 330D, 330D L, 330D2, 330D2 L, 330GC, 333, 336, 336 GC, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 340D L, 340D2 L, 345C L, 352F, 385C, 385C L, 395 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
