201-1704 690 mm ID Sprocket

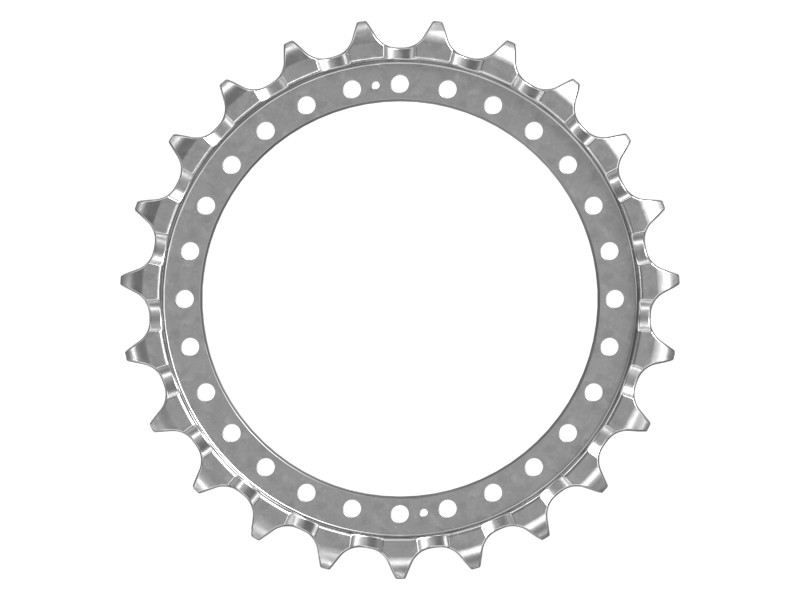

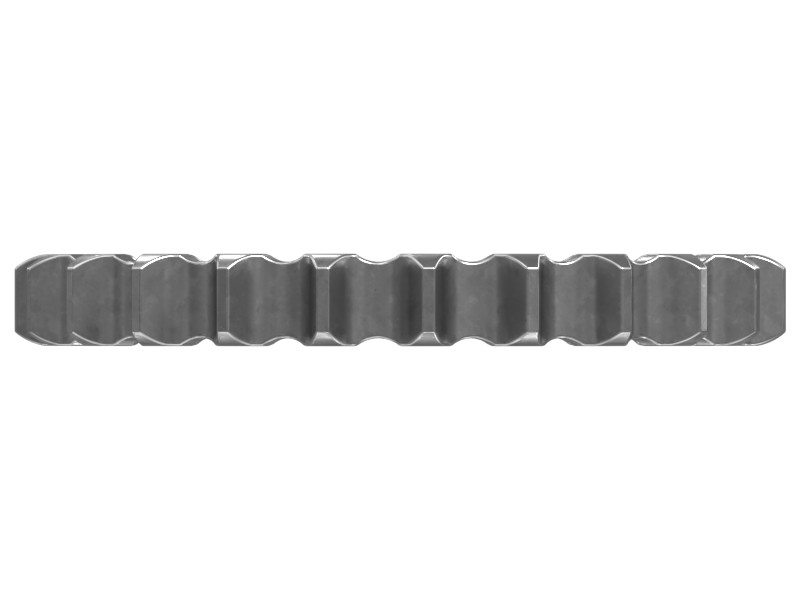

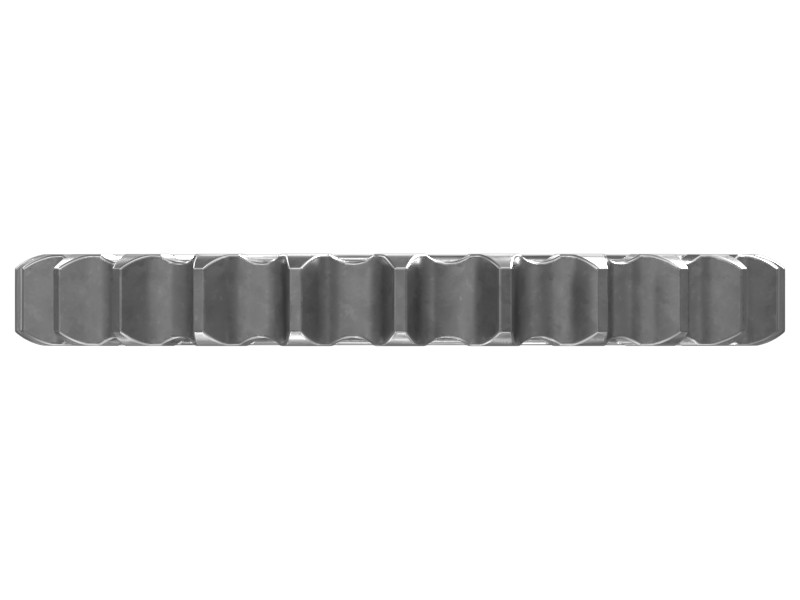

Cat® 690 mm ID final drive sprocket engages with the chain or track to transmit power from the engine to the wheels or tracks.
Description
Sprockets transmit engine power to the link group and engage it to produce motion.
Specifications
| Track Shoe Type | Rock/General Purpose |
|---|---|
| Undercarriage System | HD |
| Material | Alloy Steel |
| Sprocket Mounting Type | Offset |
| Backlash | 11 mm (0.433 in) |
| Material Type | Plain Steel |
| Bolt Circle Diameter | 750 mm (29.528 in) |
| Tooth Width | 115 mm (4.528 in) |
| Inside Diameter | 690 mm (27.165 in) |
| Bushing Radius | 43.1 mm (1.697 in) |
| Pressure Reducing | Yes |
| Noise Reduction Lugs | No |
| Number of Teeth | 23 |
| Number of Bolts | 28 |
| Pitch Diameter | 965 |
| Pitch | 260.35 mm (10.25 in) |
| Bolt Thread Size | M30 |
| Groove Angle | 62 degrees |
| Tip Diameter | 976 mm (38.425 in) |
| Packing Offset Diameter | 962 |
Compatible Equipment
- Excavators: 385B, 385C
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
