Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

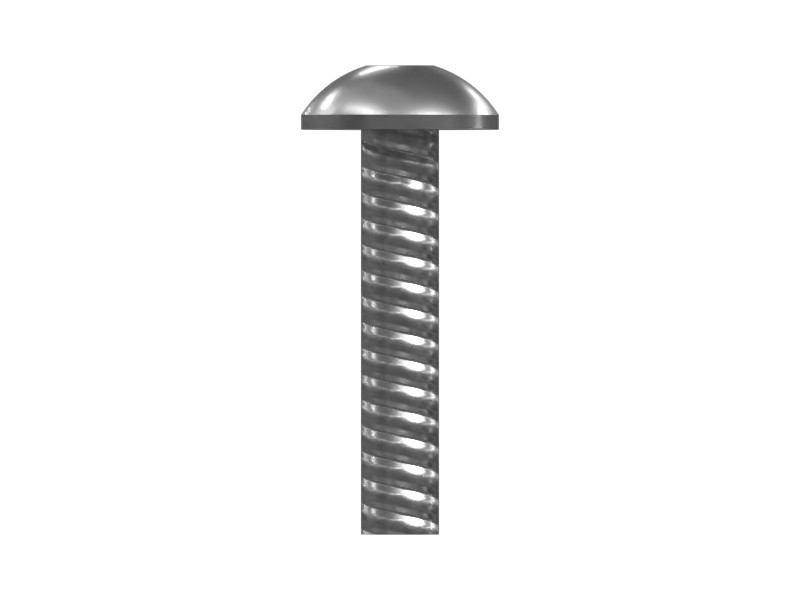

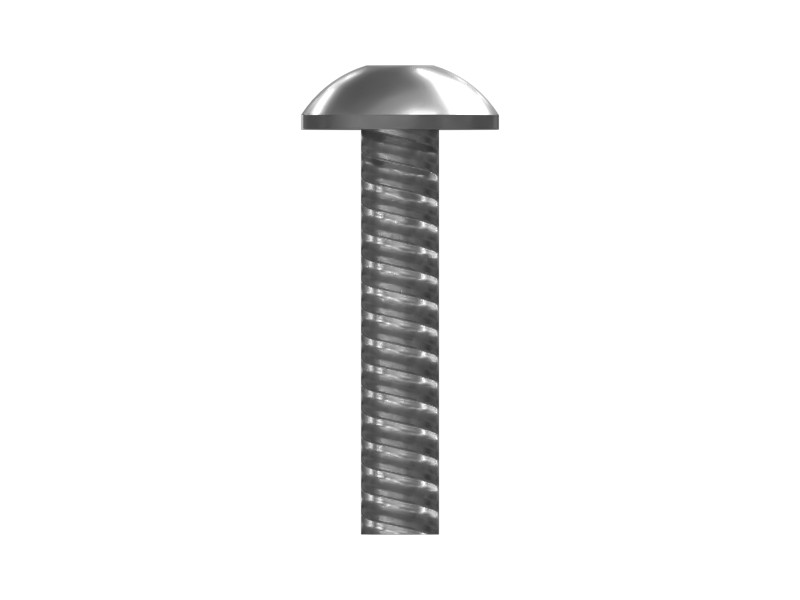

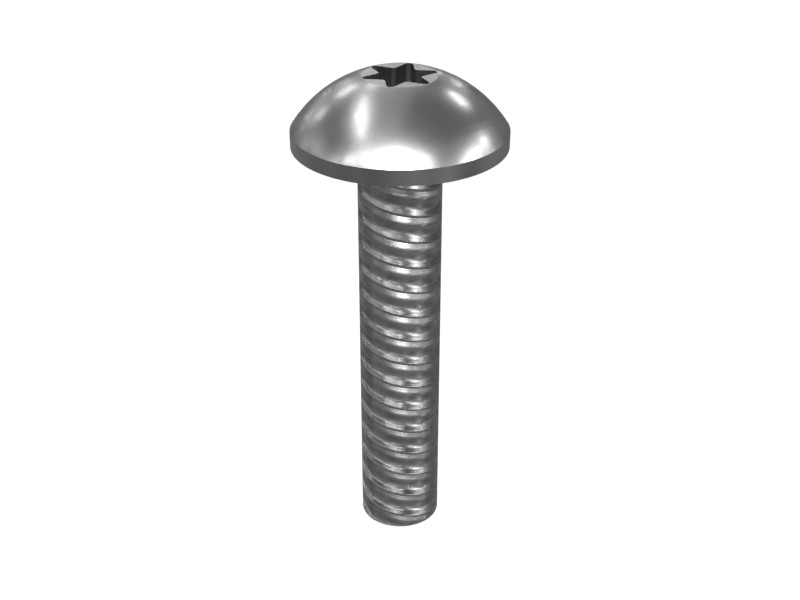

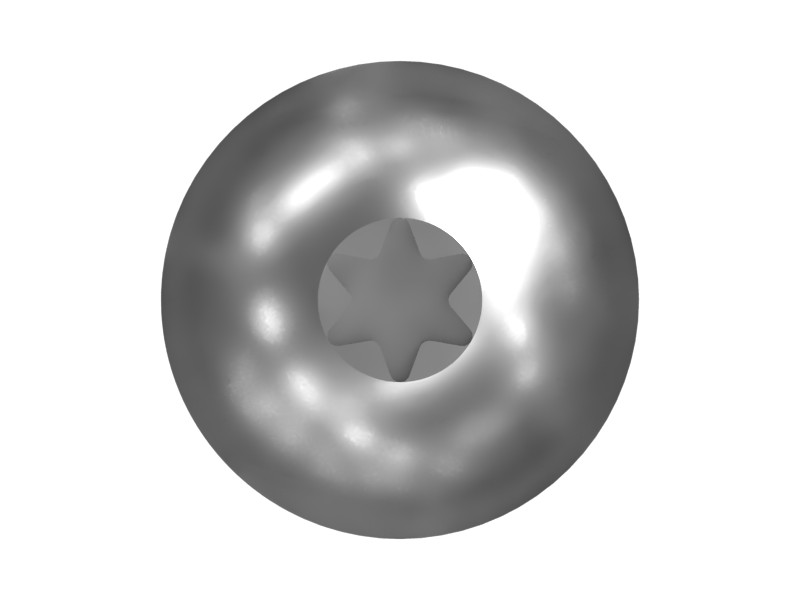

These are small internal drive screws.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Material | Corrosion Preventative Fluid |
|---|---|
| Bolt Type | Rounded Head (Pan) |
| Coating | Zinc Flake |
| Handle Length | 2.1 mm (0.08 in) |
| Pitch | 0.7 mm |
| Thread Direction | RH |
| Thread Size | M4 mm (0 in) |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M4x0.7 mm |
| Bolt Length | 20 mm (0.787 in) |
| Class or Grade | ISO 898-1 Class 12.9 |
Compatible Equipment
- Motor Graders: 14
- Track Loaders: 972, 982, 826K
- Compactors: 815, CS12, CW-34, CS11, CP11 GC, 824K, 834K, 825K, CP12 GC, CB-534D, CB-564D, CS12 GC, 816, 814, CB10
- Dozers: D7, D8, D6T
- Mini Excavators: 310, 308, 306.5, 306, 308.5
- Excavators: 6060, 320D FM, 6020B, 305 CR, 6040, 307.5, 305, 320D
- Wheel Loaders: 950, 980, 966, 836, RM400, 988K, 834
- Off-Highway Trucks: 797F, 793, 777, 794 AC, 793D, 793F, 796 AC, 789D, 798 AC, 775G, 785, 773
Additional information
| Machine Model | 14, 305, 305 CR, 306, 306.5, 307.5, 308, 308.5, 310, 320D, 320D FM, 6020B, 6040, 6060, 773, 775G, 777, 785, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 814, 815, 816, 824K, 825K, 826K, 834, 834K, 836, 950, 966, 972, 980, 982, 988K, CB-534D, CB-564D, CB10, CP11 GC, CP12 GC, CS11, CS12, CS12 GC, CW-34, D6T, D7, D8, RM400 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors |
| Part Source | Genuine OEM |
